Slow Speed with Braking Option
Figure 7.17 through Figure 7.21 show the different wiring for the
Slow Speed with Braking option.

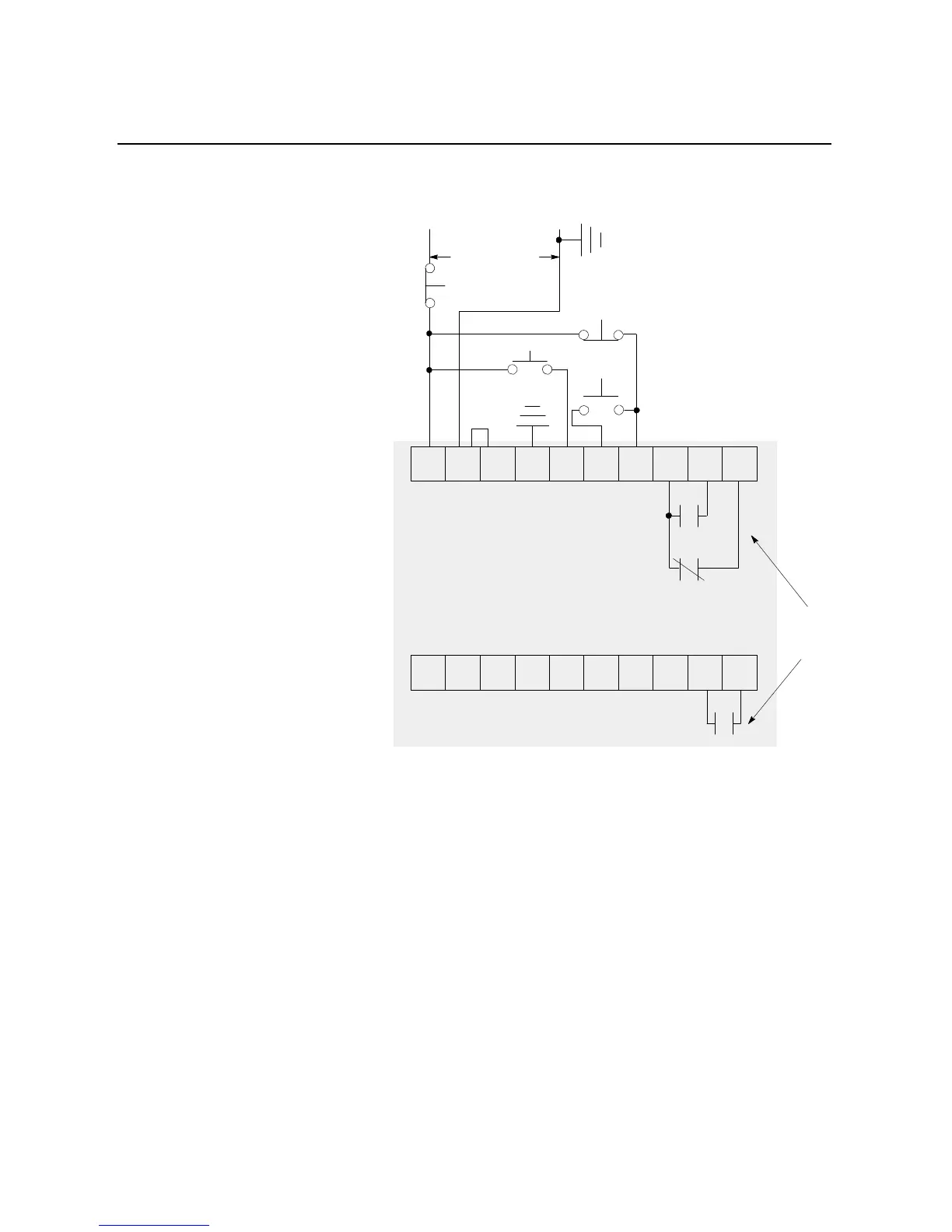

Figure 7.17 Typical Wiring Diagram for the Slow Speed with Braking Option
①
Customer supplied.
②
Refer to the controller nameplate to verify the rating of the control power input voltage.
Note: Refer to Chapter 3 for typical power circuits.
Brake
➀
Stop
➀
Control Power
➁
Slow Speed
➀
Start
➀
11 12 13 14 15 16 17 18 19 20
21 22 23 24 25 26 27 28 29 30
Internal
Auxiliary
Contacts
SMC Dialog Plus
Control Terminals
To Next Page
