Rockwell Automation SMC Dialog Plus

Wiring
3-11

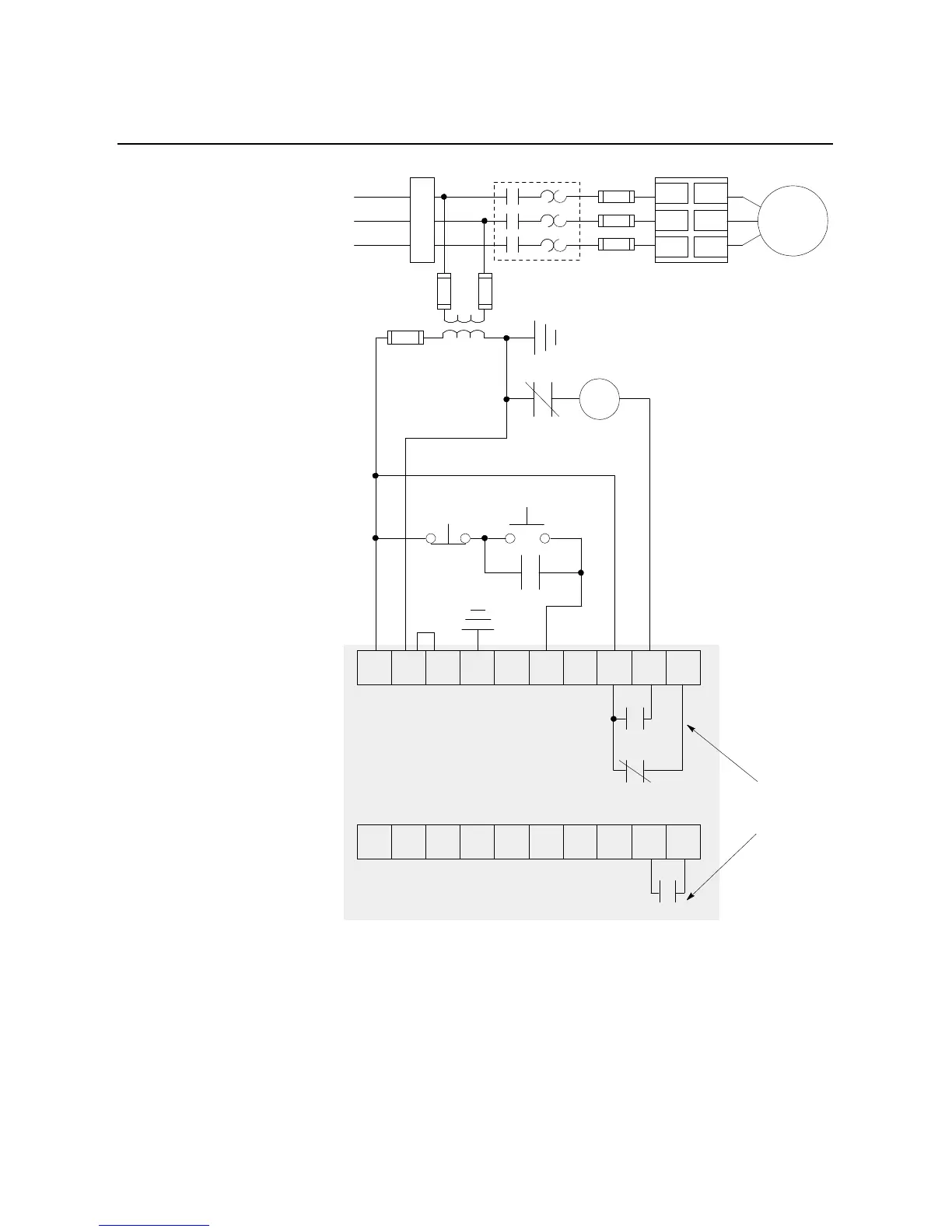

Figure 3.15 Typical Wiring Diagram for Retrofit Applications
①
Customer supplied.
②
Overload protection should be disabled in the SMC Dialog Plus controller.
③
Refer to the controller nameplate to verify the rating of the control power input voltage.
Stop
➀
M
➀
Start
➀
3-Phase
Input Power
Branch
Protection
➀
Fast-acting
SCR Fuses
(optional)
➀
M
➀
M
➀
➀
➀
➀ ➁
➀
➂
L1/1
L2/3
L3/5
OL
T1/2
T2/4
T3/6
11 12 13 14 15 16 17 18 19 20
21 22 23 24 25 26 27 28 29 30
Internal
Auxiliary
Contacts
Auxiliary contacts
set for Normal
SMC Dialog Plus
Controller
SMC Dialog Plus
Control Terminals
Existing Motor
Starter
➀
