Rockwell Automation SMC Dialog Plus User Manual

1-8
Product Overview
Protection and Diagnostics
(cont.)
Stall Protection and Jam Detection
The SMC Dialog Plus controller provides both stall protection and
jam detection for enhanced motor and system protection.
• Stall protection is user-adjustable from 0.0 to 10.0 seconds (in
addition to the ramp time programmed).
• Jam detection allows the user to determine the jam level (up to
999% of the motor’s FLC rating) and the delay time (up to 10.0
seconds) for application flexibility.

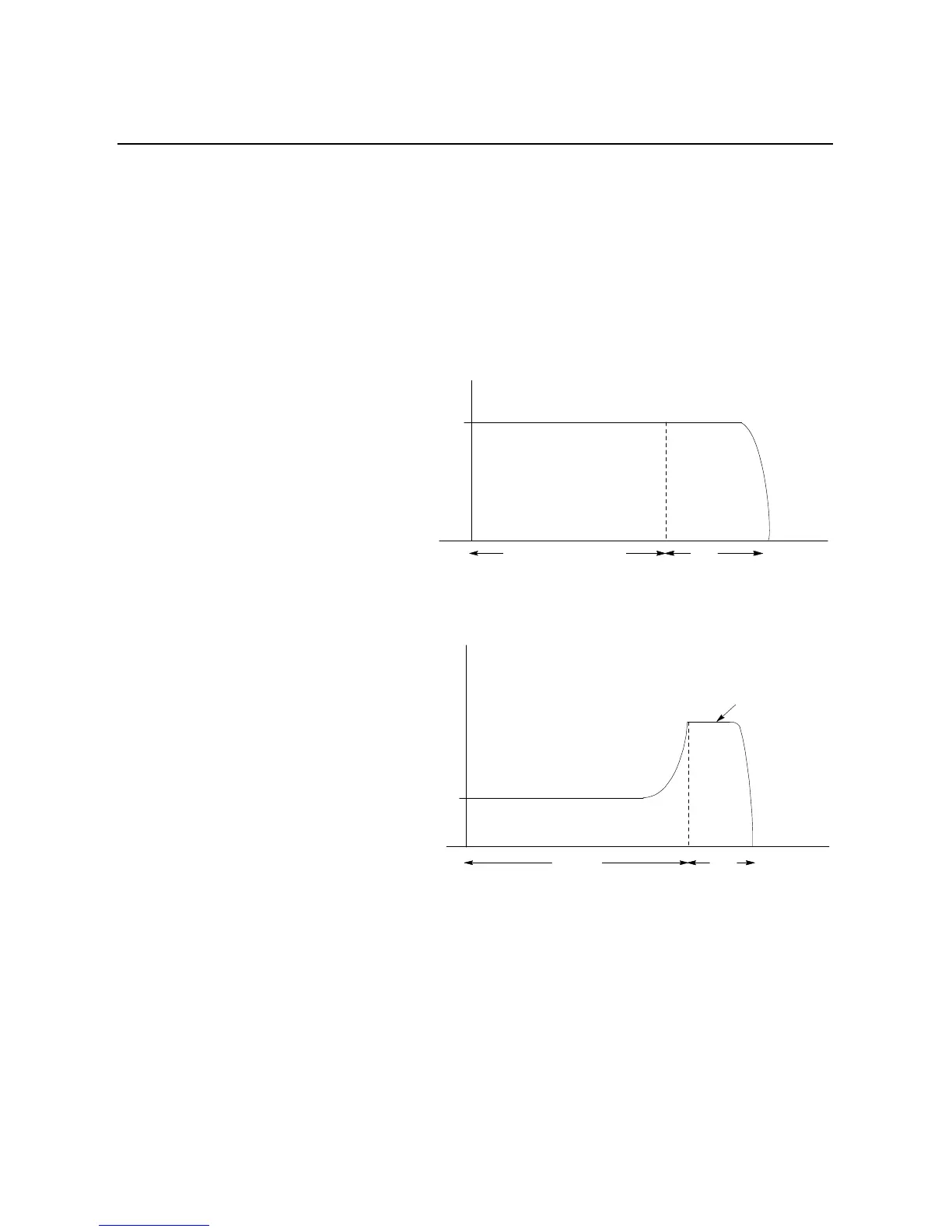

Figure 1.8 Stall Protection
Figure 1.9 Jam Detection
①
①
Jam detection is disabled during slow speed and braking operation.
Stall
600%
Percent
Full
Load
Current
Time (seconds)
Programmed Start Time
100%
Running Jam
Percent
Full
Load
Current
Time (seconds)
User Programmed Trip Level
