Rockwell Automation SMC Dialog Plus User Manual

Installation
2-13
Connecting the Human Interface Module to the Controller
Figure 2.7 shows the connection of the SMC Dialog Plus controller to
a human interface module. See Figure 3.14 on page 3-10 for the
control wiring diagram that enables start-stop control from a human
interface module.

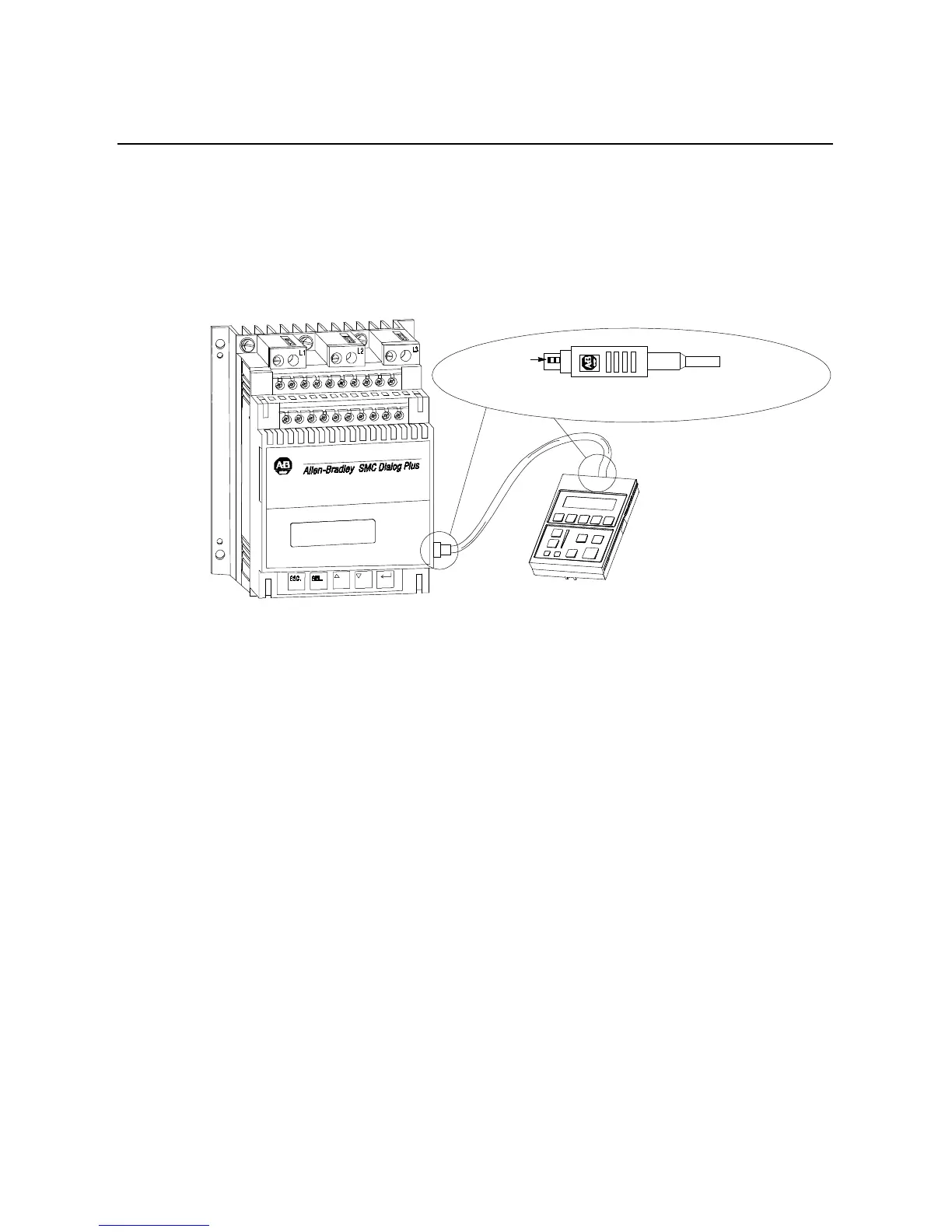

Figure 2.7 SMC Dialog Plus Controller with Human Interface Module
Control Enable
To enable motor control from a connected human interface module,
follow the procedure below with the connected human interface
module’s programming keys.
Note: Series A and Series B human interface modules require
different procedures. Be sure to use the correct table.
Human Interface Module
SMC Dialog Plus Controller
Pull back moving part (connector body) to disconnect
cable from the SCANport connection.
Bulletin 1202
Cable
Latching
Mechanism
1
11
21
12
22
13
23
14
24
15
25
16
26
17
27
18
28
19
29
20
30
3
5
