Options
7-5
Control Wiring for
SCANport Control
Refer to Figure 3.14 on page 3-10 for the applicable wiring diagram
to achieve start-stop control via the SCANport.
Soft Stop, Pump Control, and
SMB Smart Motor Braking Options
Figure 7.1 through Figure 7.6 show the different wiring for the Soft
Stop, Pump Control, and SMB Smart Motor Braking options.

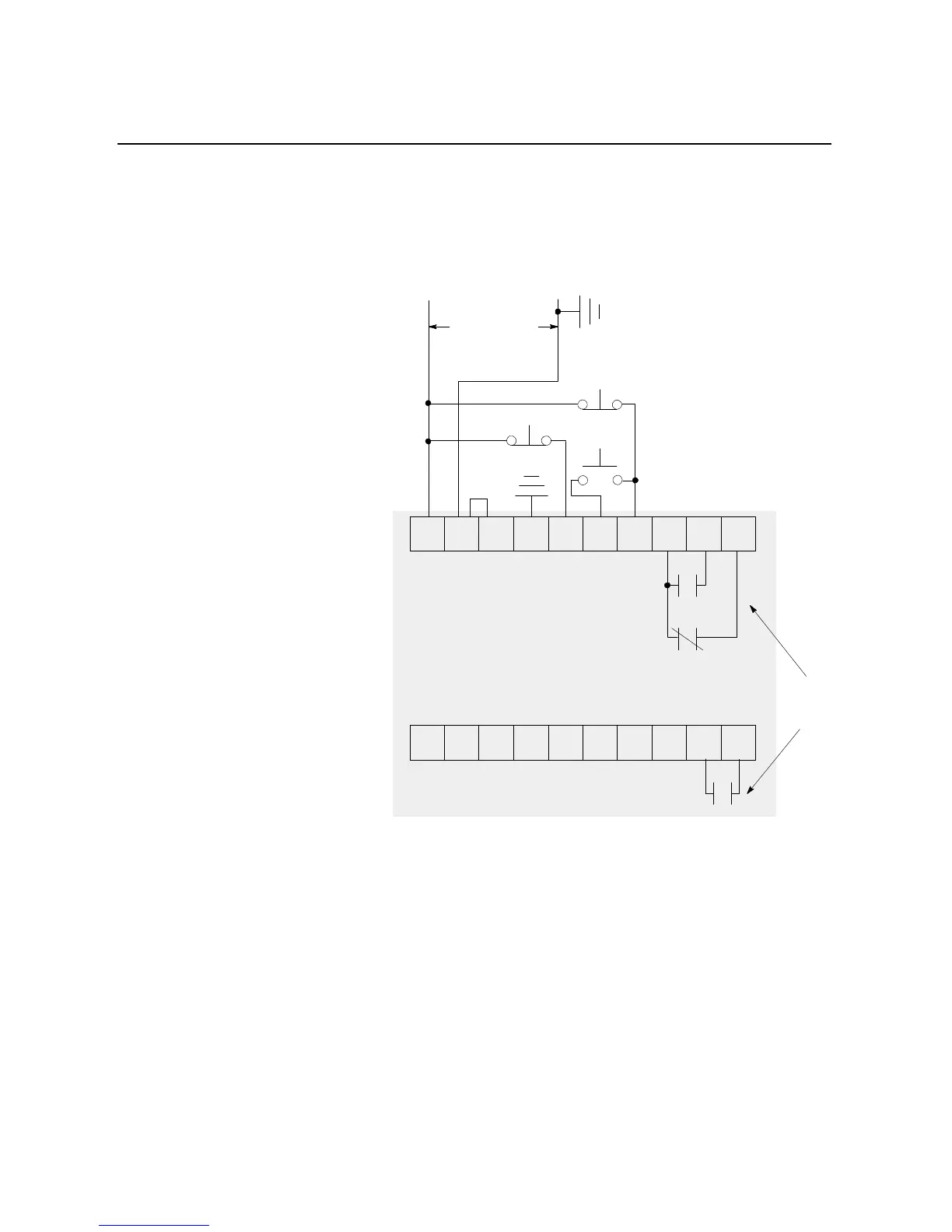

Figure 7.1 Typical Wiring Diagram
Customer supplied.
Soft Stop, Pump Stop, or Brake.
Refer to the controller nameplate to verify the rating of the control power input voltage.
Note: Refer to Chapter 3 for typical power circuits.
Stop
Control Power
Option Stop
➀ ➁
Start
11 12 13 14 15 16 17 18 19 20
21 22 23 24 25 26 27 28 29 30
Internal
Auxiliary
Contacts
SMC Dialog Plus
Control Terminals
