Standard Controller
Wiring Diagrams
Figure 3.11 through Figure 3.22 show typical wiring for the SMC
Dialog Plus controller.

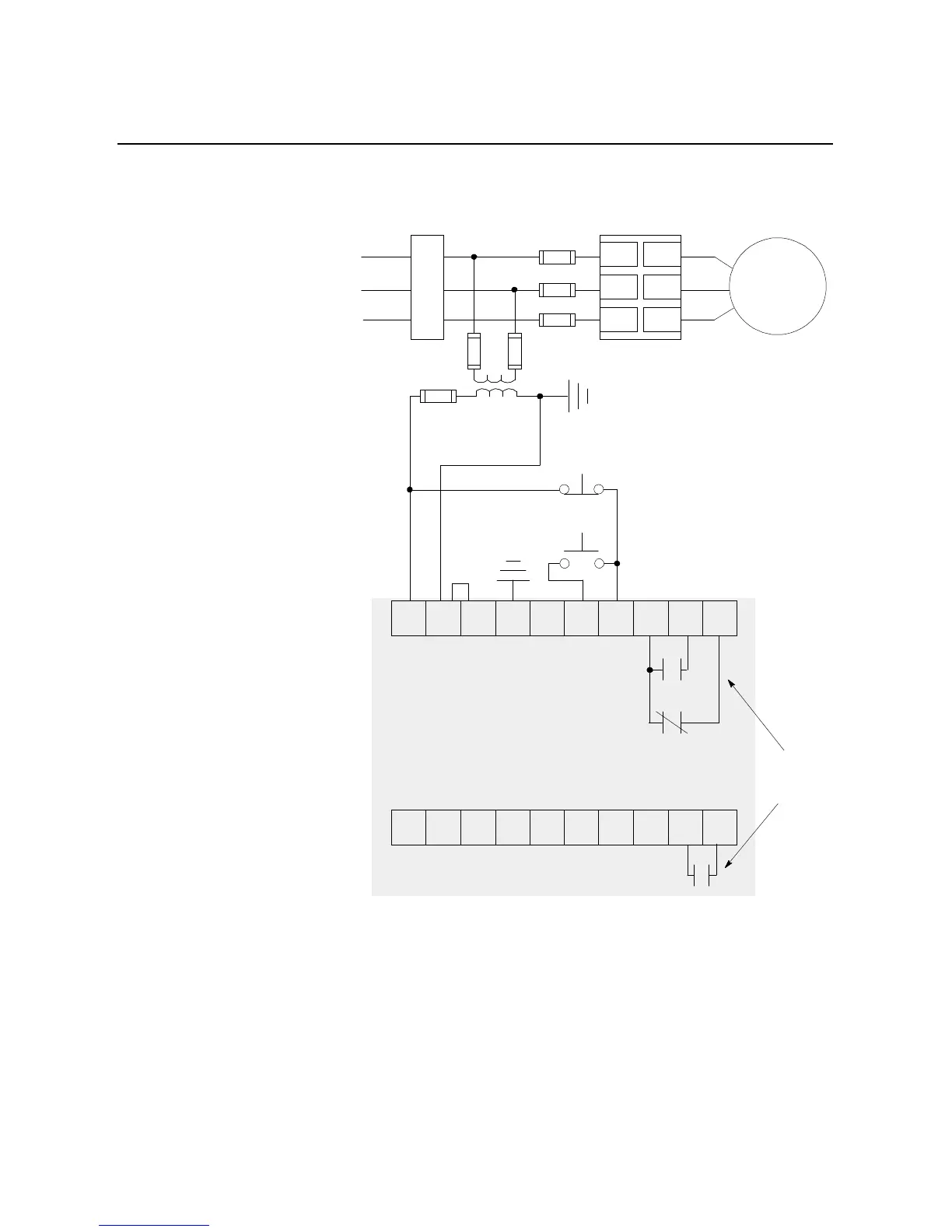

Figure 3.11 Typical Wiring Diagram for Standard Controller
①
Customer supplied.
②
Refer to the controller nameplate to verify the rating of the control power input voltage.
Stop
➀
11 12 13 14 15 16 17 18 19 20
21 22 23 24 25 26 27 28 29 30
Start
➀
Internal
Auxiliary
Contacts
SMC Dialog Plus
Control Terminals
3-Phase
Input Power
Branch
Protection
➀
Fast-acting
SCR Fuses
(optional)
➀
SMC Dialog Plus
Controller
M
➀
L1/1
L2/3
L3/5
T1/2
T2/4
T3/6
➀
➀
➀
➁
