Rockwell Automation SMC Dialog Plus User Manual

Installation
2-7

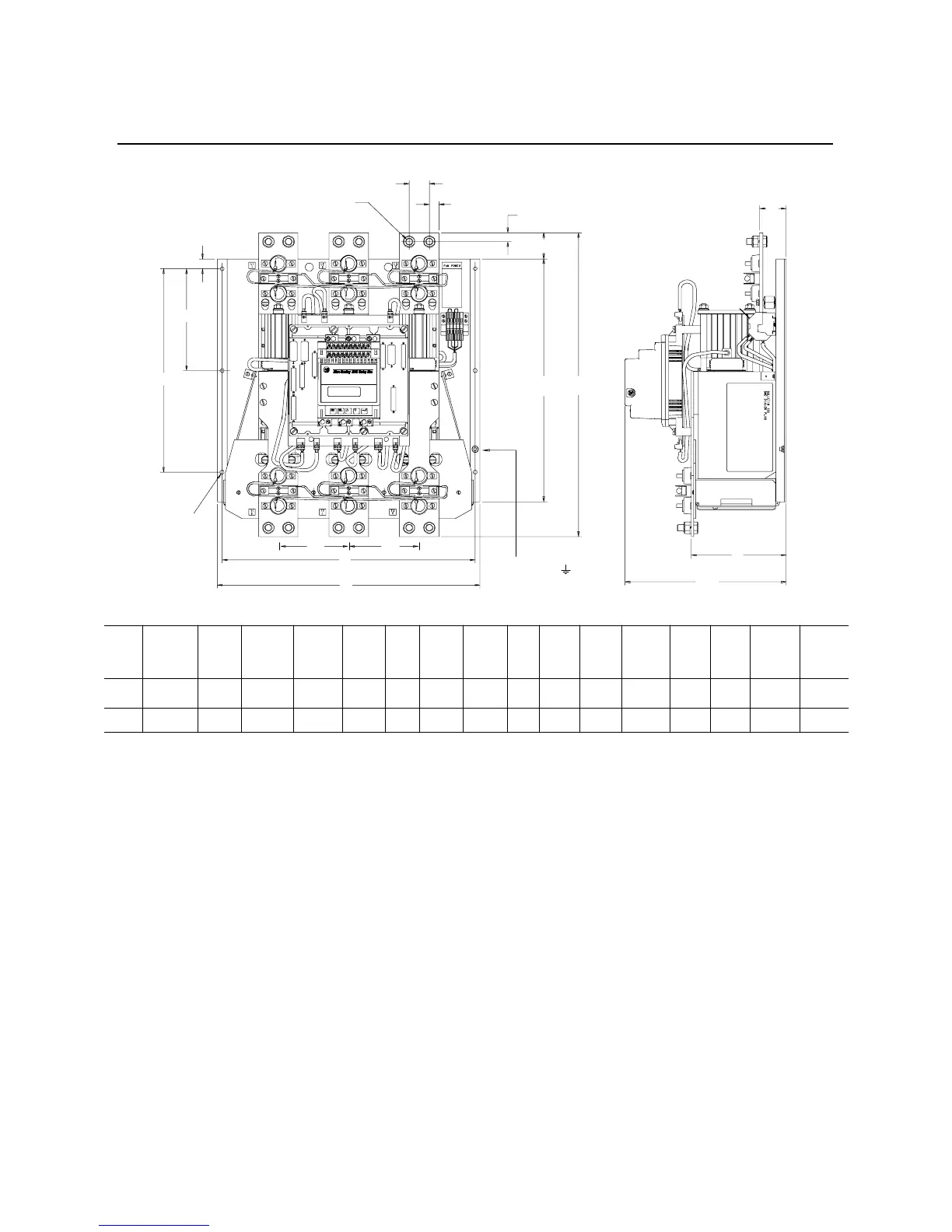

Figure 2.4 Dimensions: 500 Amp Controller
All dimensions are approximate and are not intended for manufacturing purposes. Refer to the nearest Allen-Bradley sales office for complete dimension drawings.
Unit
A
Height
B
Width
C
Depth
DEFGHJKLMNPQ
Approx.
Ship.
Wt.
mm 588.4 508 310.7 183 51.4 50.8 469.9 489 19 196.9 393.7 38.9 18.6 17.5 136 40.8 kg
in. 23-11/64 20 12-15/64 7-13/16 2-1/32 2 18-1/2 19-1/4 3/4 7-3/4 15-1/2 1-17/32 47/64 11/16 5-11/32 90 lbs.
A
G
F
P
N
M
J
K
L
H
B
C
D
E
.312 in. (7.9 mm)
6 Mtg. Holes
.531 in. (13.5 mm)
for 1/2 Bolts Typ.
Ground Nut
(1/4-20)
Q Q

Rockwell Automation SMC Dialog Plus Specifications

General

Brand	Rockwell Automation
Model	SMC Dialog Plus
Category	Controller
Language	English
