7-10
Options
Soft Stop, Pump Control, and
SMB Smart Motor Braking Options
(cont.)

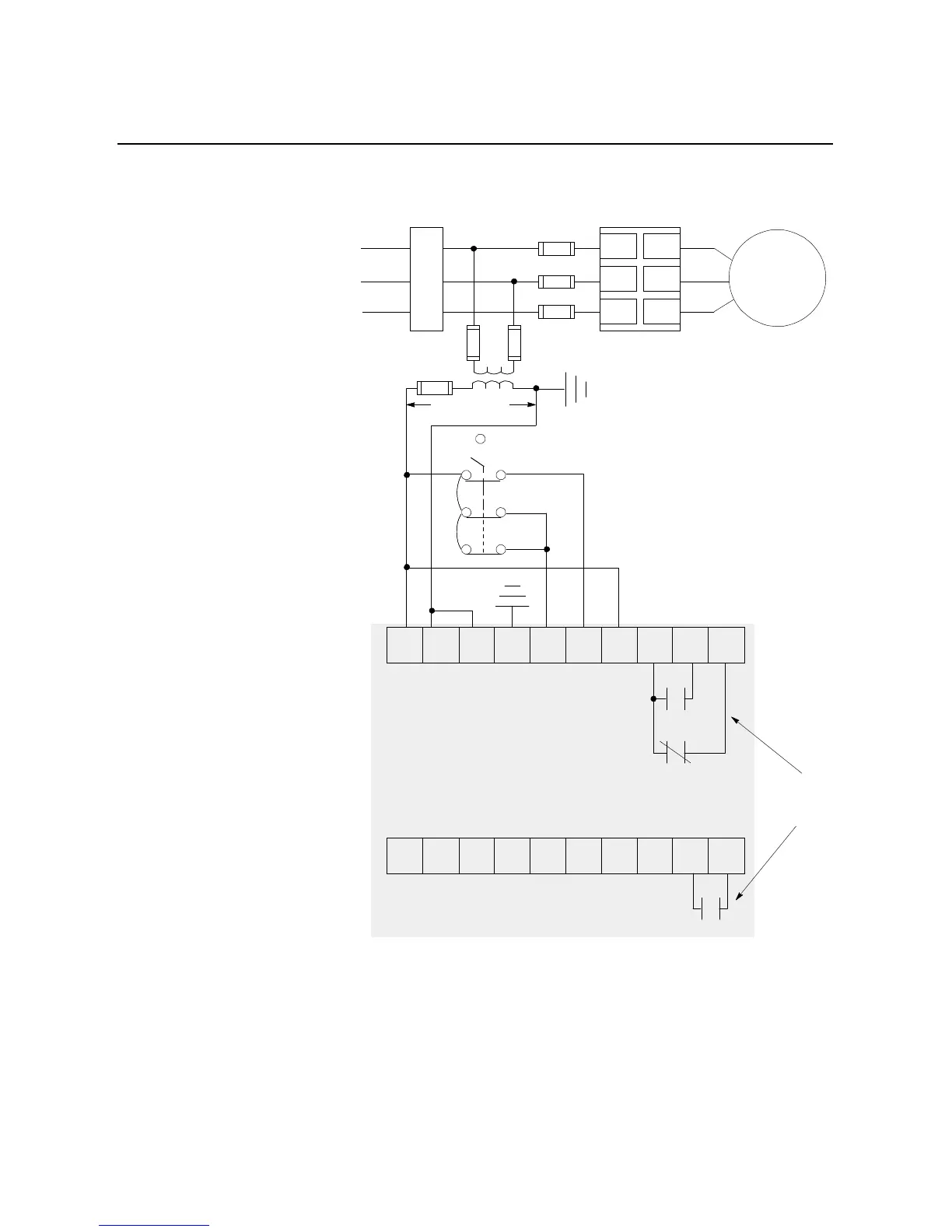

Figure 7.6 Typical Wiring Diagram for Hand-Off-Auto (SCANport) Control
①
Customer supplied.
②
Refer to the controller nameplate to verify the rating of the control power input voltage.
HA
xoo
xoo
oox
3-Phase
Input Power
Branch
Protection
➀
Fast-acting
SCR Fuses
(optional)
➀
SMC Dialog Plus
Controller
Control Power
100-240 VAC
M
➀
➀
➀
➀
L1/1
L2/3
L3/5
T1/2
T2/4
T3/6
11 12 13 14 15 16 17 18 19 20
21 22 23 24 25 26 27 28 29 30
Internal
Auxiliary
Contacts
SMC Dialog Plus
Control Terminals
