2-16
Installation
Communication
Modules
The Bulletin 1203 communication module allows the user to connect
the SMC Dialog Plus controller to various networks and
communication protocols. The figure below shows how the controller
and the communication module connect.

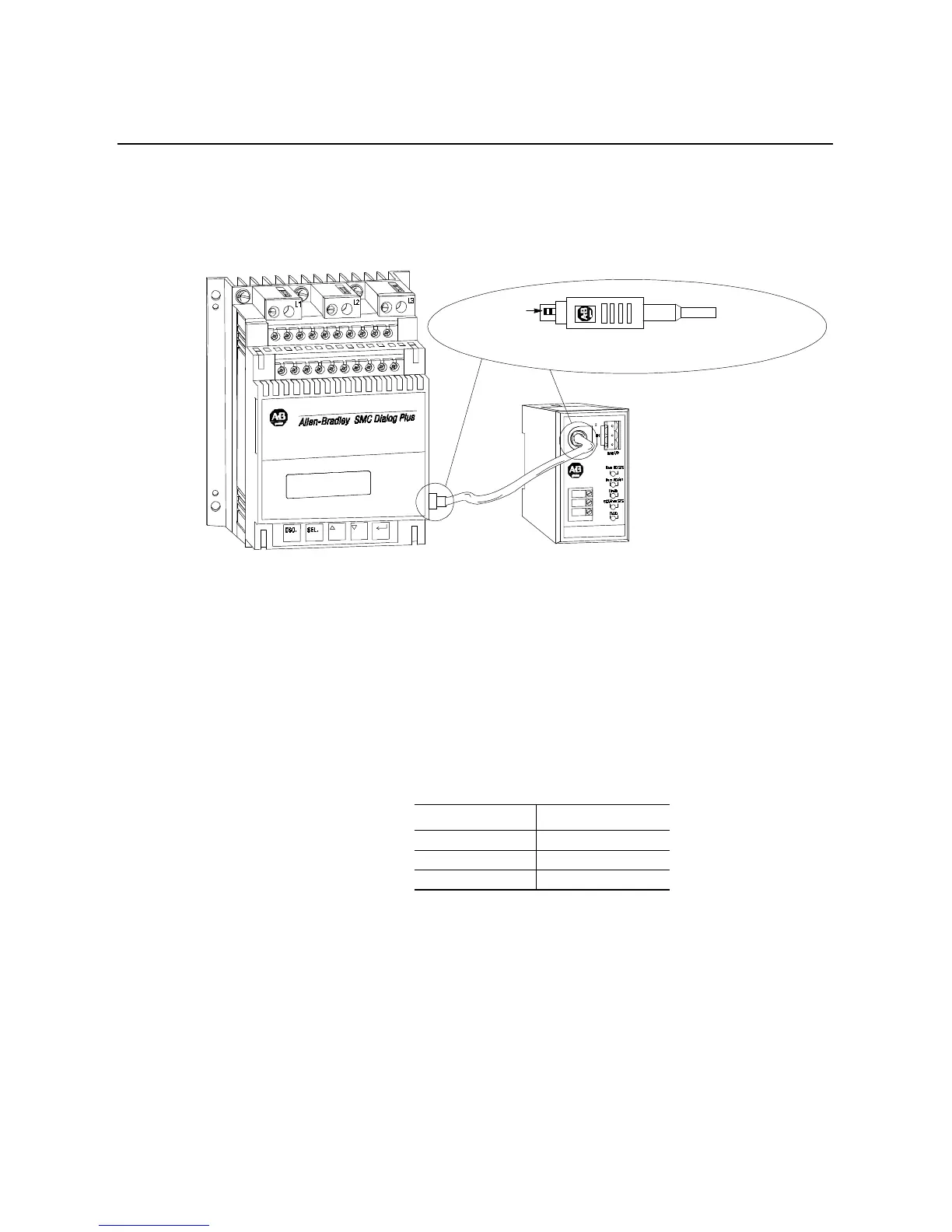

Figure 2.8 SMC Dialog Plus Controller with Communication Module
Converter Modules
The Bulletin 825 converter module provides three-phase current
feedback to the SMC Dialog Plus controller for metering and
overload protection during phase rebalance and bypass operation.
Select the converter module based on the motor full load current
(FLC) rating. Table 2.A details the information for proper selection.
Table 2.A Converter Module Selection Guide
Communication Module
SMC Dialog Plus Controller
Pull back moving part (connector body) to disconnect
cable from the SCANport connection.
Bulletin 1202
Cable
Latching
Mechanism
V+
V-
G
1
11
21
12
22
13
23
14
24
15
25
16
26
17
27
18
28
19
29
20
30
3
5
Motor FLC Range Cat. No.
1–12.5A 825-MCM20
9–100A 825-MCM180
64–360A 825-MCM630
