Options
7-9

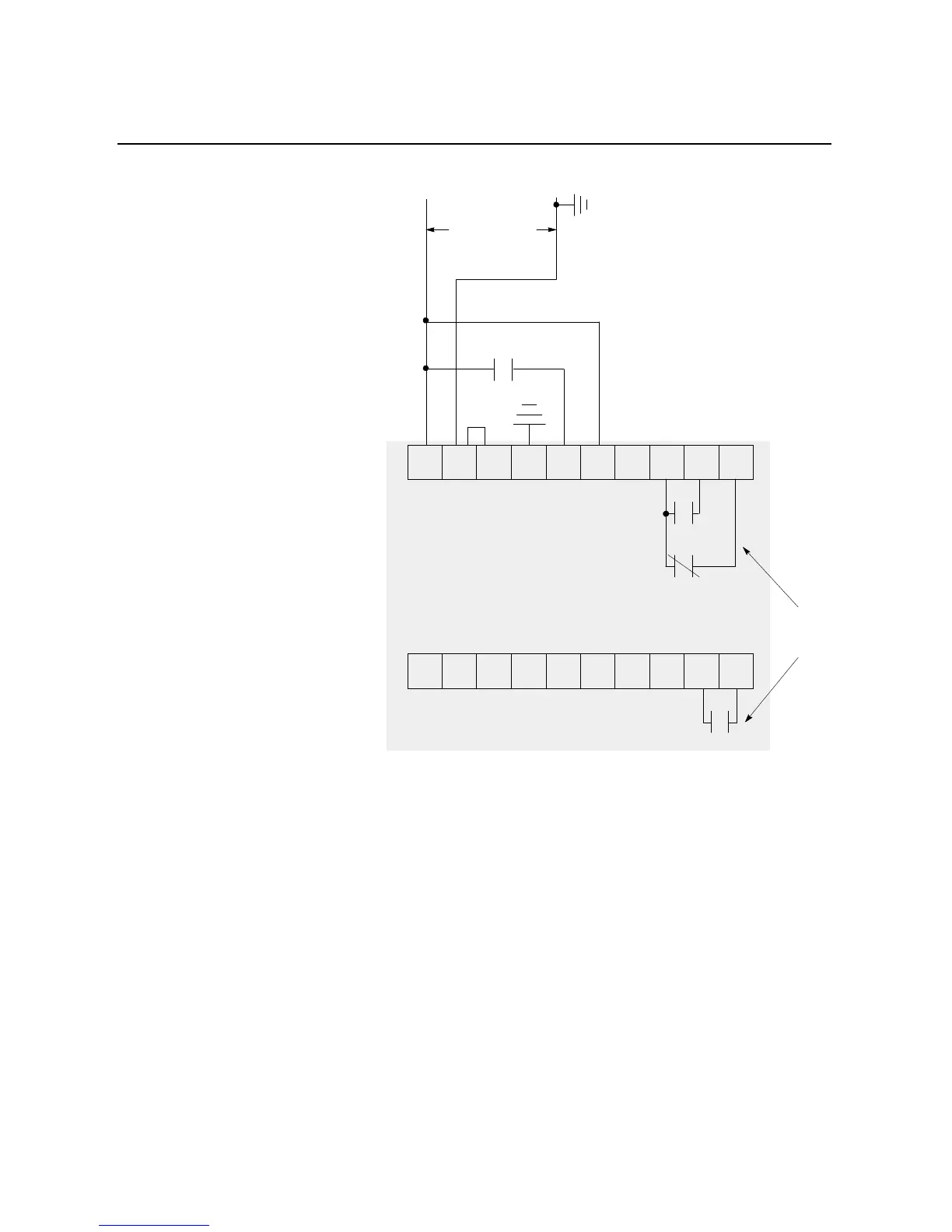

Figure 7.5 Typical Wiring Diagram for Two-wire Control or Programmable
Controller Interfacing
①
Customer supplied.
②
Refer to the controller nameplate to verify the rating of the control power input voltage.
Notes: (1) Refer to Chapter 3 for typical power circuits.
(2) The OFF state leakage current for a solid-state device must be less than 6 mA.
Control Power
➁
Two-wire device
➀
11 12 13 14 15 16 17 18 19 20
21 22 23 24 25 26 27 28 29 30
Internal
Auxiliary
Contacts
SMC Dialog Plus
Control Terminals
To Next Page
