Serial Communications
DeviceNet Examples
Example #1 SLC 500 Controller with Explicit Messaging
This example demonstrates discreet control of the SMC Dialog Plus
controller in addition to use of the explicit messaging function for
transferring parameter data to an SLC500. The DeviceNet Manager
(revision 3.001) software is used in this example for network and
node configuration. RSView™ is used as the man-machine interface
in this example. Many of the selections shown are example-specific.
Some changes by the user may be necessary to apply the concepts of
this example to a specific application.
System Configuration
Notes: 1) 1747-SDN scanner firmware revision 3.01 or later
required.
2) 1203-GK5 module firmware revision 1.9 or later required.

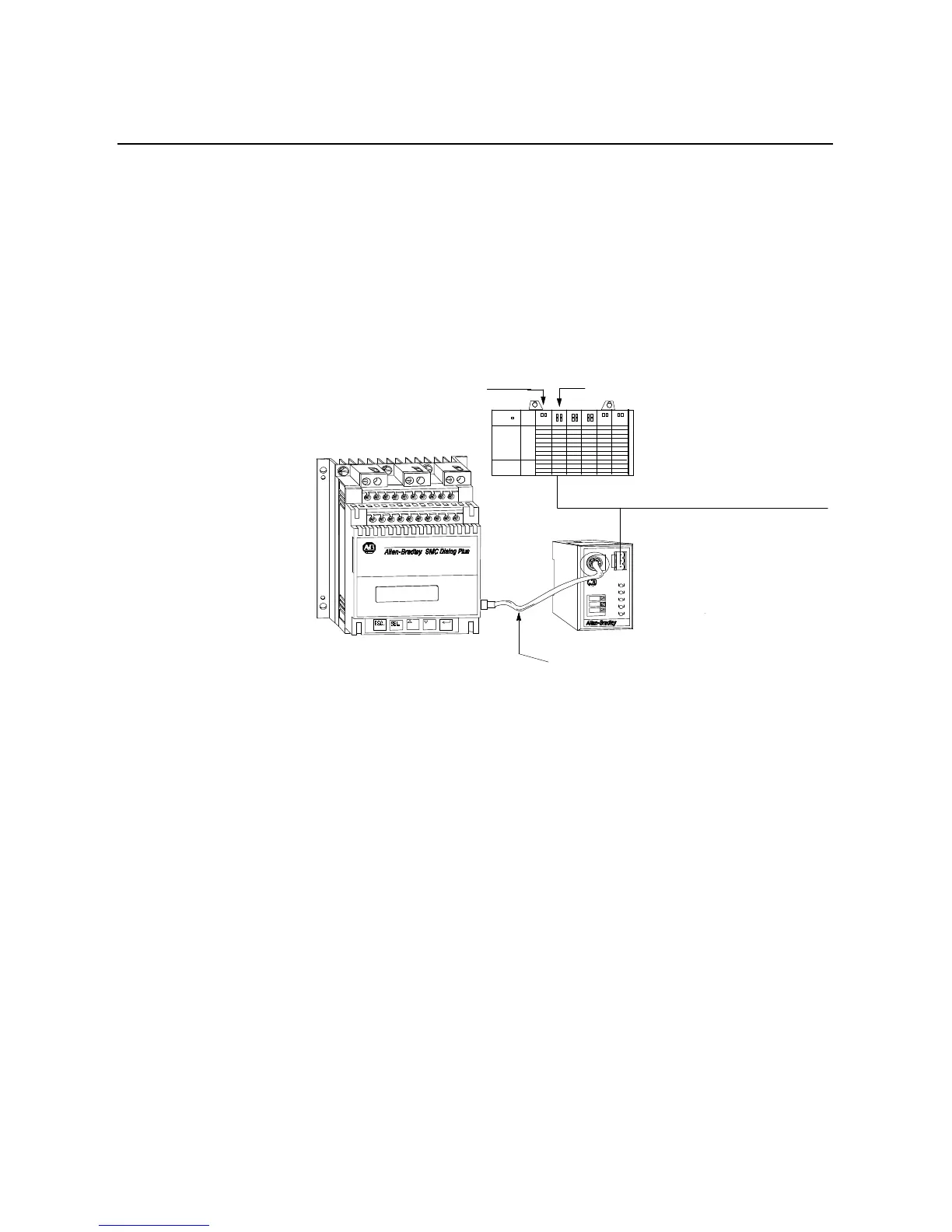

1203-GK5 Communication Module Switch Settings
The following information is provided to explain the required 1203-
GK5 communication module switch settings for this example. Refer
to the 1203-GK5 manual for further details related to the switch
settings.
SLC 5/02 or higher 1747-SN Scanner
Remote I/O Link
SMC Dialog Plus
Controller
1203-GD1
Rem I/O
Rem I/O STS
Rem I/O ACT
Health
SCAN bus STS
FA ULT
2
SH
1
V+
V-
L1
1
L2
3
L3
5
11
21
12
22
13
23
14
24
15
25
16
26
17
27
18
28
19
29
20
30
G
Communication Module
Bulletin 1202 SCANport Cable
4 SDN Scanner
DeviceNet trunk
GK5
