Product Overview
1-11
Communication
A serial interface port (called SCANport™) is provided as standard,
which allows connection to the Bulletin 1201 human interface
modules and the Bulletin 1203 communication modules.

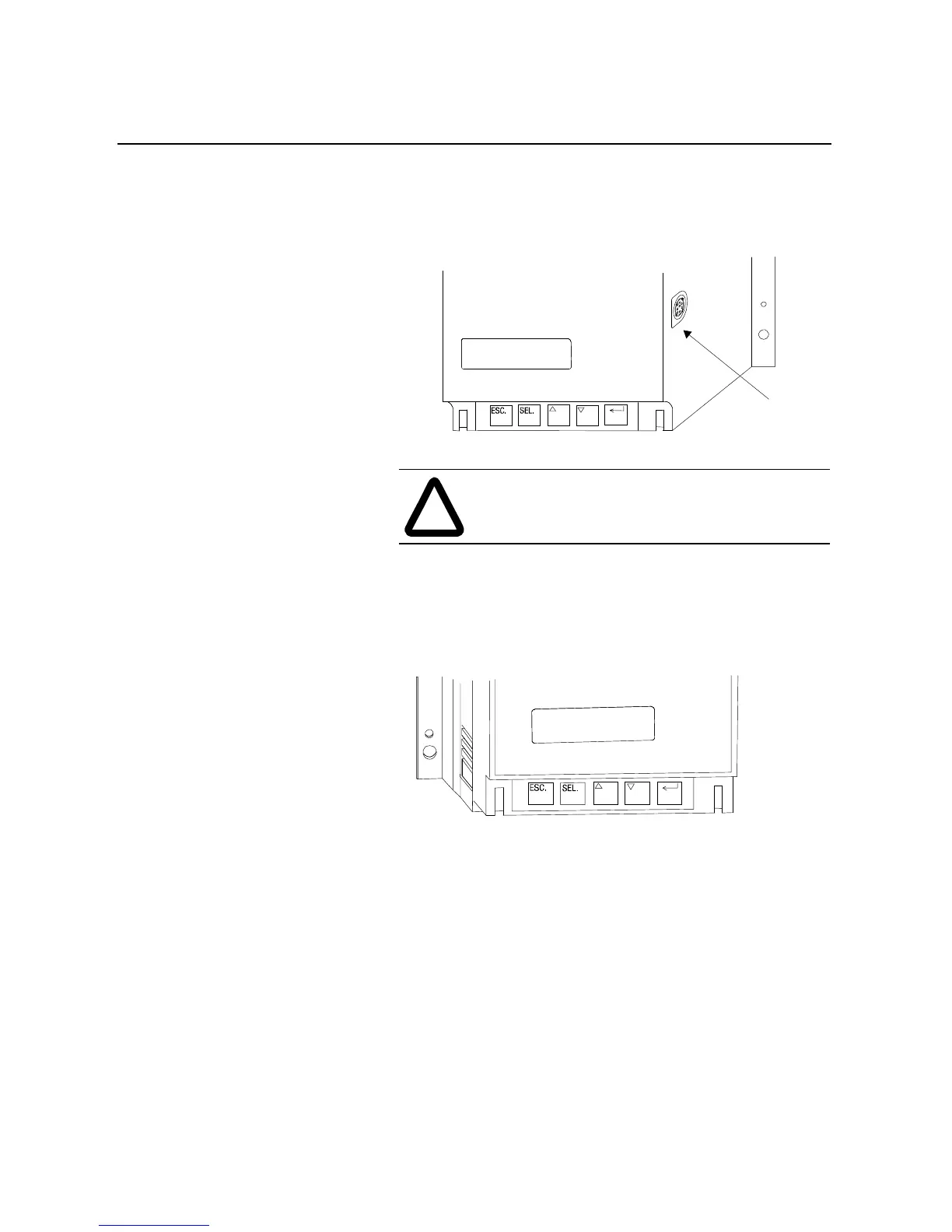

Figure 1.10 SCANport Location
Programming
Setup is easy with the built-in keypad and two-line, sixteen character
backlit LCD. Parameters are organized in a four-level menu
structure, using a text format for straightforward programming.
Figure 1.11 Built-in Keypad and LCD
Status Indication
Three programmable hard contact outputs are provided as standard.
The first two contacts are Form C and programmable for Normal/Up-
to-speed. The third contact is programmable as Normal/Fault.
SCANport
!
ATTENTION: Only one peripheral device can be
connected to the SCANport. The maximum output
current through the SCANport is 100 ma.
