8-26

Serial Communications

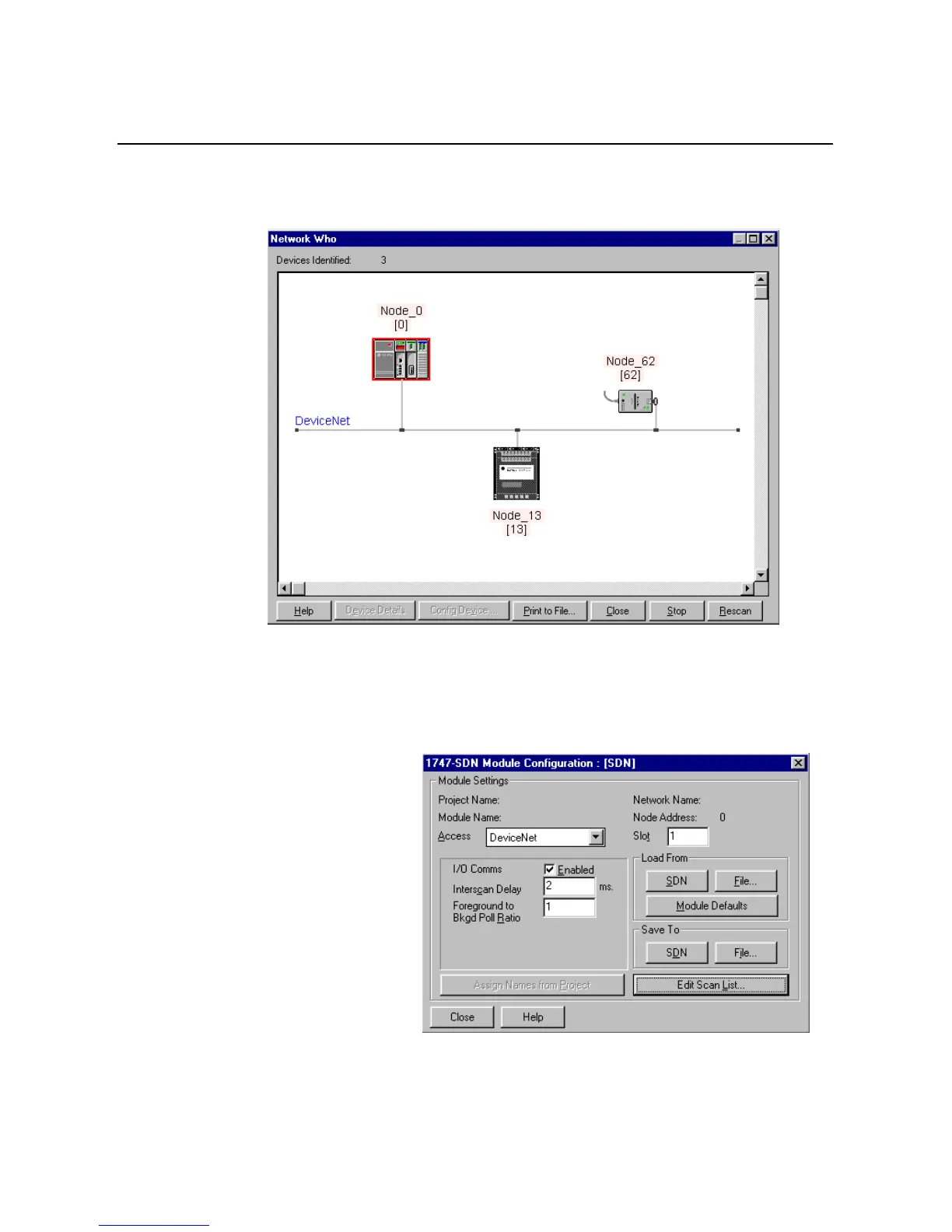

After you have your network “project” configured in the DeviceNet

Manager software, perform a Network Who; the following screen will

appear:

Notice that the SMC Dialog Plus controller is identified as node 13,

which was configured by setting the DIP switches on the 1203-GK5

communication module.

Double-click the Master (node 0) on the DeviceNet network; the

following screen will appear:

Select the Edit Scan List option by clicking on the button; the

following screen will appear:
