Rotax 914 series - Page 128

page 128
July 01/2008
Effectivity: 914 Series
Edition 2 / Rev. 0
d04283
INSTALLATION MANUAL
BRP-Rotax
ø47
-0,05
ø1,85
-0,002
Lk = ø101,6
Lk = ø75
ø12,975
ø11,5
ø
13,025
ø
8
+0,2
8,5
0,34 in.
P
Lk = ø80
02581

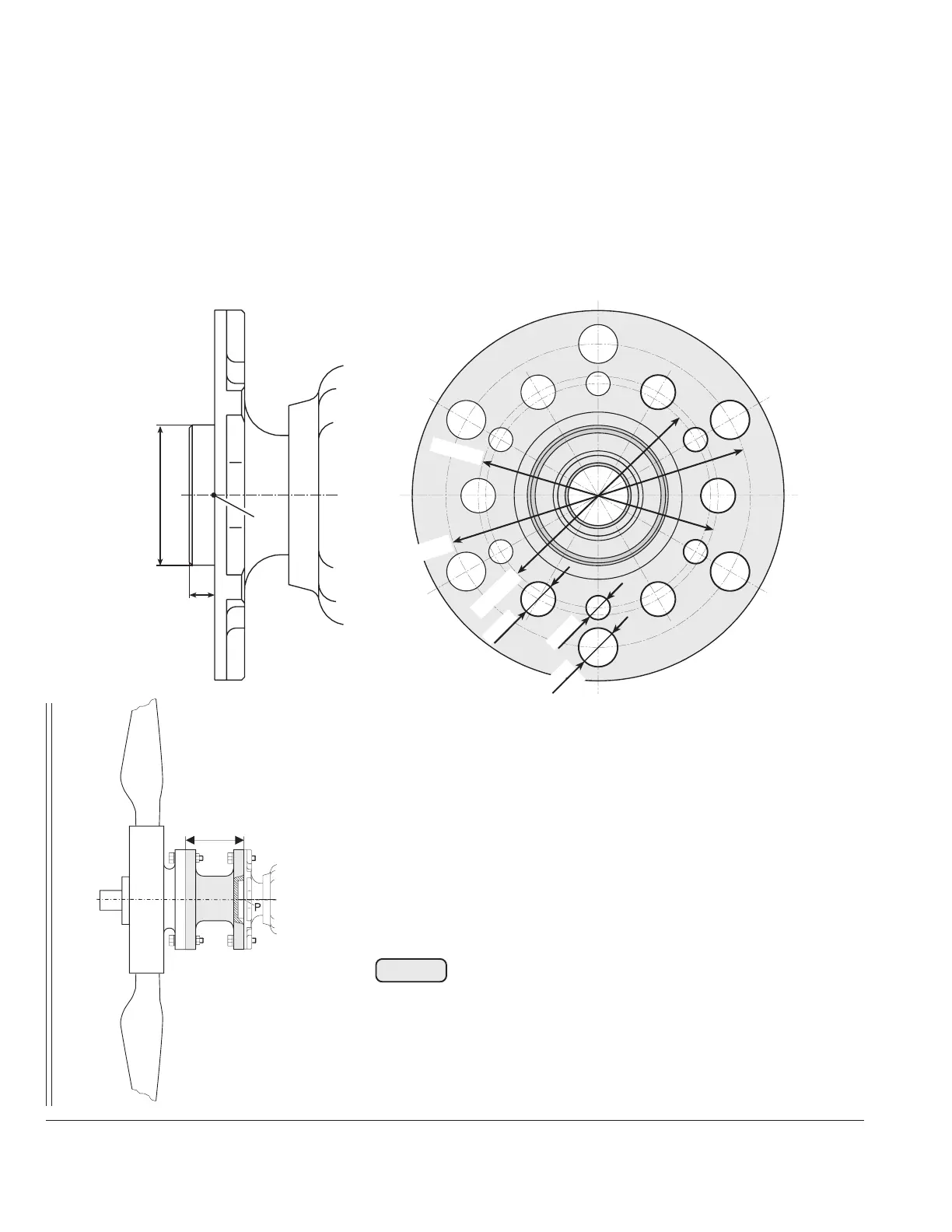

◆ NOTE: In the course of certification a vibration analysis of the whole system
(engine, suspension, propeller etc.) should be done.
If there are no limits found in the technical literature, a max. of 0,1 IPS
(inches per second) at 5000 rpm. can be assumed.
09193
120 mm (4.72 in.)
Fig. 85
02581
