Vertical axis:
- y-axis must be square to the longitudinal axis of the aircraft.

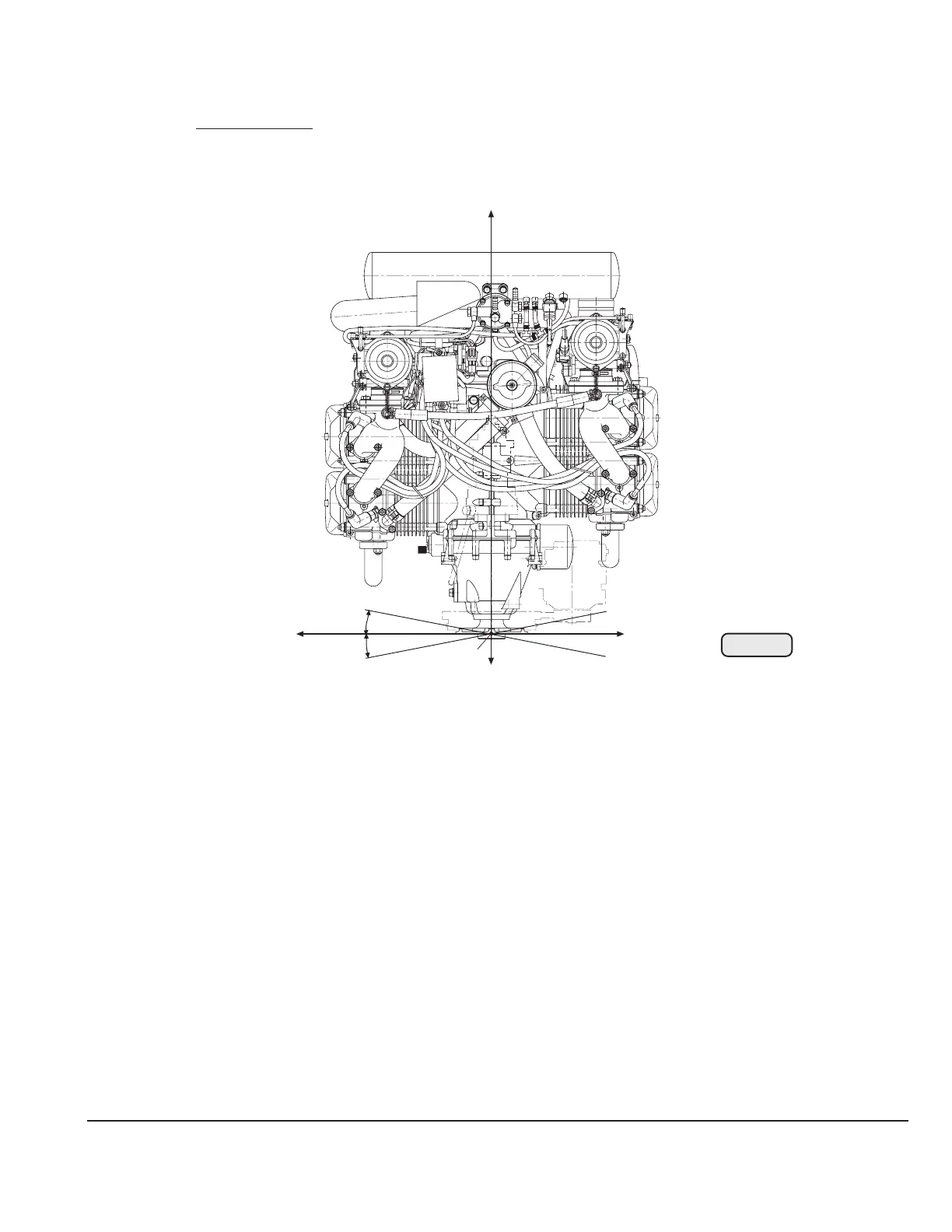

Tolerated roll deviation of Yaw tolerance: ± 10° (See Fig. 11)
