FLEX-AUGER - INSTRUCTIONS FOR THE USER
ROXELL - 031- 0516
I-7

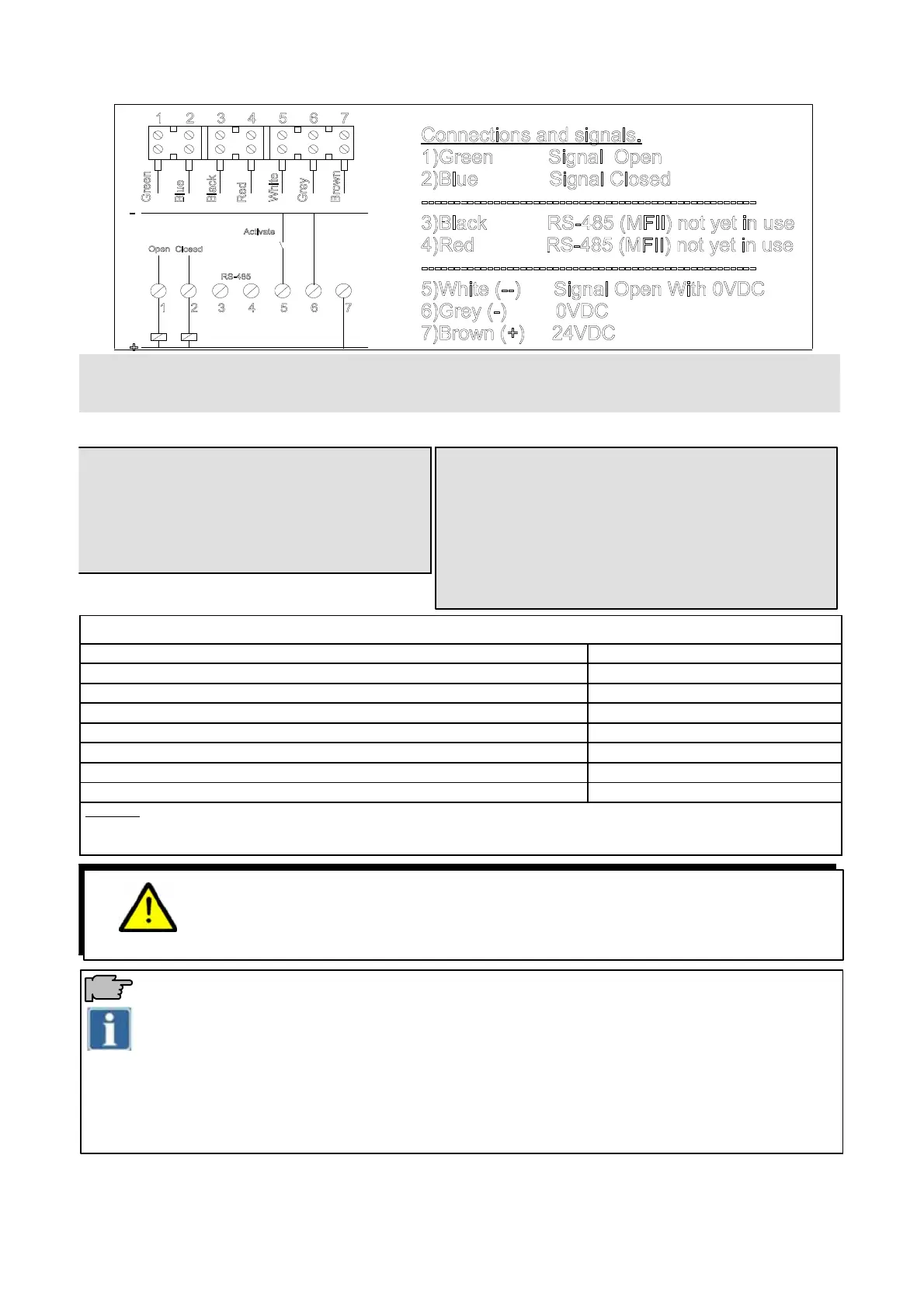

WIRING DIAGRAM AUTOMATIC OUTLET
Feedback of OPEN/CLOSE signal by digital input or relay.
BothsignalsOPEN&CLOSEwhichcomefromtheAutomaticDropcanbeconnectedtoa24VDCrelay.
In MFII application the feedback can be directly connected to a IDM.
Declaration signalling LED
24VDC+Close LED Blue
Motor OPEN LED Blue blink
Motor Alarm LED Red
Motor Calibration LED Green
With blocking motor alarm LED Red
Remove DROP.
Remove possible blocked feed.
Switch 24VDC OFF.
Switch 24VDC ON.
Calibration starts automatically.
LED Blue
Technical specifications
Voltage
24 VDC 20%
Motor Current Stand-by
20 mA
Motor Current OPEN/CLOSE
150 mA
Motor Current Alarm
400 mA
Relais output 24VDC
100 mA
Max. Cable Length
200 M
Min. Cable Section
0.5mm
2
max.100 M
Min. Cable Section
0.75mm
2
max. 200 M
Remark
After interruption of voltage in “OPEN position, the input will not be noticed for a 15 sec. period, so the
“OPEN position" retains for 15 sec..
THE AUTOMATIC OUTLET STARTS AUTOMATICALLY. NEVER PUT YOUR HANDS IN
THE OUTLET OR IN THE DROP HOLE BEFORE MAKING SURE THAT THE CURRENT
IS SWITCHED OFF.
DANGER
ATTENTION : Contact ROXELL for professional advice when using following feeds:
CCM (Corn Cob Mix).
Feed mixed with CCM.
Soya.
Soya lumps.
Wet feed.
Without explicite authorization, all our warranties will expire and no claims will be accepted.
Also contact Roxell if you want to use strongly grating feeds like hen feed etc...
