FLEX-AUGER - INSTRUCTIONS FOR THE USER
ROXELL - 031- 0516
I-8
FLEX-AUGER MIX: HOW TO CALIBRATE THE SYSTEM ?

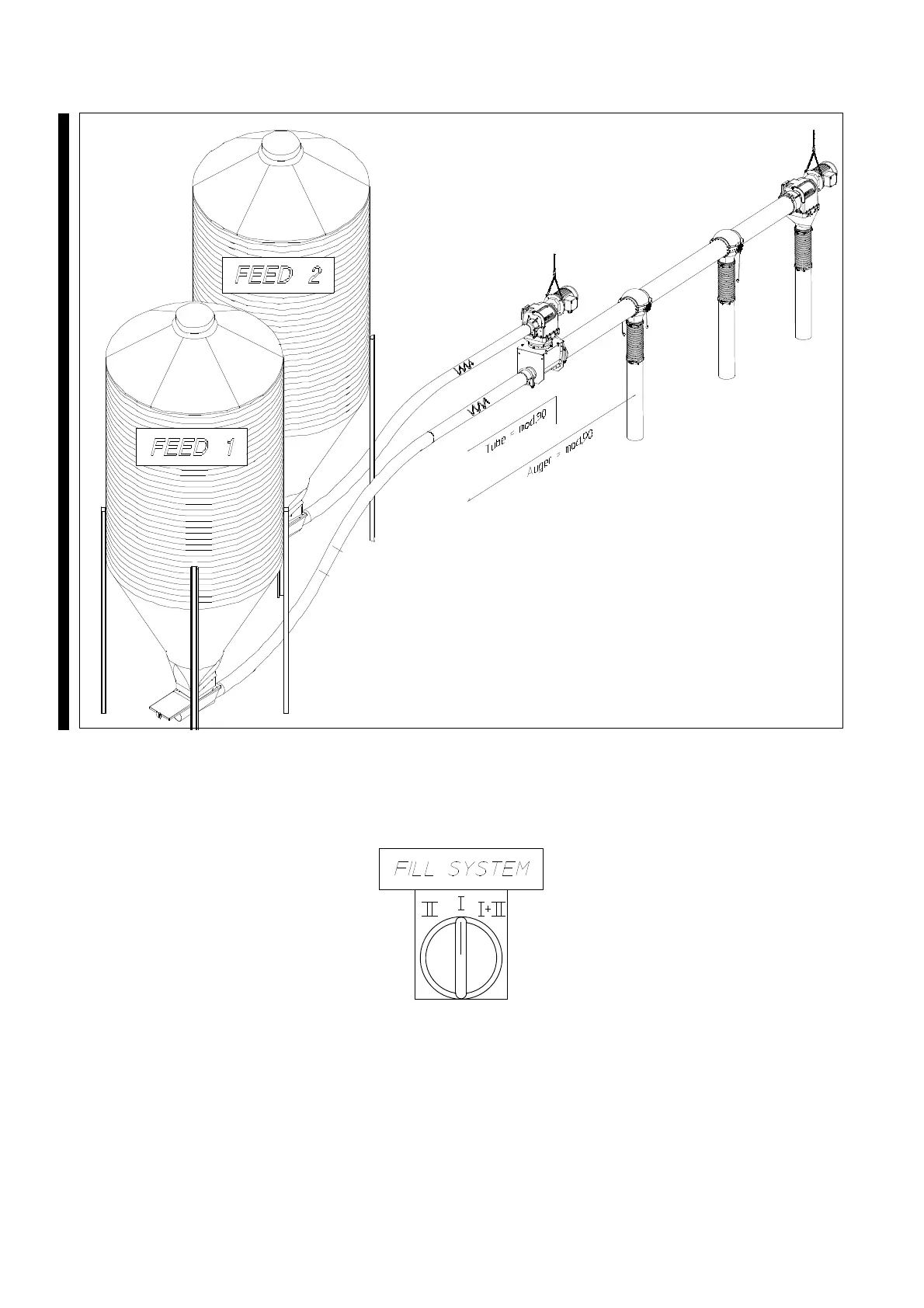

FIGURE 1.
Feed II
Bin II
Feed I
Bin I
First of all make sure that all Flex-Augers are ready for use.
- Let the Flex-Augers run during some minutes.
- The tubes must be c ompletely filled and the slide of the
transfer assembly must be completely open.
Outlet 125
1. CAPACITY OF FLEX-AUGER I
- Open the outlet just after the mixing point.
- Put a sack or a wheel barrow under the drop tube of that outlet.
- PuttheFlex-AugerswitchonpositionI.
- Let Flex-Auger I run during 20 seconds and weigh the feed in the sack or the wheel b arrow (= ”X” kg).
- Capacity of Flex-Auger I = ”X” kg x 180 = .. kg/hour.
REPEAT THE 2 PRECEDING STEPS TO CHECK YOUR FIRST MEASURING.
2. CAPACITY OF FLEX-AUGER II IN FUNCTION OF THE FREQUENCY
- Take t he grey drop of Flex-Auger II out of the Flex-Auger Mix feed intake boot.
- Useadroptubetoletthefeedflowintoasackorwheelbarrow.
