FLEX-AUGER - INSTRUCTIONS FOR THE USER
ROXELL - 031- 0516
I-9

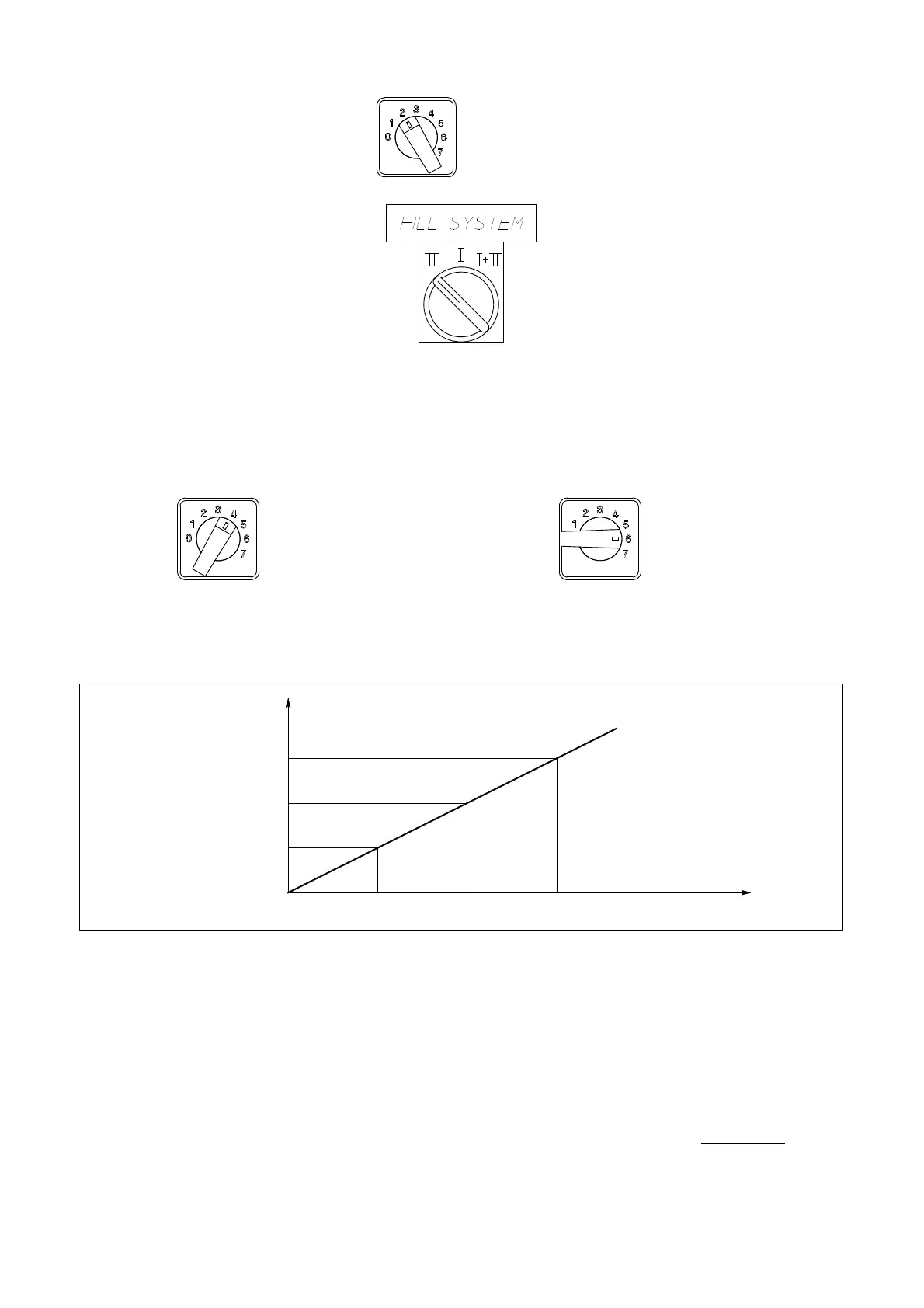

- Put the frequency switch on position 2 (= 20 Hz).
=20Hz.
- Put the Flex-Auger switch on position II and let Flex-Auger II run during 20 seconds.
- Weigh the feed in the sack or wheel barrow (= ”Xa” kg).
- Capacity of Flex-Auger II with frequency 20 Hz = ”Xa” kg x 180 = .. kg/hour.
- REPEAT THE 2 PRECEDING STEPS TO CHECK YOUR FIRST MEASURING.
- Follow the same procedure with the frequency switch on positions 4 (40 Hz = ”Xb” kg) and 6 (60 Hz = ”Xc”
kg).
- Capacity of Flex-Auger II with frequency 40 Hz = ”Xb” kg x 180 = .. kg/hour.
- Capacity of Flex-Auger II with frequency 60 Hz = ”Xc” kg x 180 = .. kg/hour.
= 40Hz. = 60Hz.
- Cap.FAII-60Hz
- Cap.FAII-40Hz
- Cap.FAII-20Hz
Put these three measurings in the empty graph you h ave received together with the control panel.
Cap. FA II - 40 Hz
Cap. FA II - 20 Hz
FIGURE 2.
20
40 60
F (Hz)）
Cap. Kg/hour
Cap. FA II - 60 Hz
3. DETERMINE THE REQUIRED PERCENTAGES/CAPACITIES
Position 0 = STOP
Position 1 = % = Capacity II - p1
Position 2 = % = Capacity II - p2
Position 3 = % = Capacity II - p3
Position 4 = % = Capacity II - p4
Position 5 = % = Capacity II - p5
Position 6 = % = Capacity II - p6
Position 7 = % = Capacity II - p7
X(%)xCap I
100 − X(%)
Formula : Cap
II =
