Roxell FLEX-AUGER FA 75 - Page 20

FLEX-AUGER - INSTRUCTIONS FOR THE USER
ROXELL - 031- 0516
I-10
Example
:
Position1=5%
Capacity I = 2500 kg/hour
Cap II - p1 =
5 x 2500
100 − 5
= 131kg/hour
4. DETERMINE THE CORRECT FREQUENCIES

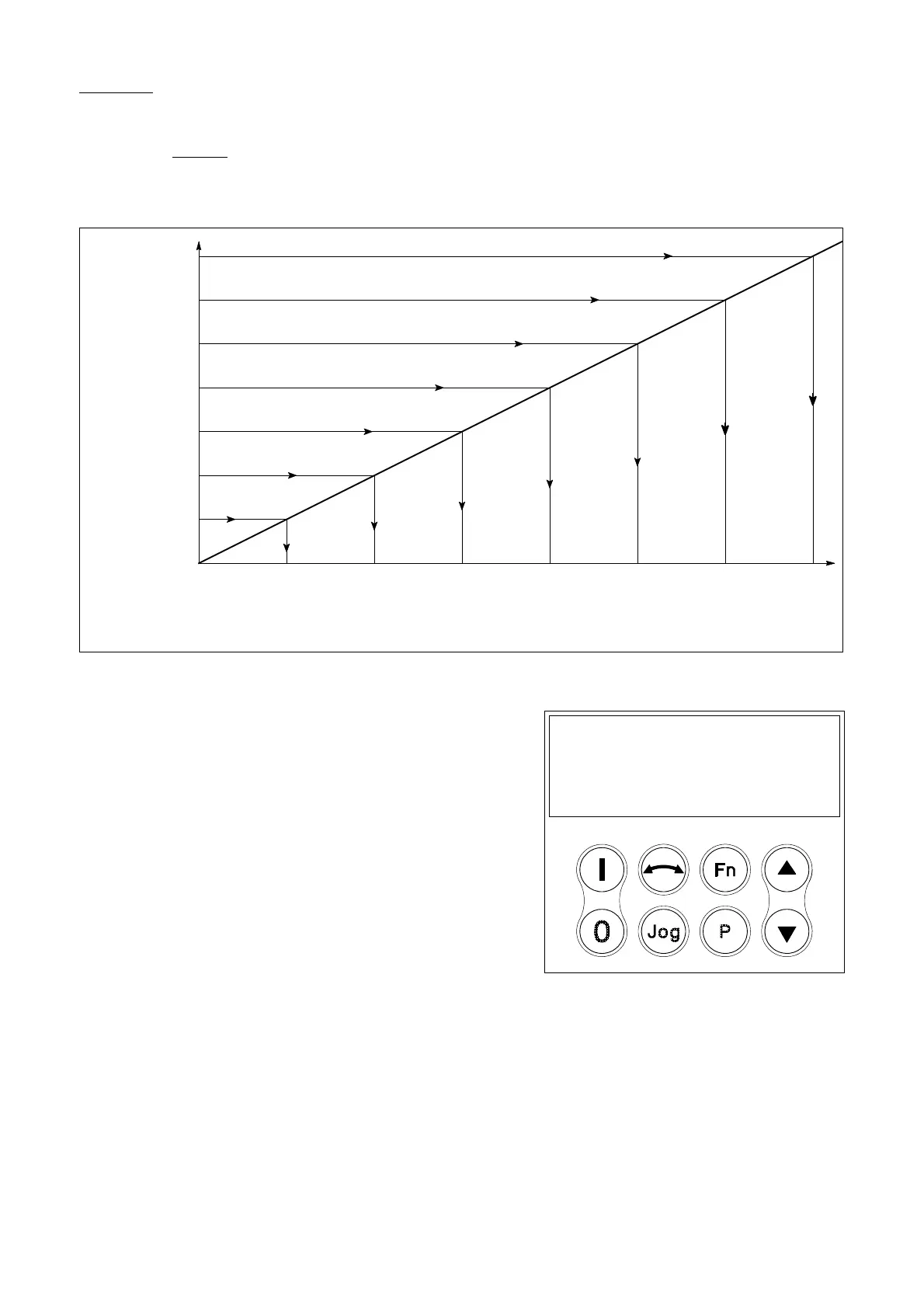

Use the graph Capacity FA II in function of the frequency.
FIGURE 3.
F1
F2 F3
F (Hz)
Cap
Kg/h
Cap II - P1
P2
P3
P4
P5
P6
F6F5
F4
Min. 10 Hz
Max. 130 Hz
P7
P0
F7
5. HOW TO PROGRAM THIS ON THE FREQUENCY REGULATOR ?
You must program the following parameters :
P1001 = F1
P1002 = F2
P1003 = F3
P1004 = F4
P1005 = F5
P1006 = F6
P1007 = F7
First press the P button.
Go to parameter P1001 with 
Press P
Change the value with  and  (value = frequency, for example 12 Hz)
Press P to confirm that value.
Go to parameter P1002 with 
Repeat the above steps.
Same procedure for the other parameters P1003, P1004, P1006 and P1007.
AfterP1007yougotoP000with
Press P to quit the programme.
