PSU-x Power Supply Modules Specifications
Parameter PSU-3 PSU-4 PSU-5
Input Supply
90 to 260 V
AC
50/60 Hz,
125 to 370 V
DC
Output Voltage Adj. Range 13.5 to 16.5 V
DC
Output Voltage
(factory preset)
+13.8 V
DC
Max Output Current
*
2.8 A 4 A 5 A
Load Capacity
*
40 W 60 W 70 W
Isolation
(AC input to DC output)
3 kV
AC
Isolation
(AC input to Functional Earth)
1.5 kV
AC
2 kV
AC
1.5 kV
AC
Connector Screw Terminals
Operating Temperature
*
-10 to +60 °C -25 to +70 °C
Storage Temperature
(at 10 – 95 % RH)
-20 to +85 °C -40 to +85 °C
Operating Humidity 20 to 90 % RH (non-condensing)
Weight
(without mounting bracket)
440 g 510 g 410 g
*
) Refer to the “PSU-x Output Derating Curve” graph below.

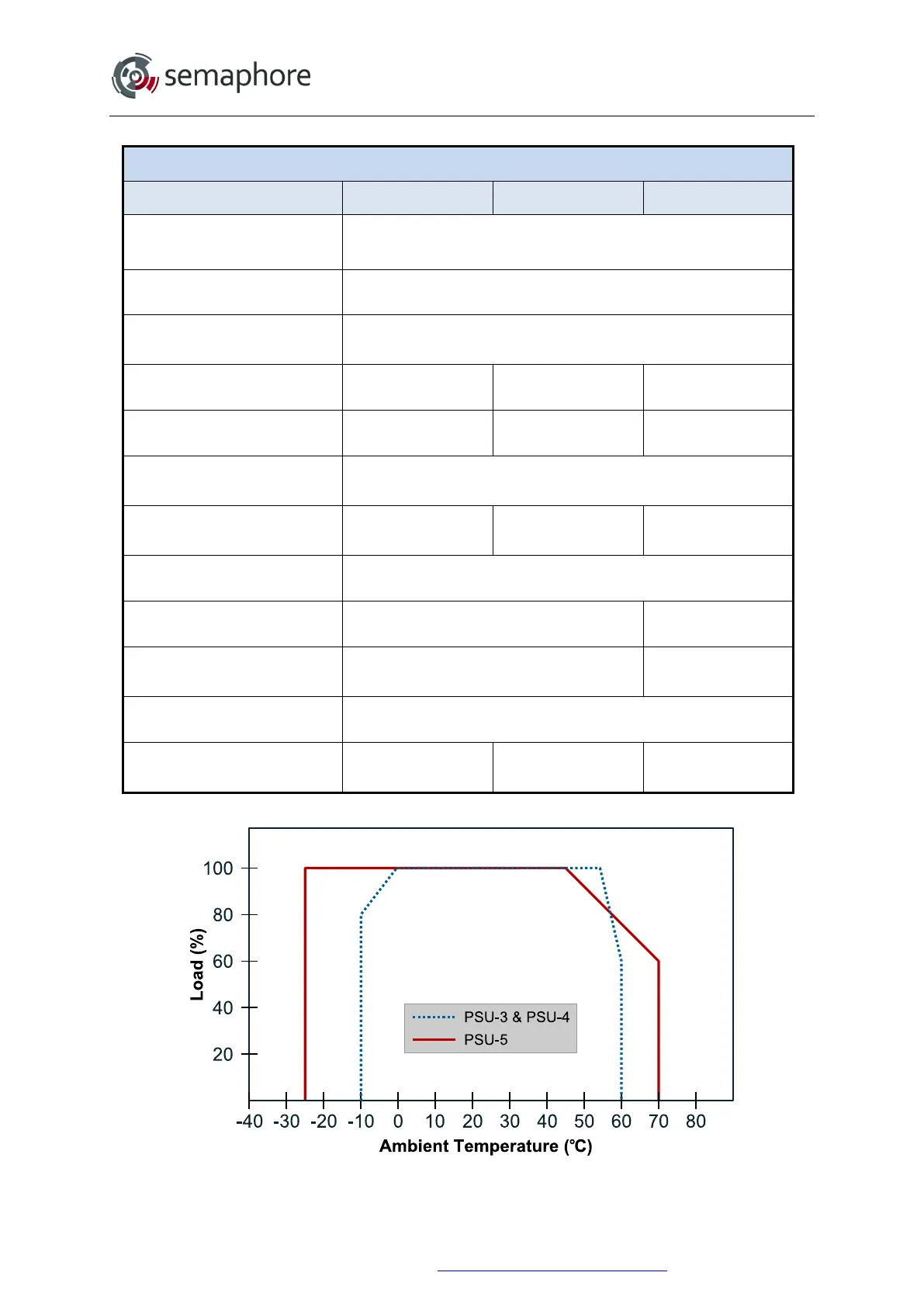

PSU-x Output Derating Curve
