Kingfisher Plus+ Hardware Manual

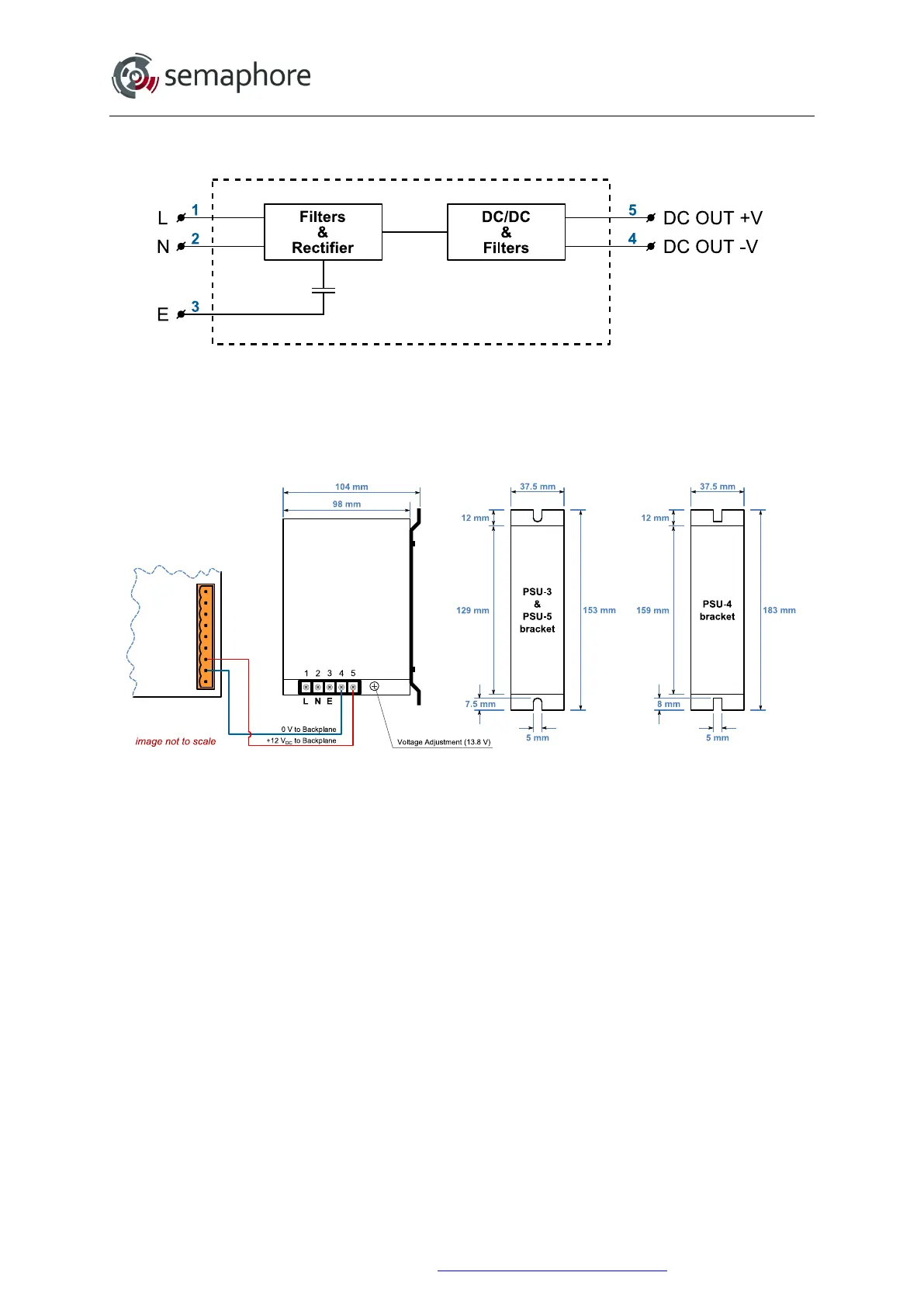

PSU-x Block Diagram
The block diagram of the PSU-x modules is shown below.
PSU-x Block Diagram
PSU-x Mounting
PSU-x Mounting and Connections
