| 4 - Instruction manual

The MME 865-1 microphone capsule has a super-cardioid pick-up pattern.

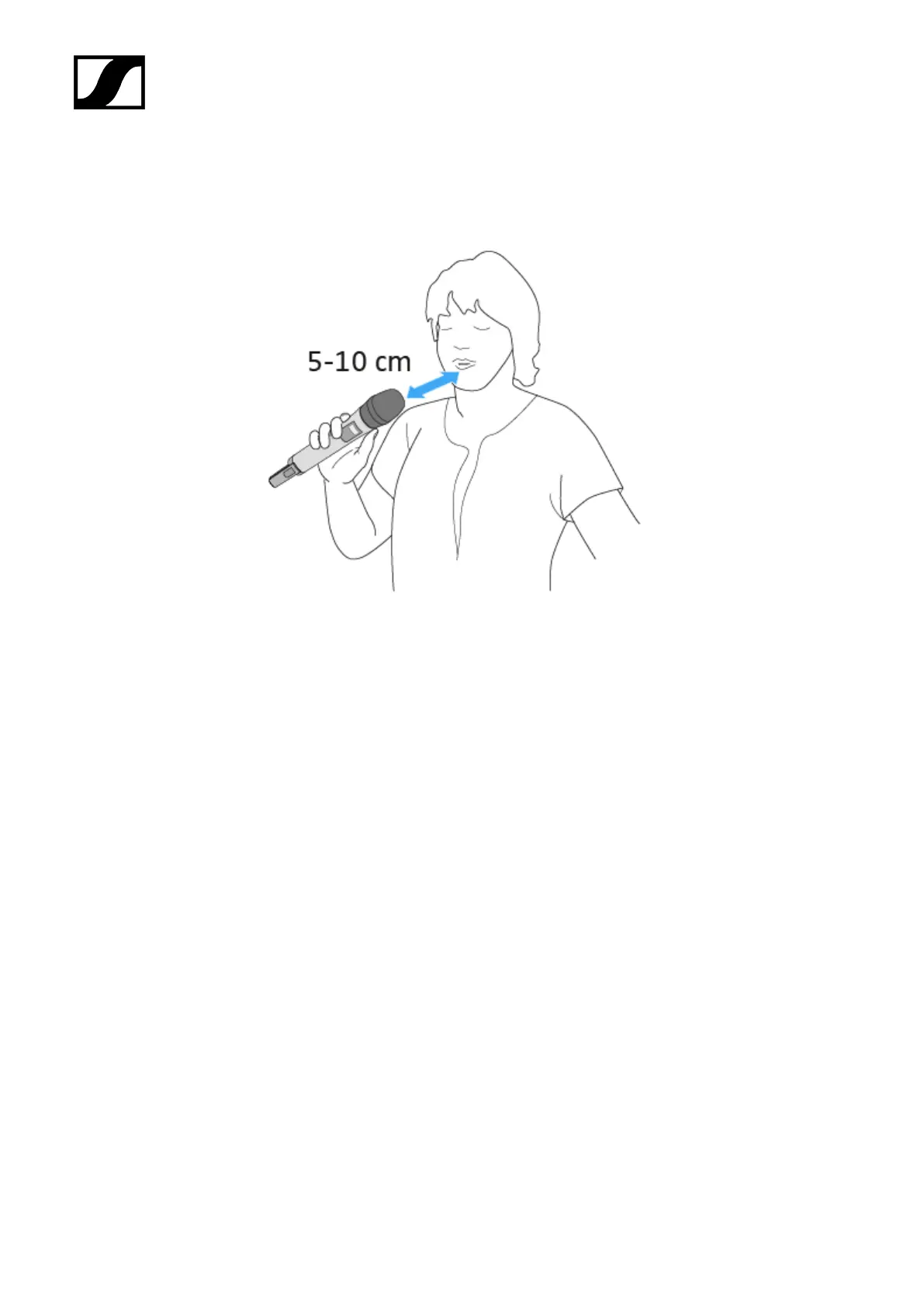

▷ Hold the handheld transmitter vertically and speak into the sound inlet basket from

directly above.

134
