| 4 - Instruction manual

Charging the boundary microphone

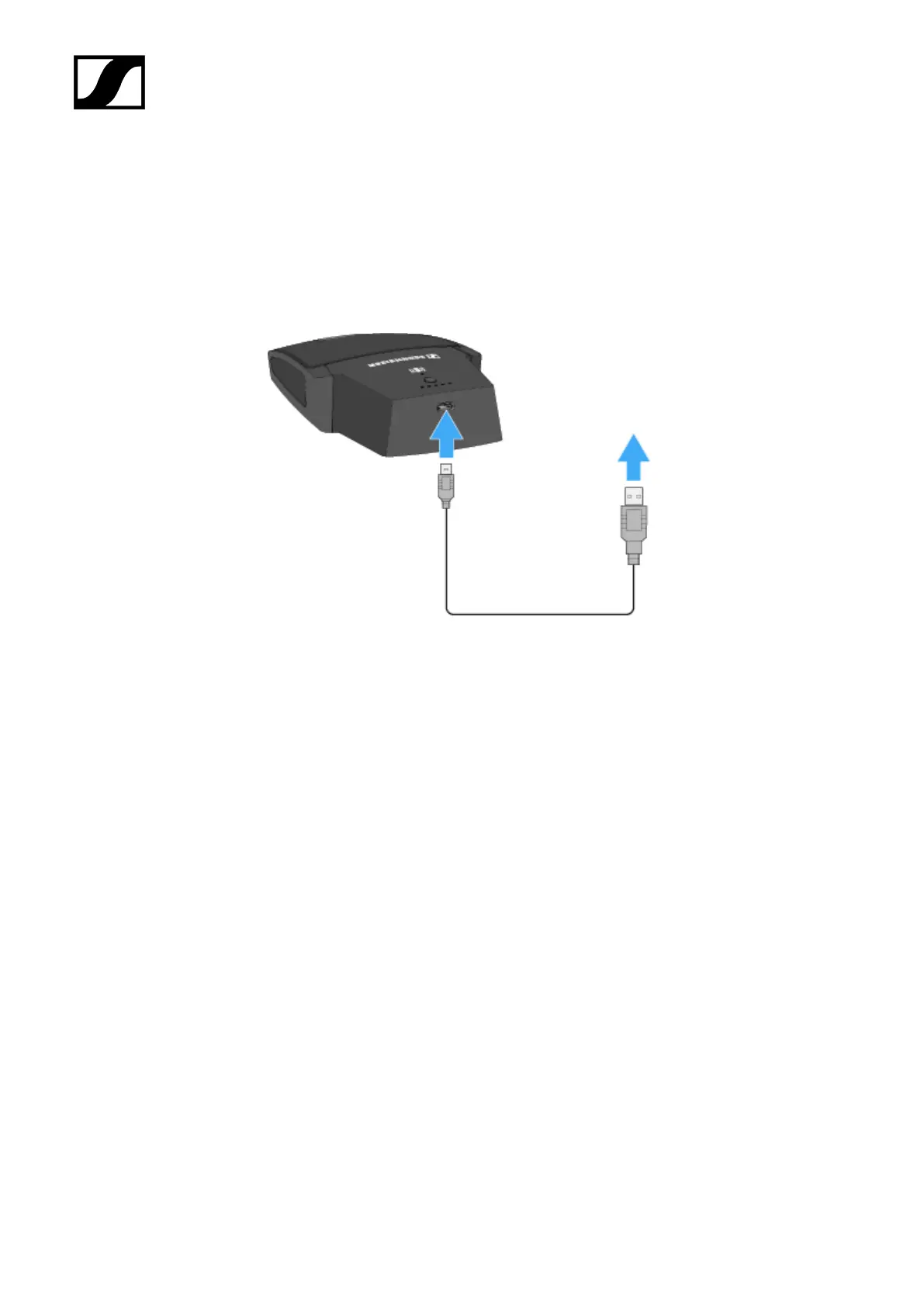

To charge the boundary microphone via USB:

▷ Connect the USB cable’s Micro-USB plug to the Micro-USB socket of the boundary

microphone.

▷ Plug the other end of the USB cable into a USB power supply unit.

➥ The charge level LEDs indicate the charge level.

176
