| 4 - Instruction manual

Using the windshield

The SL MZW 1 windshield reduces wind noise by 10 dB.

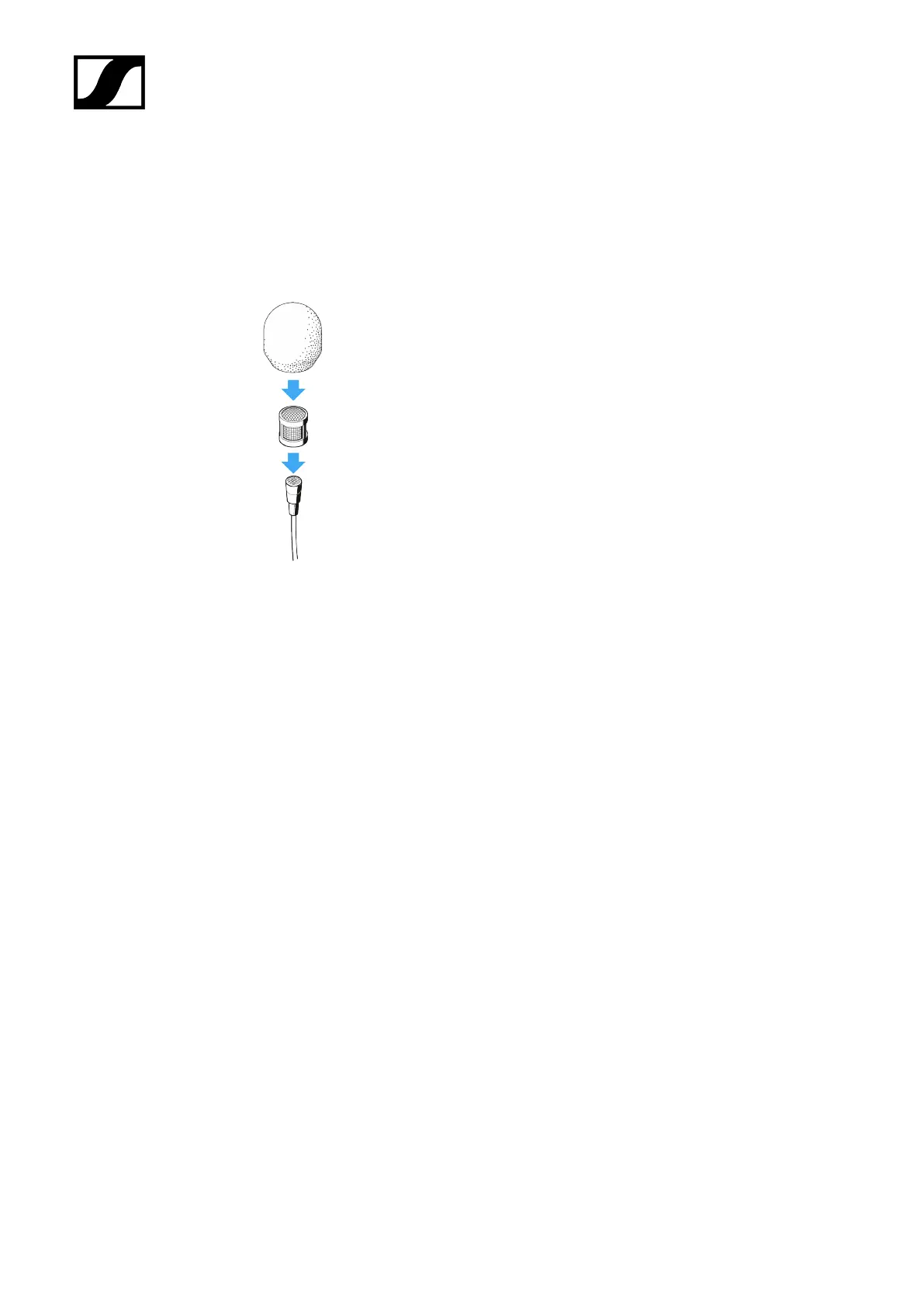

▷ Slide the SL MZW 1 windshield over the MZC 2 frequency response cap.

202
