| 4 - Instruction manual

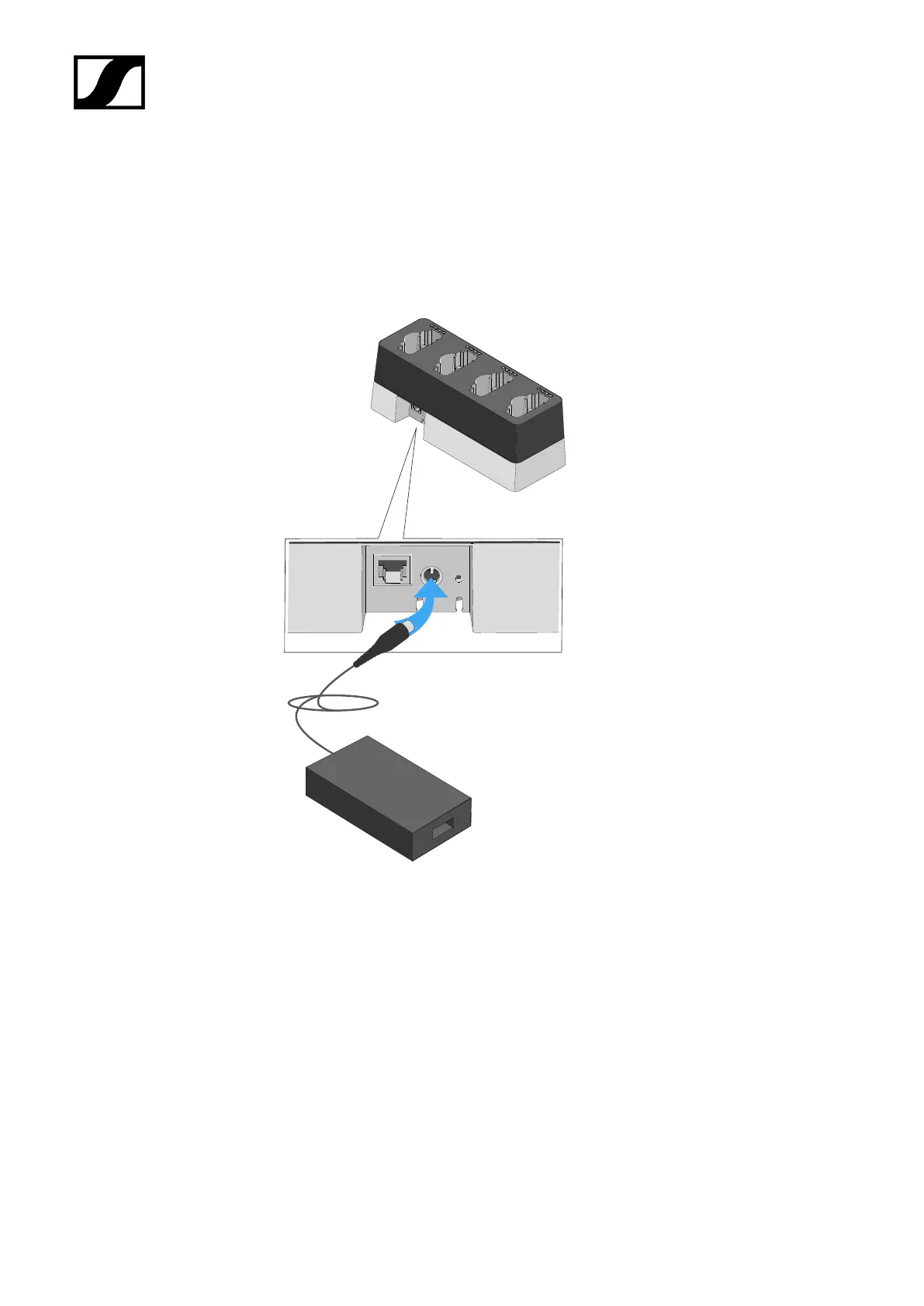

Connecting the charger to the power supply system

To connect the CHG 4N charger to the power supply system:

▷ Connect the cable end of the power supply unit to the socket at the base of the

charger.

230
