| 4 - Instruction manual

Connecting the goose neck microphone

We recommend using the MEG 14-40 goose neck microphone. This microphone is optimally

suited for the table stand.

To connect the goose neck microphone:

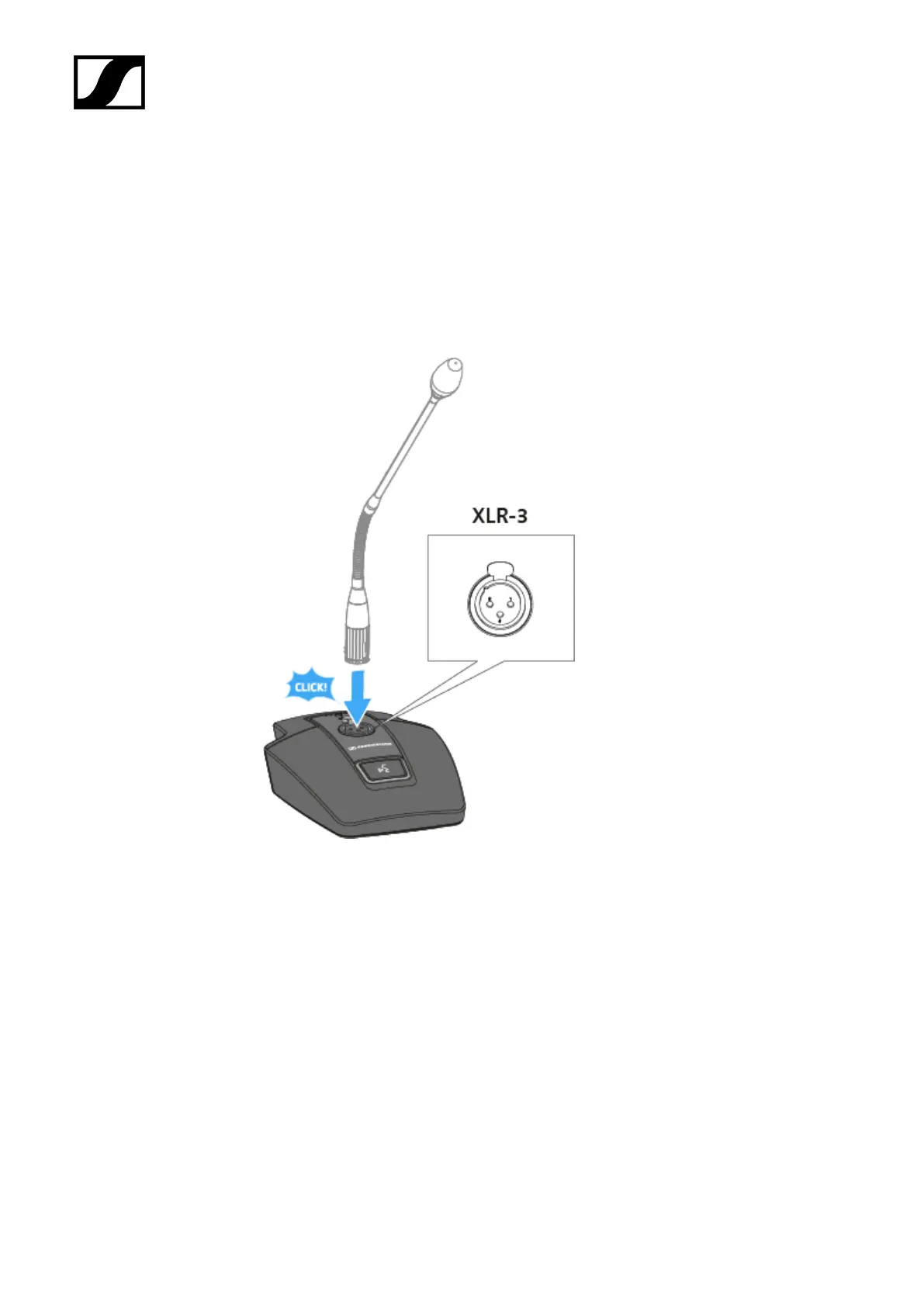

▷ Plug the goose neck microphone into the XLR-3 socket until it locks into place.

158
