| 3 - System planning

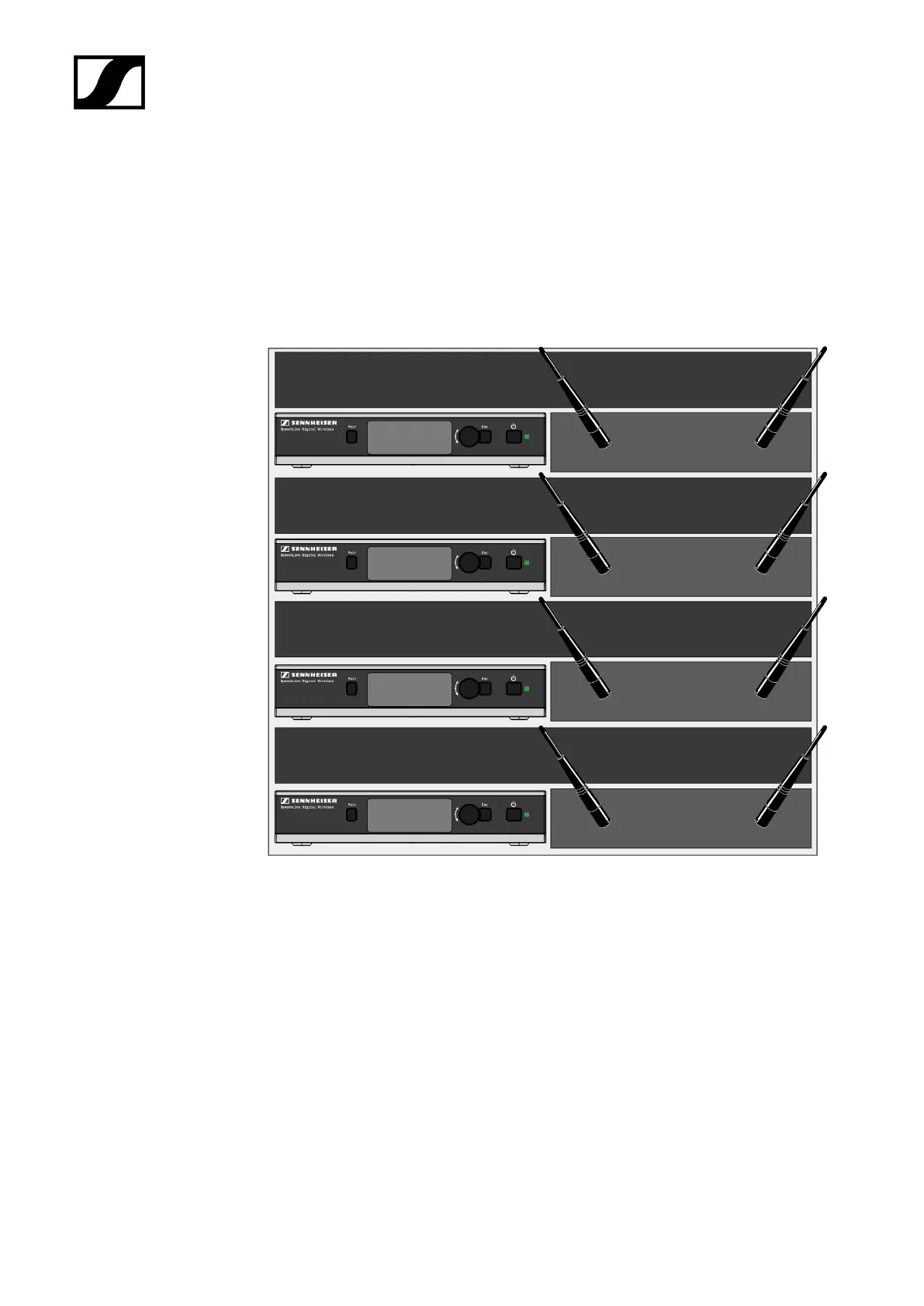

Option 3: Rack mounting - front
If you wish to install the antenna together with the receivers in a rack, we recommend
mounting the antenna on the front side of the rack using the GA 4 mounting kit.
▷ Always leave 1 U of space between receivers and antenna.
▷ Position the antennas at an angle of about 45°.
57
