| 4 - Instruction manual

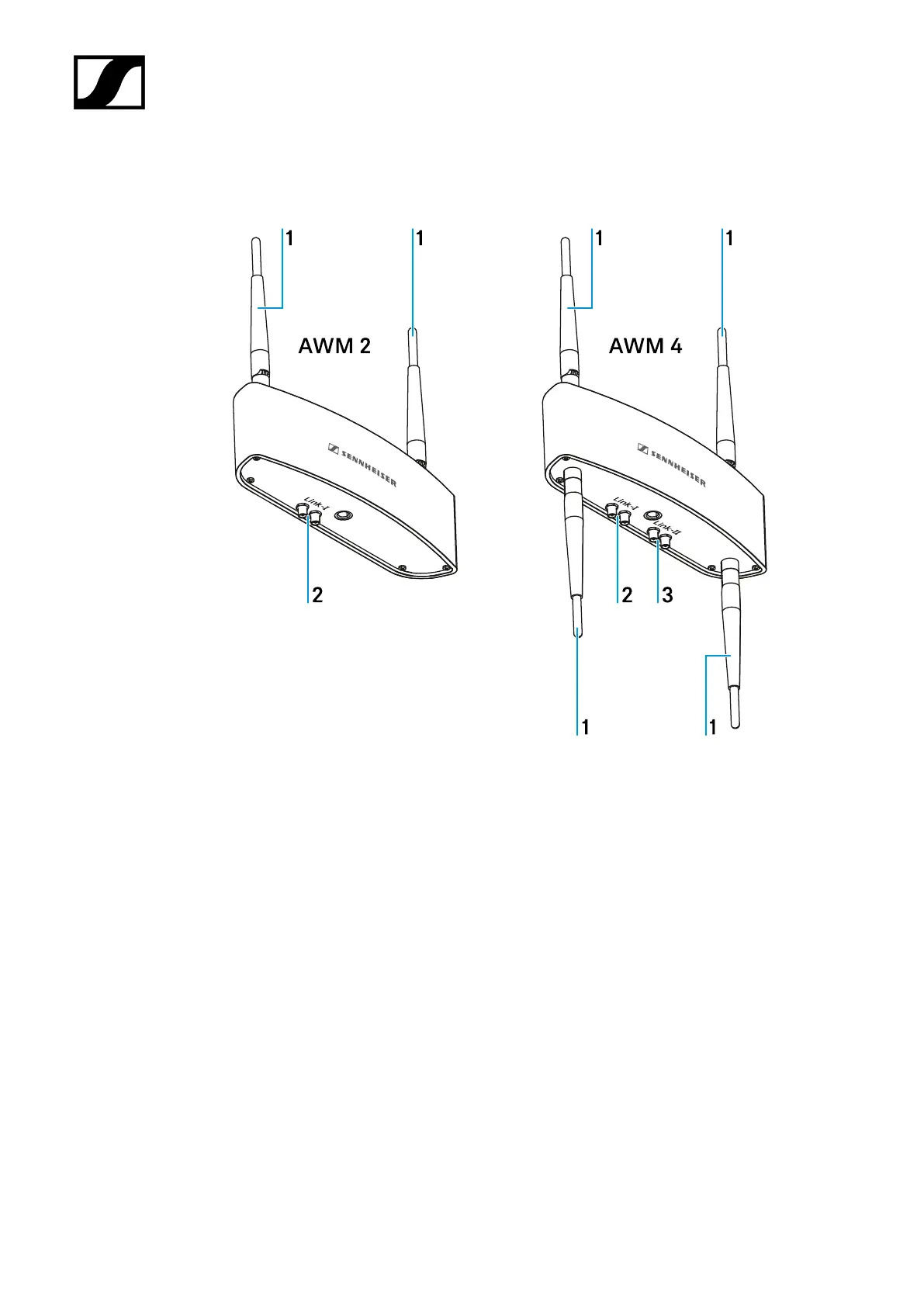

Product overview

1 Antennas

2 Connections for Link I

3 Connections for Link II (AWM 4 only

249
