Performing a walk test with the SL Rack Receiver DW in the
Control Cockpit
To perform a walk test in the Control Cockpit:
▷ Switch on the transmitter and the receiver of the radio link you want to check.
▷ In addition, switch on all other devices that you want to use in the operating
environment.
▷ Select the device in the Control Cockpit.
▷ Open the RF settings tab.

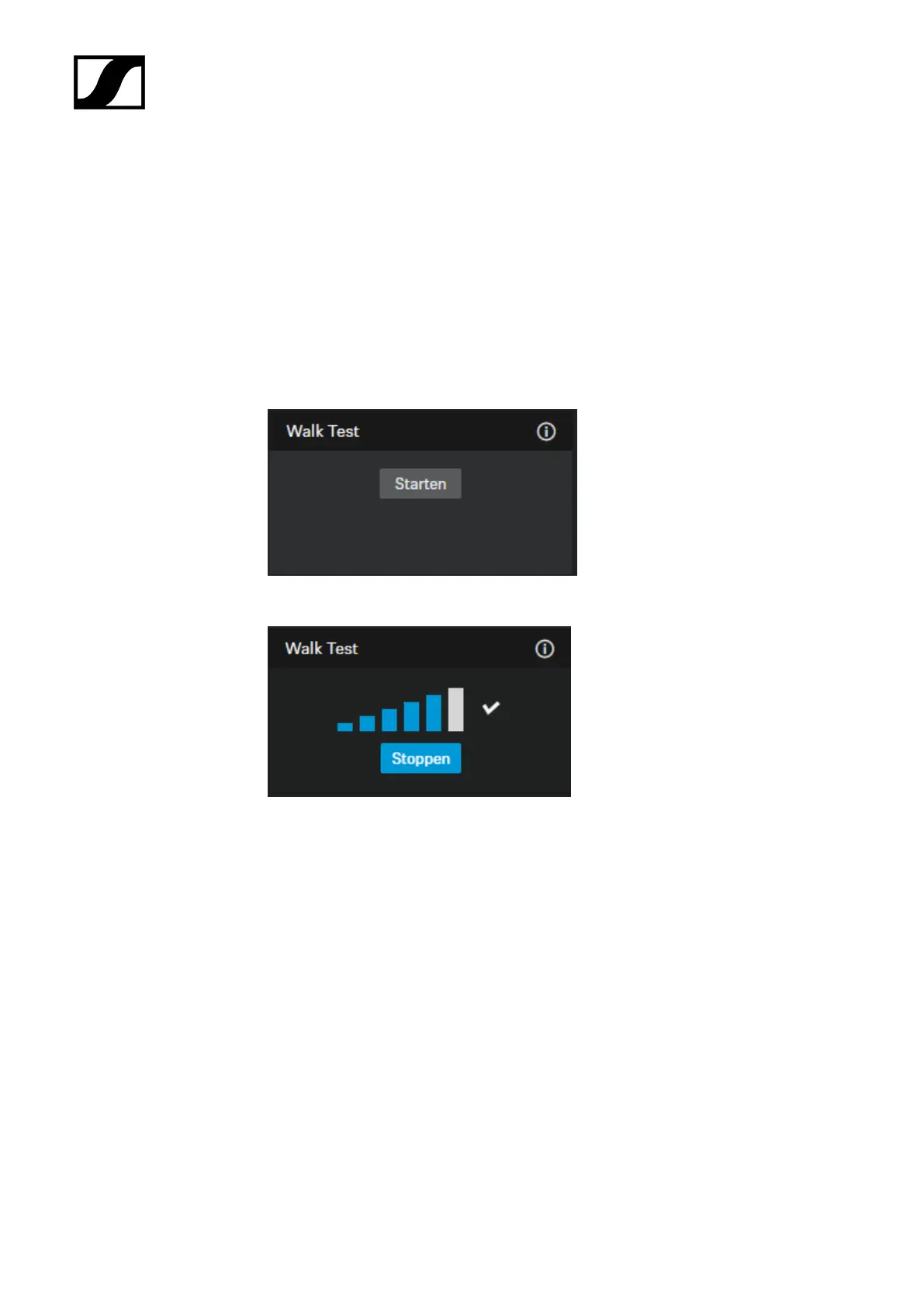

▷ Click Start under Walk Test.
▷ Walk the operating environment with the transmitter.
➥ The display of the radio signal level is continuously updated.
▷ Click Stop to end the walk test.
If the result of the walk test is not satisfying, you can take the following remedial measures:
• If possible, position the receiver so that there is always a direct line of sight
between the antennas (directly on the receiver or remotely mounted) and the paired
transmitter.
• If possible, remove obstacles between the transmitter and the antennas.
• Pay attention to the notes about antenna installation: Recommendations on antenna
mounting.
• If necessary, adjust the manually selected transmission power in the Control Cockpit
under RF power mode on the RF settings tab. You can find more information under
Multi-room mode.
