| 4 - Instruction manual
Displays on the receiver’s display panel

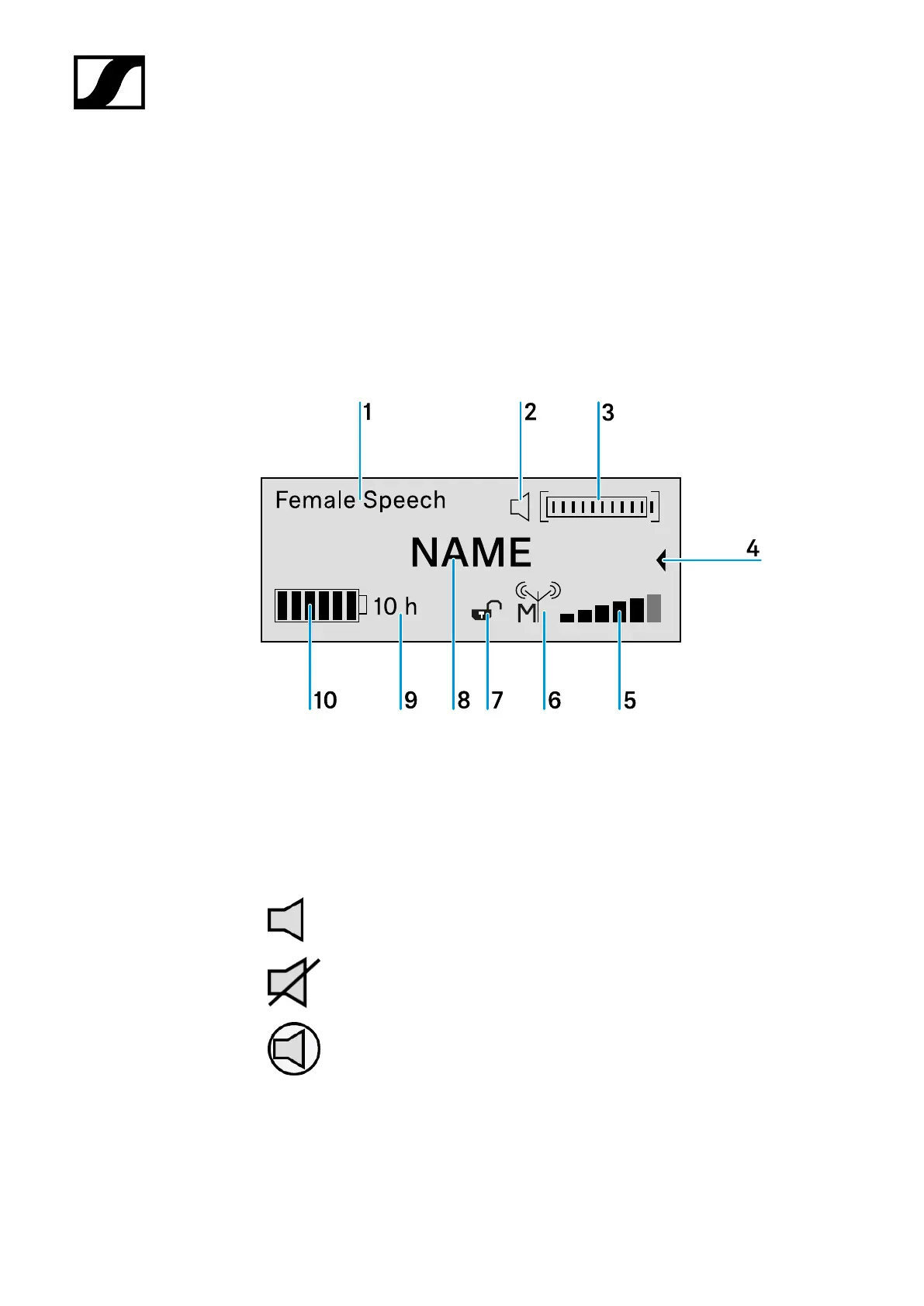

Home Screen
The home screen appears automatically after switch-on or when no button has been pressed
on the receiver for a long period of time.
If there is no radio link between the receiver and a transmitter, No Link appears on the
display panel and the display brightness is automatically dimmed.
1 Selected sound profile
• Displays the name of the selected sound profile. If no sound profile is
selected, nothing is displayed here.
2 MUTE status display
The received transmitter is not muted, but can be muted at any time.
The received transmitter is muted. In addition, the status LED lights
up yellow.
The received transmitter cannot be muted because its MUTE switch
is deactivated. see The System Settings menu.
3 Audio level display
• The audio level is automatically adjusted.
91
