| 4 - Instruction manual

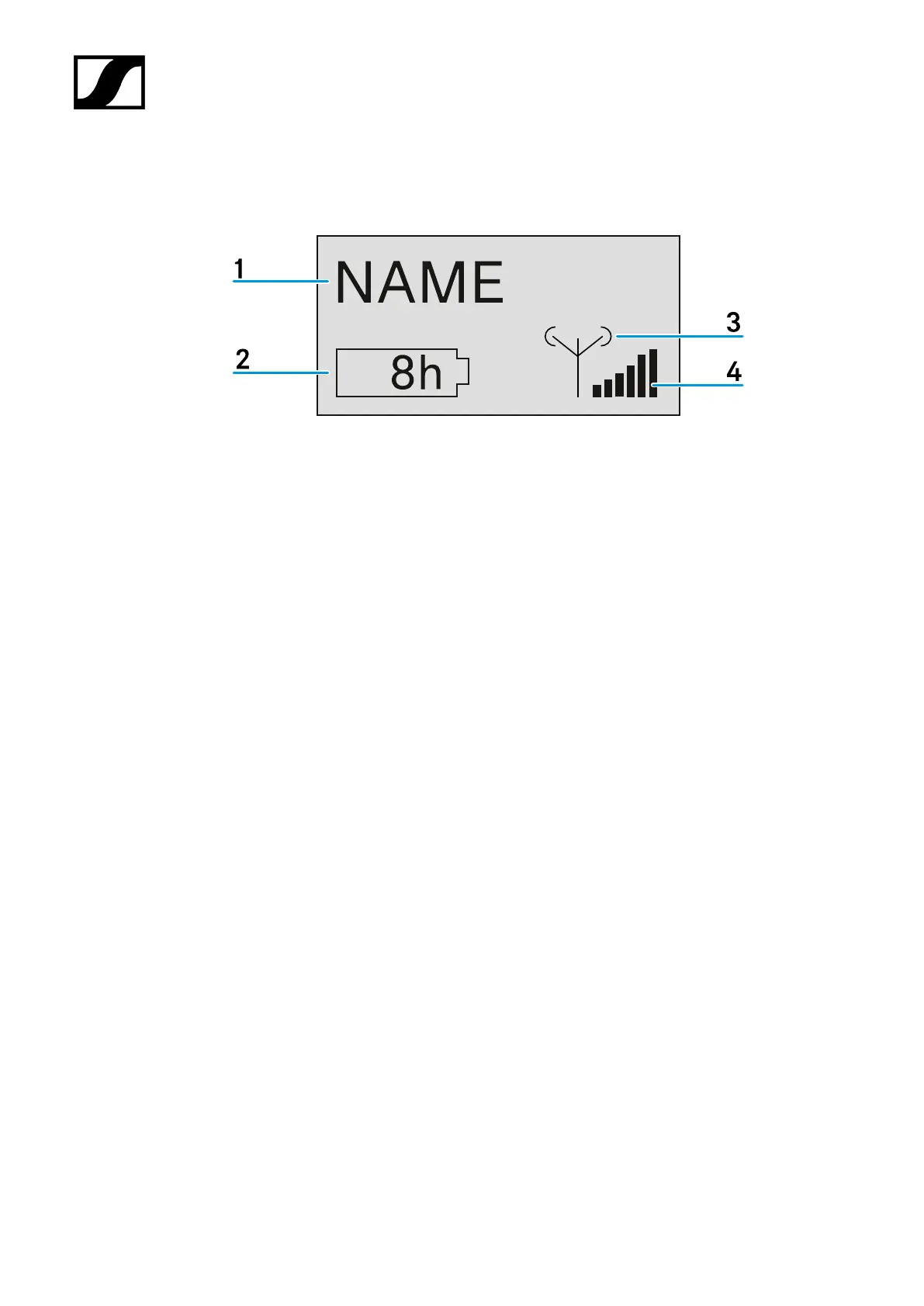

Displays on the display panel
1 Name of the radio link
• Can be entered in the Device Identification menu of the receiver (see
Using the operating menu of the receiver).
2 7-step display of the accupack or battery capacity
• Graphically displays the current charge status of the accupack or the
batteries.
• If you use the accupack, the remaining operating time is displayed in
hours.
3 RF output power of the transmitter
• Displays the RF output power of the handheld transmitter.
4 6-step display for the RF signal level
• Displays the current level of the RF signal.
140
