Attaching the connection cable to clothing

The MZQ 02 clip is available as an accessory.

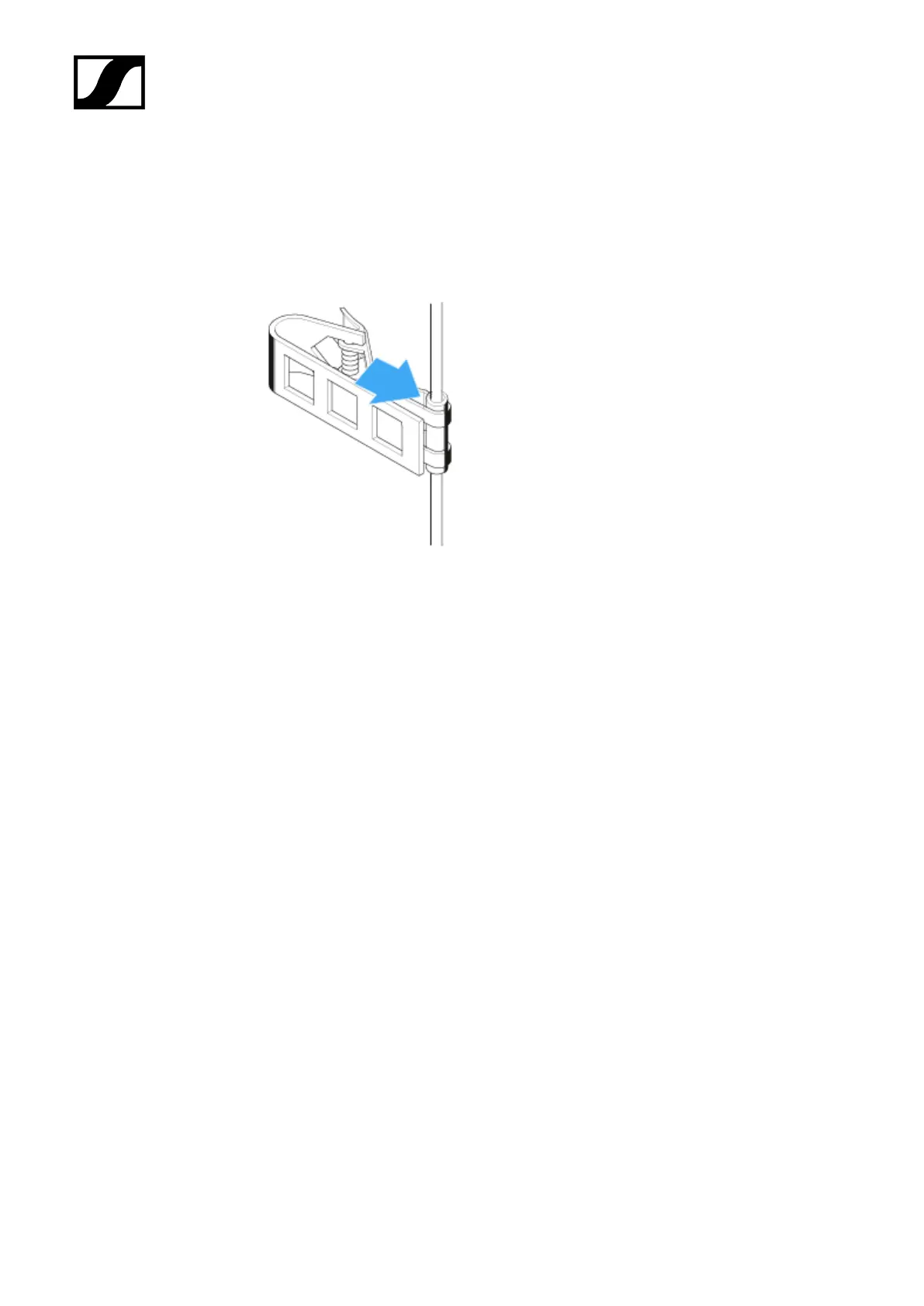

▷ Press the connection cable into the cable gland on the MZQ 02 clip.

▷ Attach the cable clip to the rear of your collar.

▷ Run the connection cable under your clothing.
