| 4 - Instruction manual

Preparing the headset microphone for use

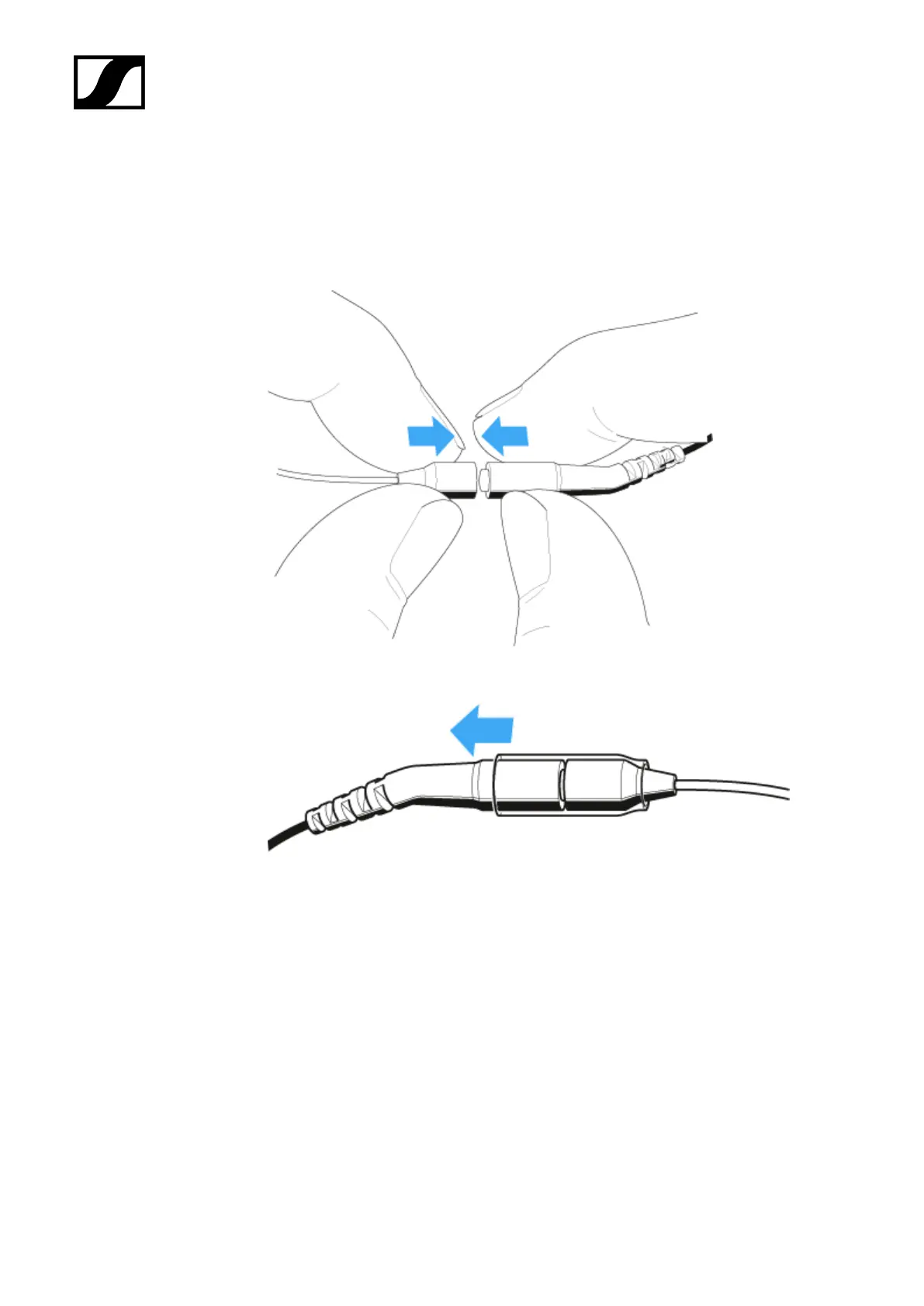

To connect the cable to the headset microphone:

▷ Plug the connector into the socket.

▷ Slide the silicone tube onto the connector.

196
