| 4 - Instruction manual

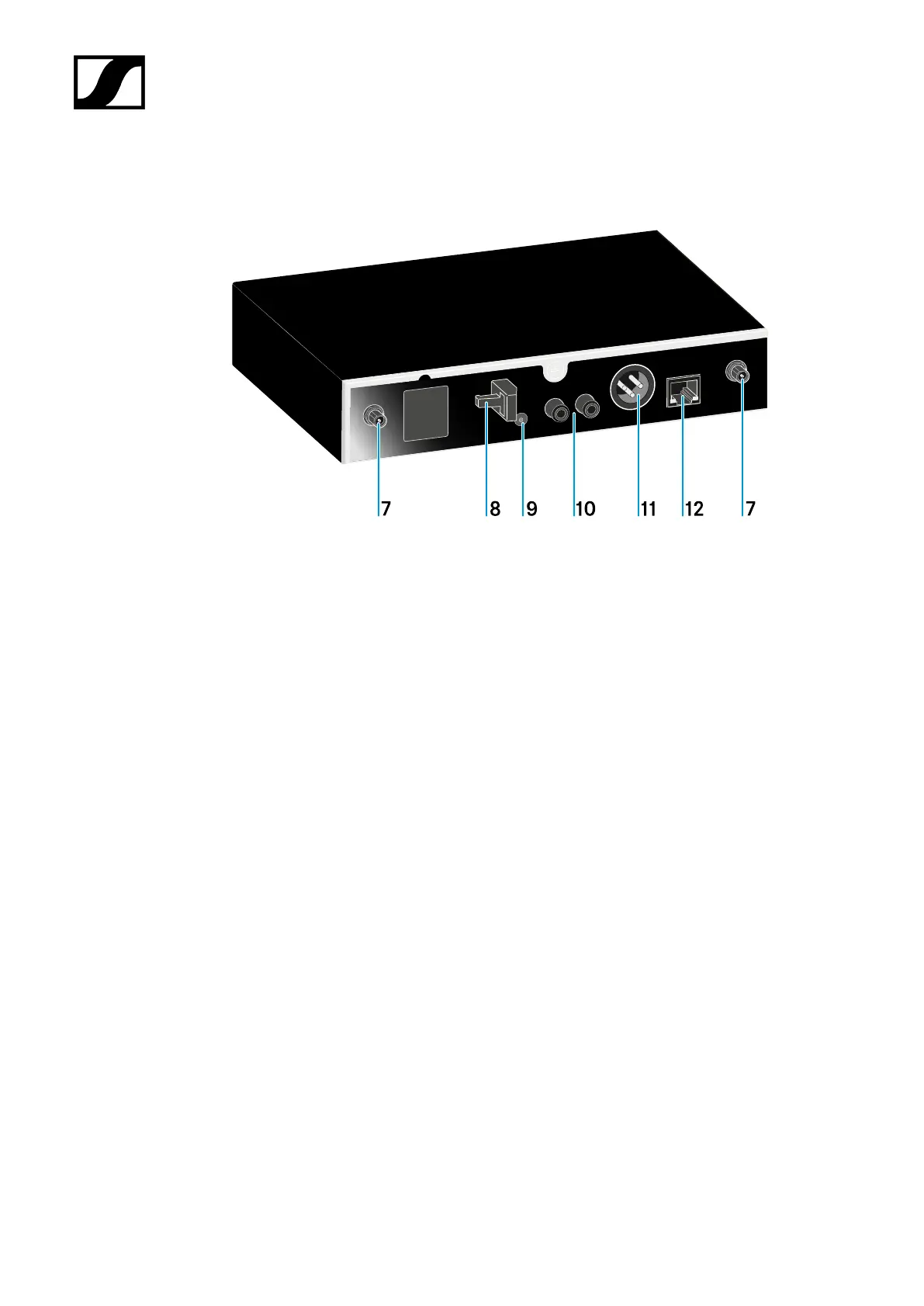

Product overview and connections – rear panel
7 ANT I and ANT II antenna sockets (R-SMA)
• Antenna inputs for connecting the supplied rod antenna
• Alternatively, the antenna can be mounted using extension cables and
the AWM 2 antenna wall mount or using the GA 4 mounting kit.
• see GA 4 mounting kit and AWM 2 / AWM 4 remote antennas
8 Strain relief grip
• For the cable of the power supply unit.
• see Connecting the receiver to the power supply system
9 DC IN socket
• For the power supply's hollow jack plug.
• see Connecting the receiver to the power supply system
10 AF OUT UNBAL sockets (RCA)
• Unbalanced audio output
• see Connecting an amplifier or mixing console to the receiver
