| 4 - Instruction manual

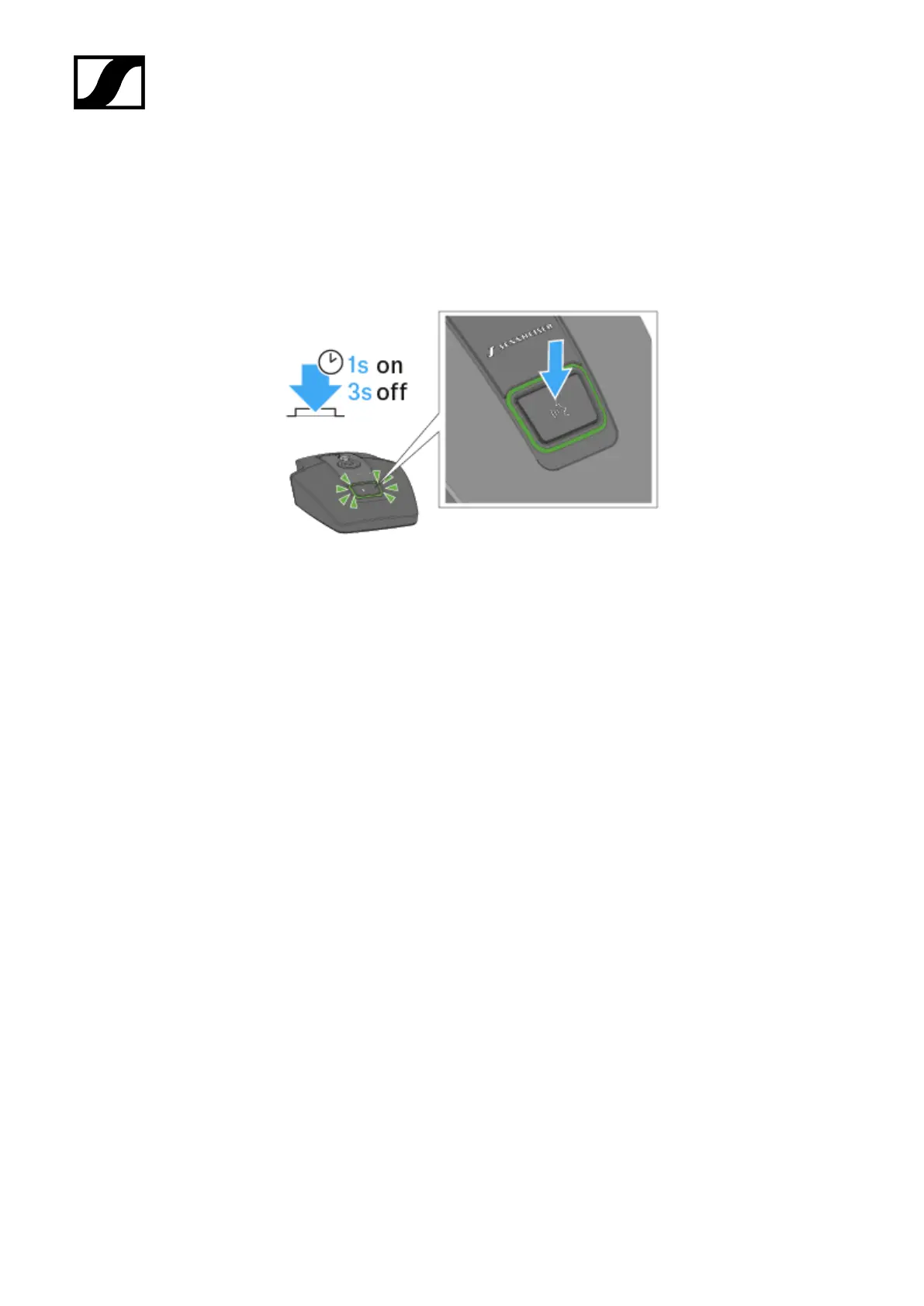

Switching the table stand on/off

To switch the table stand on:

▷ Press the ON/OFF button for 1 second.

➥ The button lights up green when a goose neck microphone is connected.

To switch the table stand off:

▷ Press the ON/OFF button for 3 seconds.

170
