| 3 - System planning

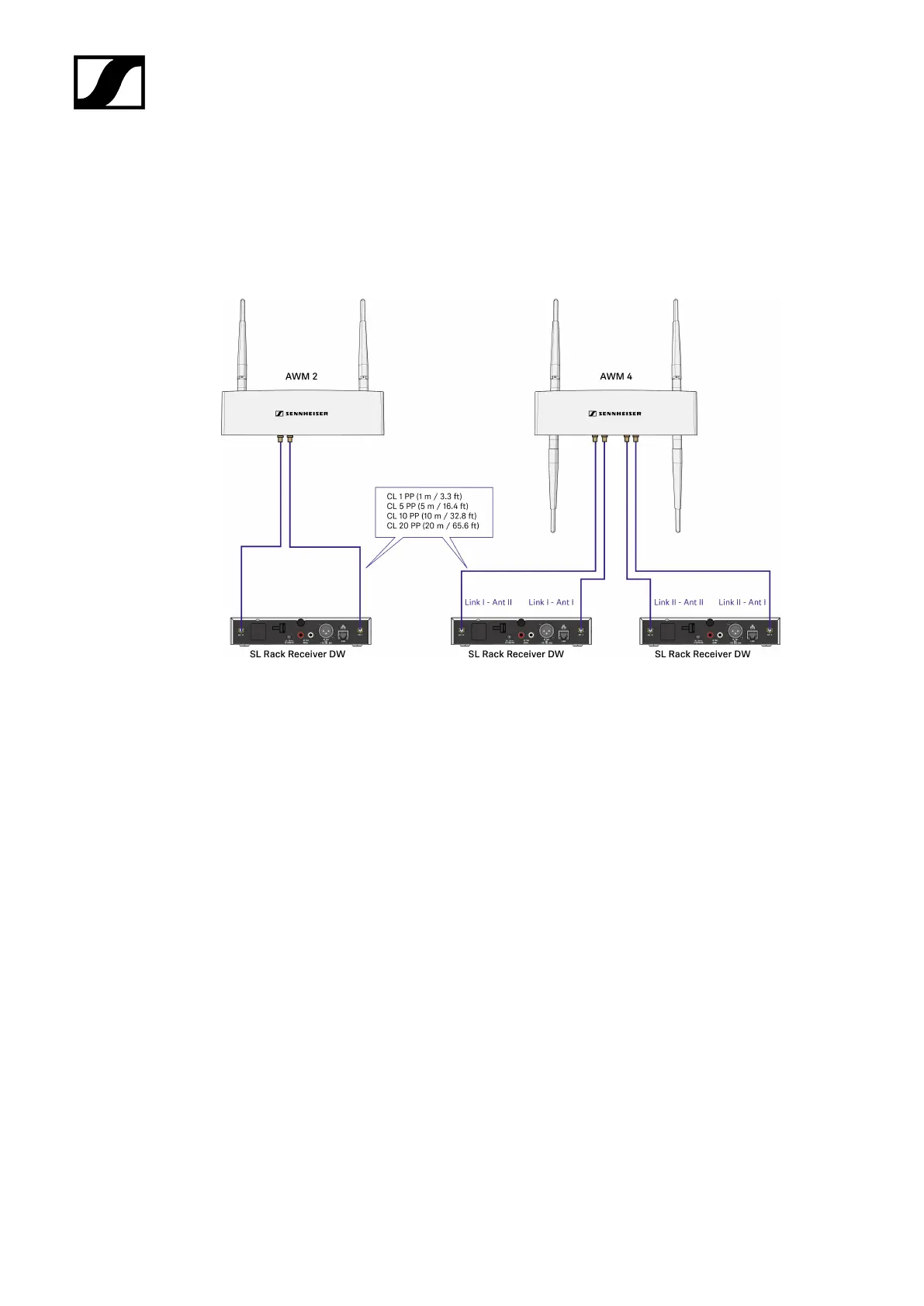

Option 1: Connecting the AWM 2 or AWM 4 antenna wall mount
directly to the receiver(s)
You can connect one receiver directly to one AWM 2 antenna wall mount or you can connect
two receivers directly to one AWM 4 antenna wall mount.
Observe the following information when using extension cables:
Signal loss due to extension cables
In this scenario, using extension cables for remote antenna mounting results in a loss of
transmission power, depending on the cable length.
You can compensate this signal loss by configuring the transmission power of the receiver
accordingly.
Observe the following minimum transmission power settings (SL Rack Receiver DW: System
Settings menu -> RF Power) for the respective cable lengths:
• Cable length of 5 m -> at least level 1
• Cable length of 10 m -> selected level +1, at least level 2
• Cable length of 20 m -> selected level +1, at least level 3
• Cable length of 25 m and longer -> selected level +2, at least level 4
