The SL PASC 4 passive antenna splitter/combiner
The SL PASC 4 is a passive four-way true diversity antenna splitter/combiner for the
SpeechLine Digital Wireless microphone series. It is used to distribute the antenna signals
from up to 4 SpeechLine Digital Wireless radio links. In combination with the AWM 2 or AWM
4 remote antennas, the number of required antenna cables is reduced to a minimum. The
rack receivers are connected to the SL PASC 4 using the supplied SMA-R cables.
Related information
Connectors on the rear of the device
Installing antenna splitters in a rack
Connectors on the rear of the device

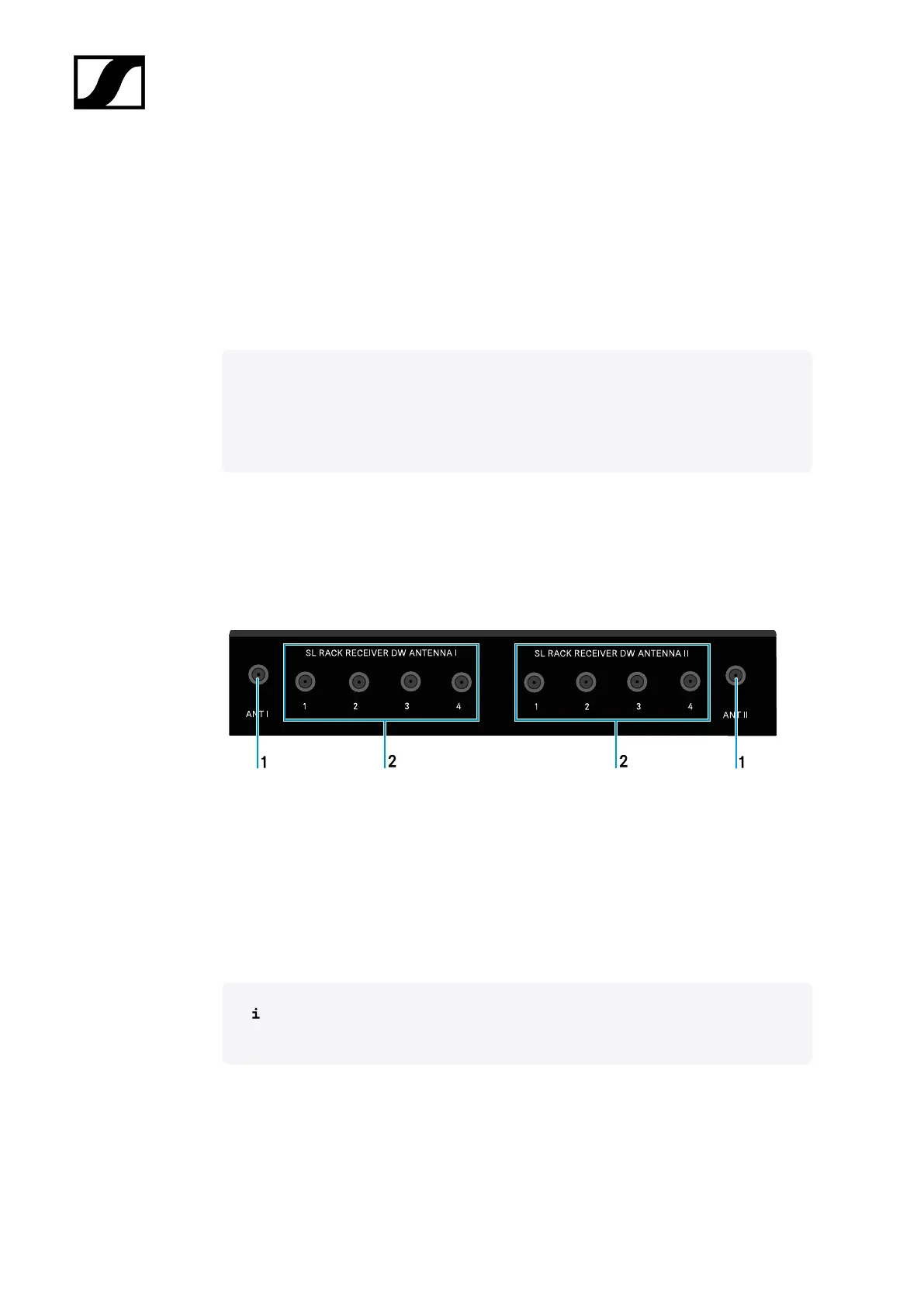

Product overview – SL PASC 4 rear panel
1 R-SMA output sockets ANT I and ANT II
• for connecting the antennas (AWM 2 or AWM 4)
2 R-SMA input sockets SL RACK RECEIVER DW ANTENNA I and SL RACK RECEIVER
DW ANTENNA II
• for connecting the receivers
You can find more information on wiring in the chapter Option 2: Combining
multiple links to one AWM 2/AWM 4.
