| 4 - Instruction manual

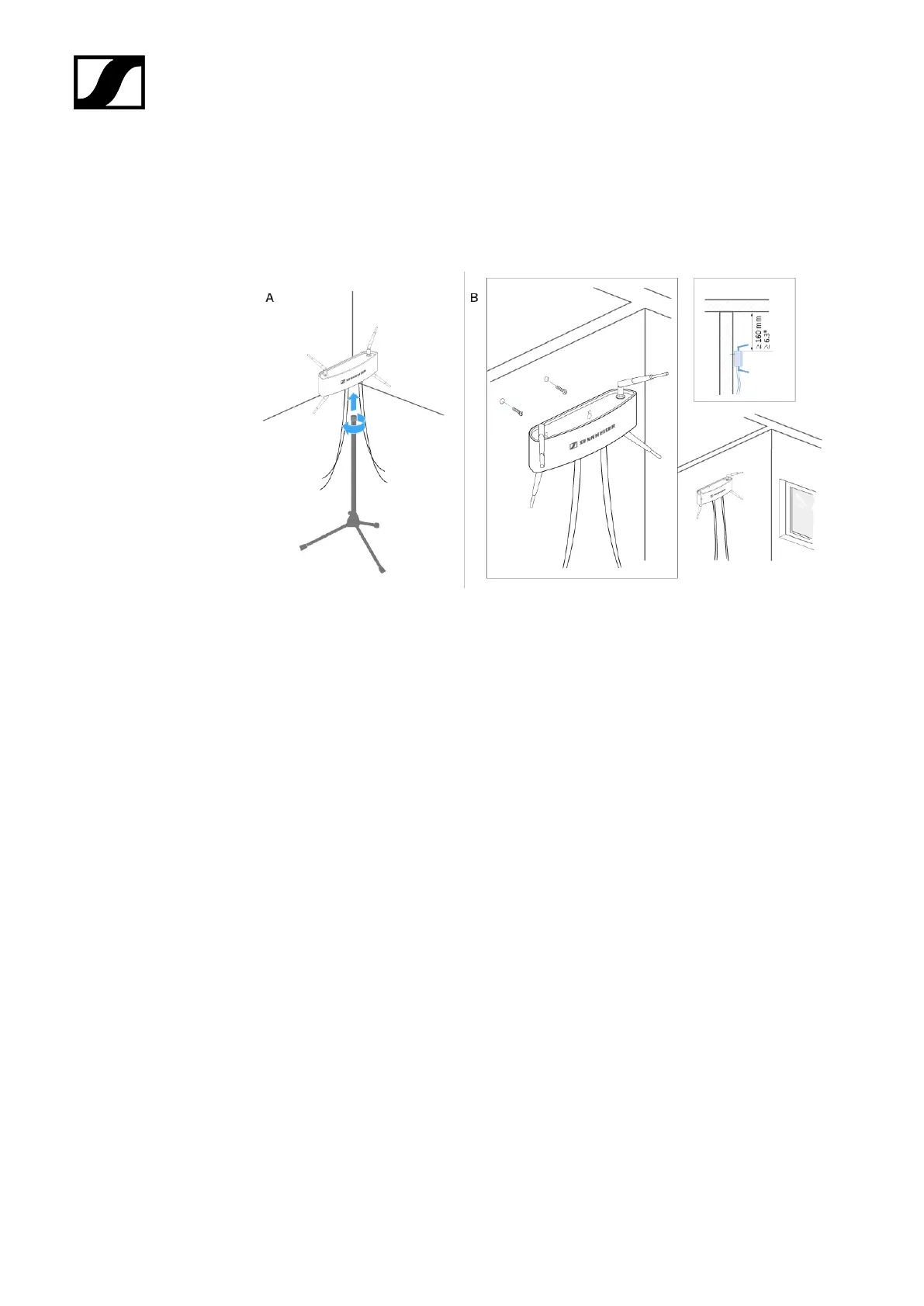

Mounting the antenna on a stand or on the wall

▷ You can either screw the AWM 2 and AWM 4 onto a standard microphone stand or use

the existing holes in the housing to mount it on the wall as shown.

253
