| 4 - Instruction manual

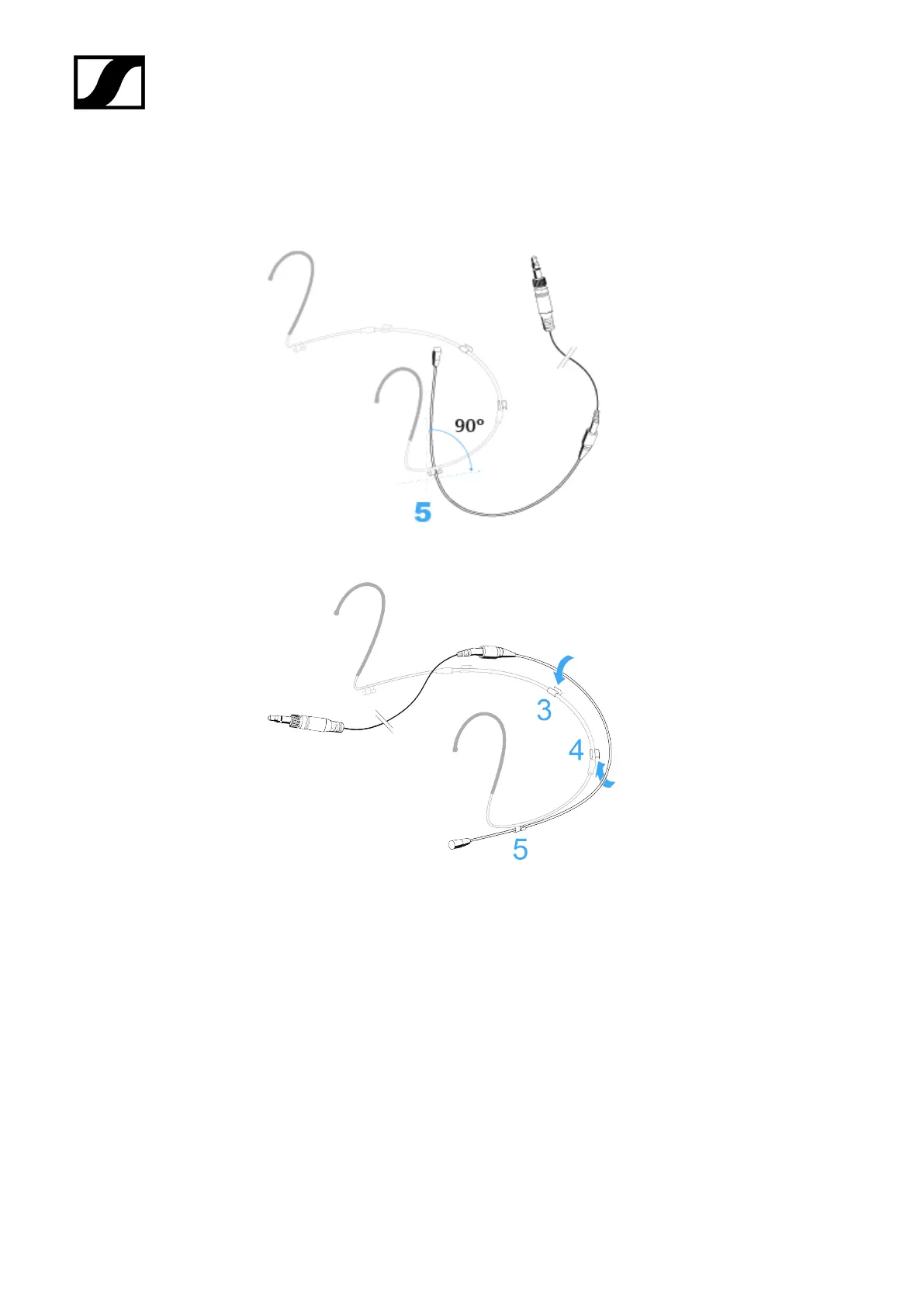

To reattach the microphone boom:

▷ First attach the end of the microphone boom where the microphone capsule is ﬁtted

to the clip 5 on the desired side of the neckband.

▷ Press the microphone boom into the two clips 3 and 4.
