| 4 - Instruction manual

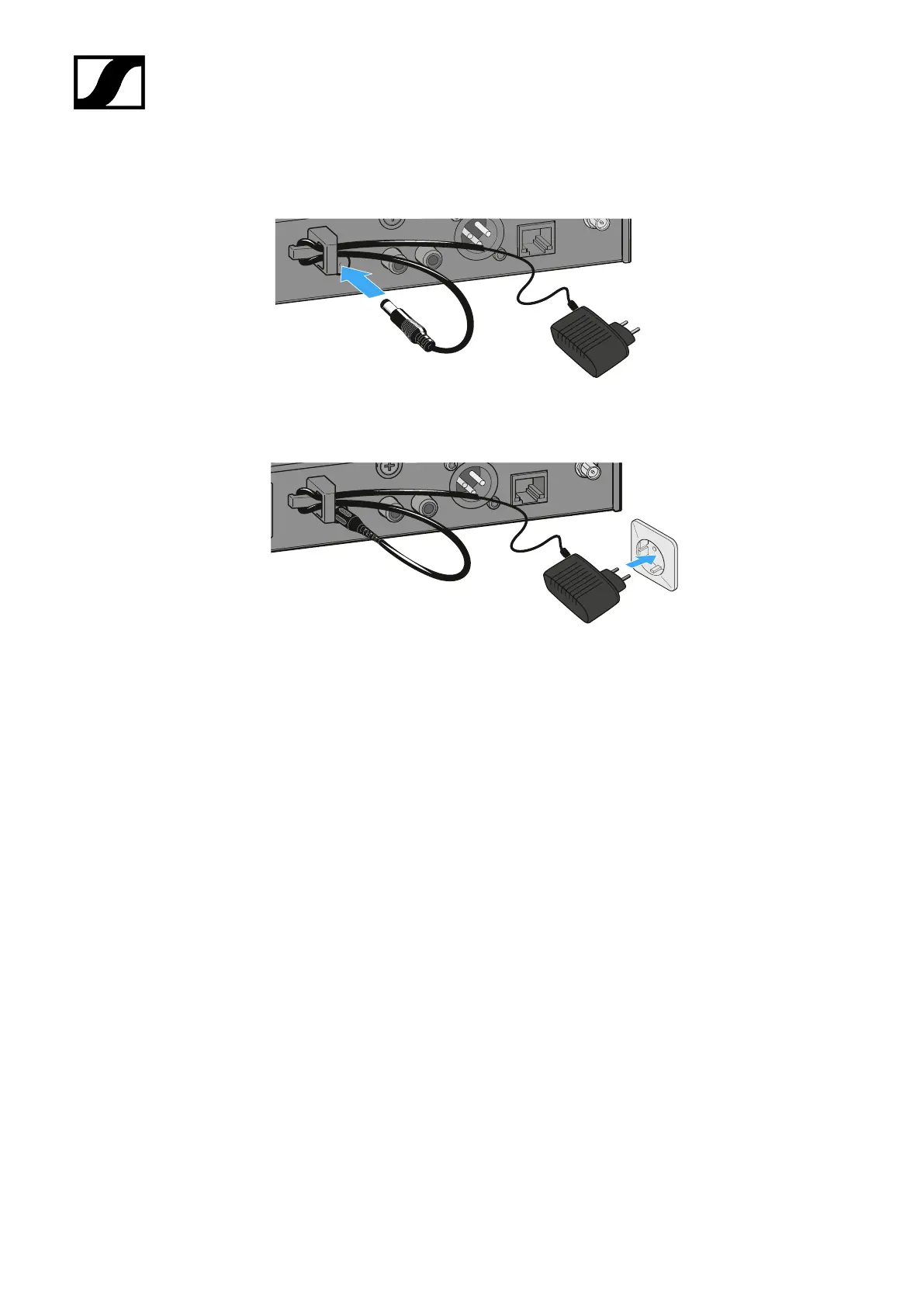

▷ Connect the hollow jack plug of the power supply unit to the DC IN socket of the

receiver.

▷ Plug the power supply unit into the wall socket.
