SGM Technology for lighting GB
Pilot 3000 Us
er’s Manual 1.00
- 101 -

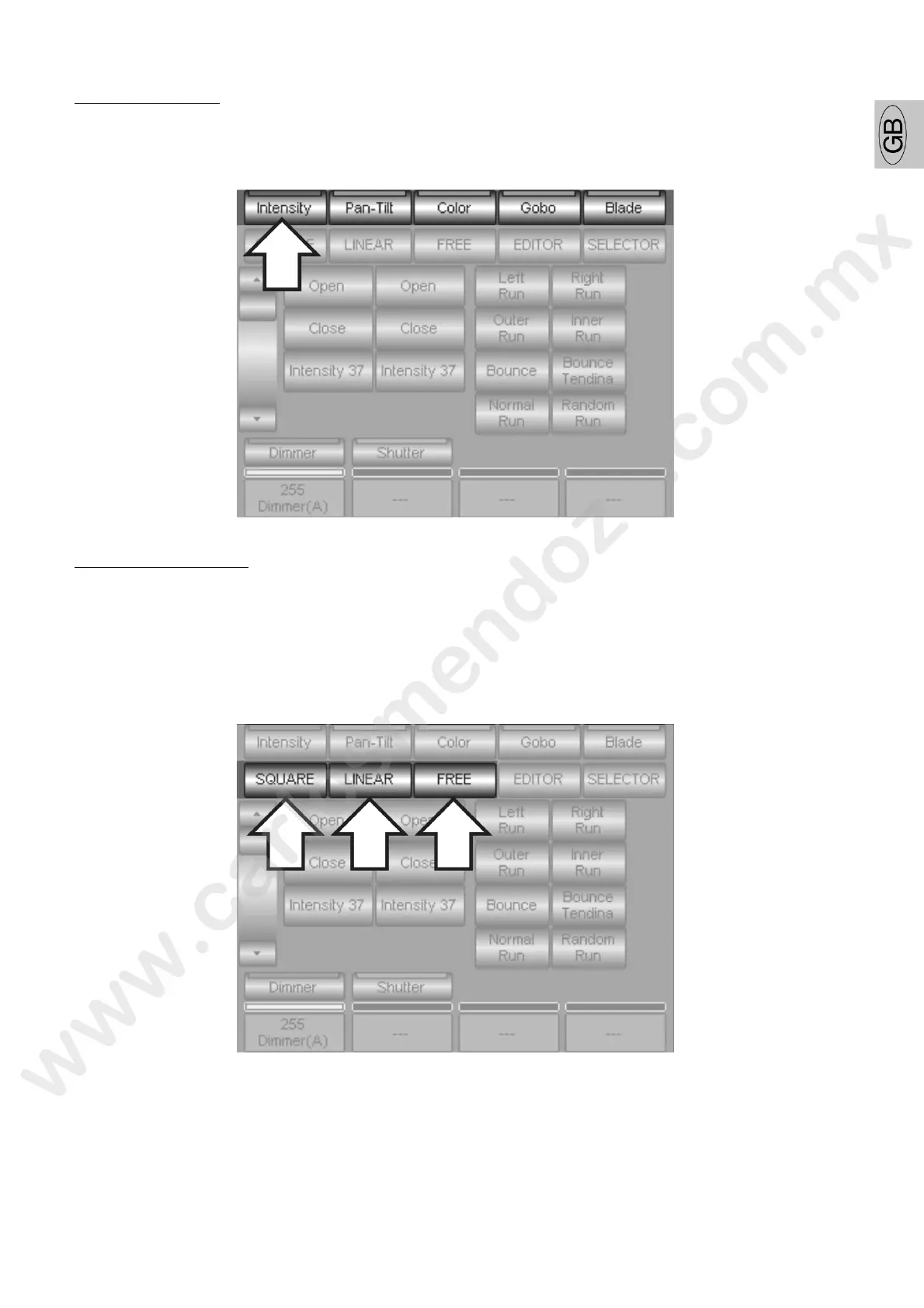

Palette Selection bar
The bar for the Palette selection allows to choose the family of the Attribute to which you desire to apply an
effect. Please notice that the “Prism” family is missing as Pilot 3000 does not allow the application of the
Prism type Attributes.
Oscillator application bar
It is a set composed by three main keys deciding the application or the removal of the oscillator type to the
Attribute chosen.
SQUARE: when pressed it associates the square sha ed oscillator to the Attribute desired
LINEAR: when pressed it associates the linear shape oscillator to the Attribute desired
FREE: when pressed it removes the eventual o cilla or applied to an Attribute
