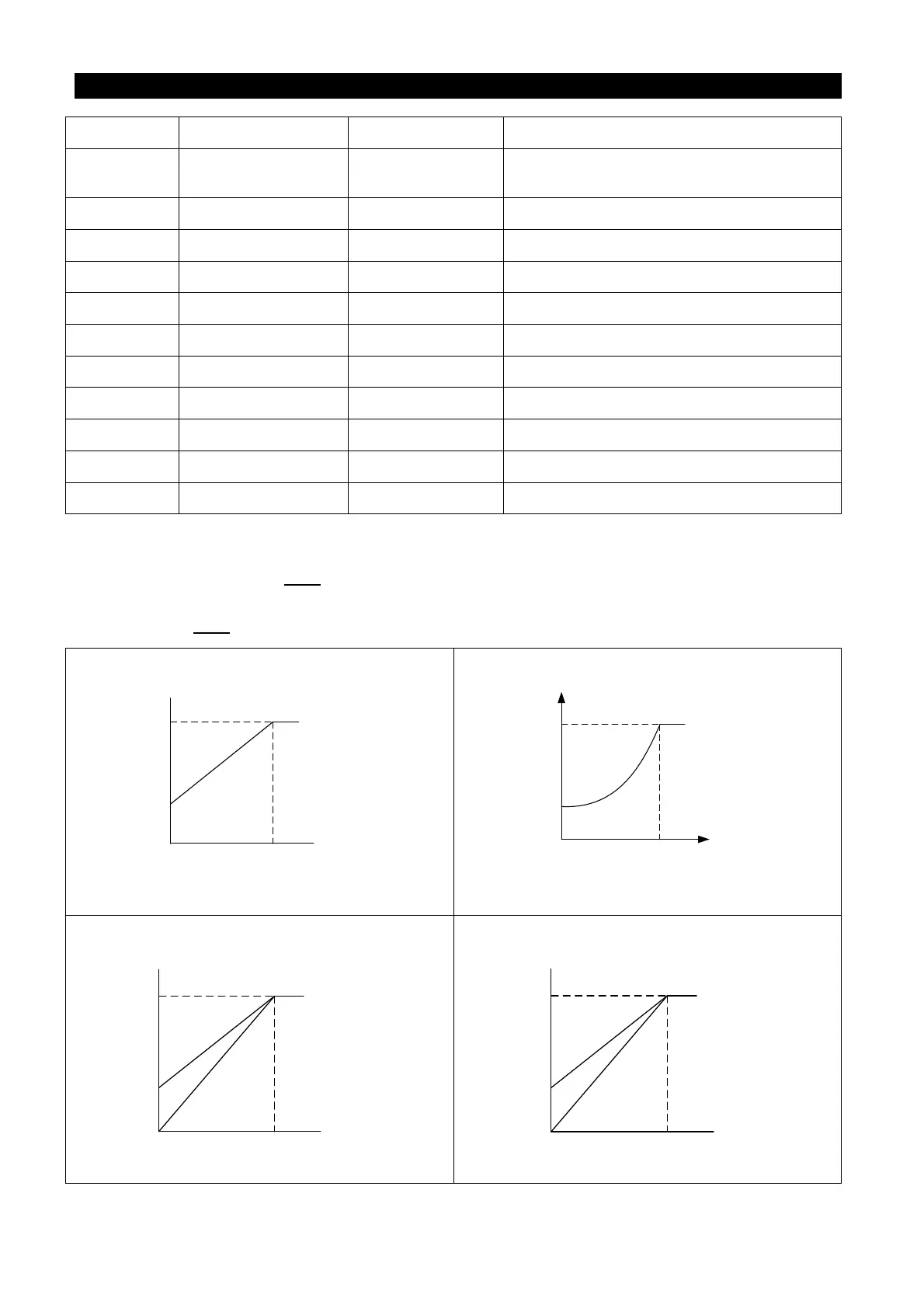

Shihlin electric SF-GT Series User Manual

Parameter Description
Parameters
65
Parameter Factory setting Setting range Remarks
14 0 0~13
P.14=4~13 are different VF curve
options.
98 3Hz 0~650Hz
---
99 10% 0~100%
---
162 99999 0~650Hz, 99999
---
163 0% 0~100%
---
164 99999 0~650Hz, 99999
---
165 0% 0~100%
---
166 99999 0~650Hz, 99999
---
167 0% 0~100%
---
168 99999 0~650Hz, 99999
---
169 0% 0~100%
---
<Setting>
• If P.14=4, suppose that P.19=220V, P.98=5Hz and P.99=10%, when the inverter is running
at 5Hz, the output voltage equals P.19×P.99＝220V×10%＝22V.
• If RT is “on”, P.46 “The Second Torque Boost” is valid.
P.14=0
Output frequency
P.0
0 P.3
Output voltage
P.19
Applicable to constant torque loads
(convey belt, etc.,)
P.14=1
P.0
0 P.3
P.19
Output voltage
Output frequency
Applicable to variable torque loads
(Fans and pumps, etc.)
P.14=2
P.0
0 P.3
P.19
Forward rotating
Reversely rotating
Output voltage
Output frequency
Ascending / descending loads
P.14=3
P.0
0 P.3
P.19
Forward rotating
Reversely rotating
Output voltage
Output frequency
Ascending / descending loads
