Chapter 5: Assembly and Disassembly of Parts
SPD-M20A Service Manual
19

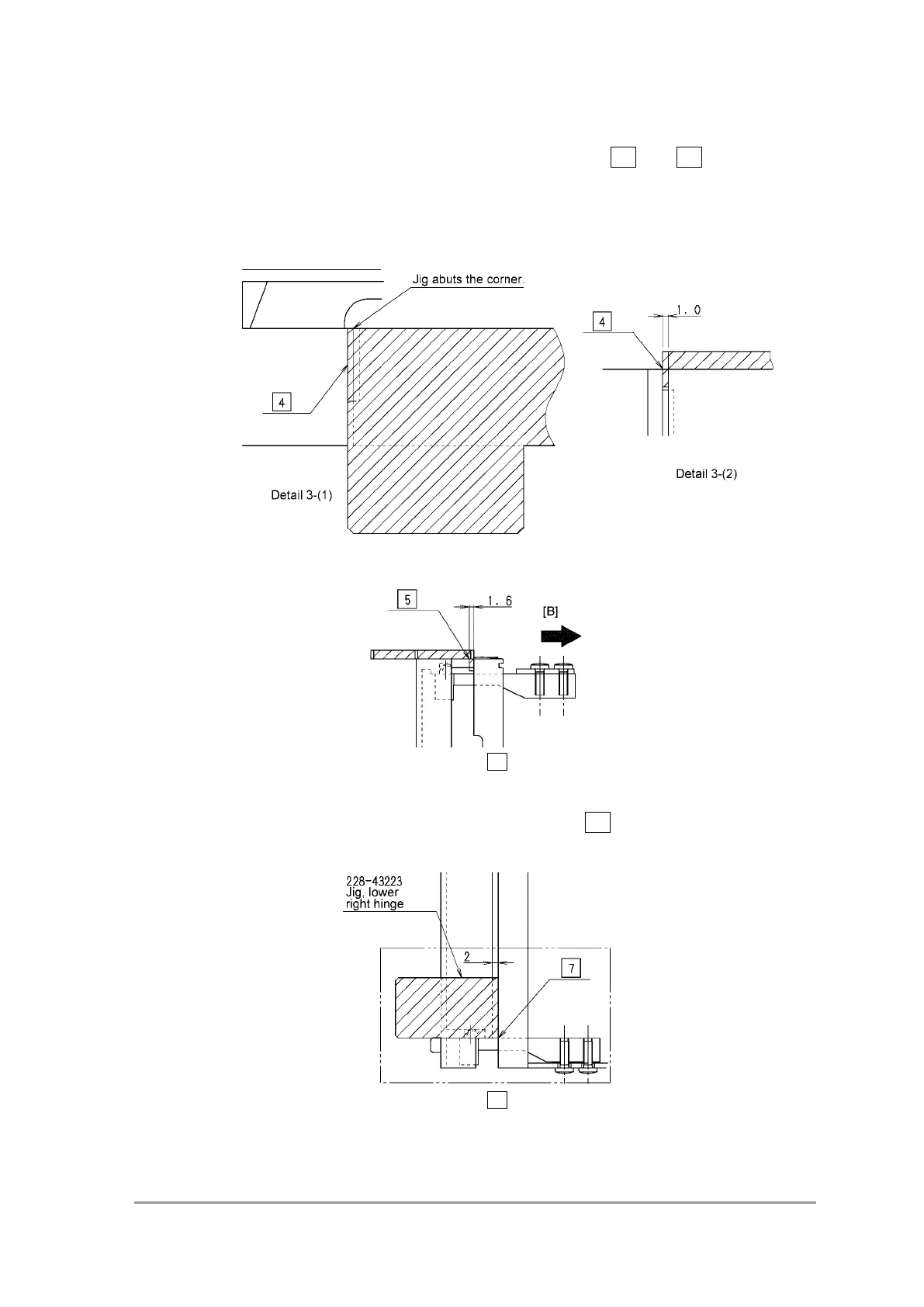

Attaching the upper right hinge
5) Insert the upper right hinge jig (P/N 228-43222-91) in 4 and 5 in the figure
below (hatched parts in the figures).
6) While pressing the right panel ASSY (right door) onto the jig, press the upper right
hinge in the direction of each screw [B][D], and hold while tightening the screws.
Detail 3-(1)/(2)
Detail 5
Attaching the lower right hinge
7) Insert the lower right hinge jig (P/N 228-43223) in 7 of the diagram below
(hatched parts in the diagram).
Detail 7
To Next Page
