Hardware installation GettinG started

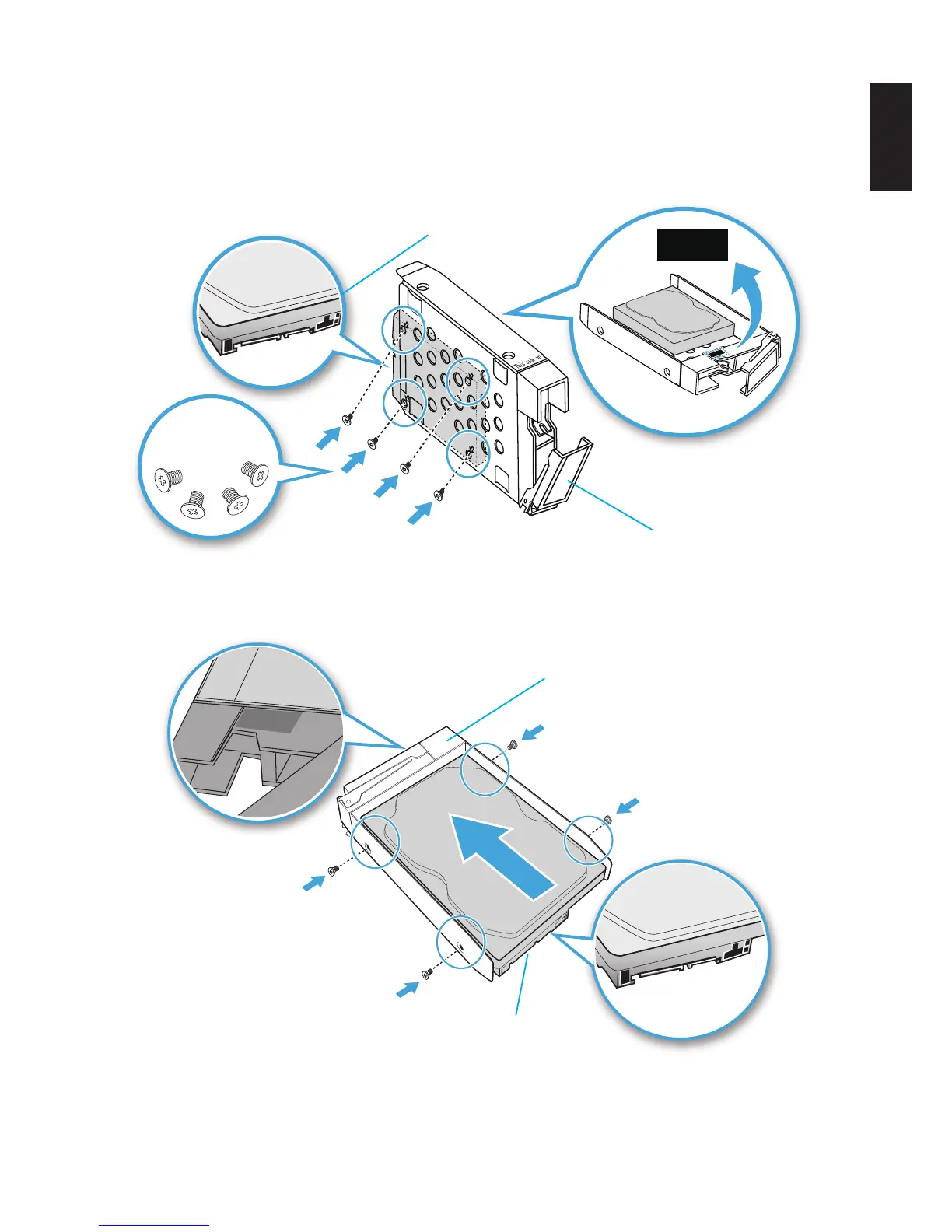

7. Position the HDD as indicated in the following illustration.
Make sure the new HDD is facing up and the connectors are positioned outward.
8. Insert the new HDD into the tray..
9. Secure with the provided screws.
SA AT
Conn.
2.5”
2.5” Screws
x 4
2.5” HDD
2.5” HDD
HDD1
HDD1
HDD connectors
Front side
Securing the 2.5” HDD
HDD1
Front side
HDD connectors
Securing the 3.5” HDD
