3.4.1 FX3-CPU0 main module
Overview
T
he FX3-CPU0 main module is the CPU for the entire system. It is where all signals are
monitored and their logic is processed on the basis of the configuration stored in the
system plug. The system outputs are switched further to the processing of the signals.
The FLEXBUS+ internal bus provides the data interface.
Prerequisites
•
T
he main module can only be operated together with the FX3-MPL0 system plug.
FX3-CPU0 main module

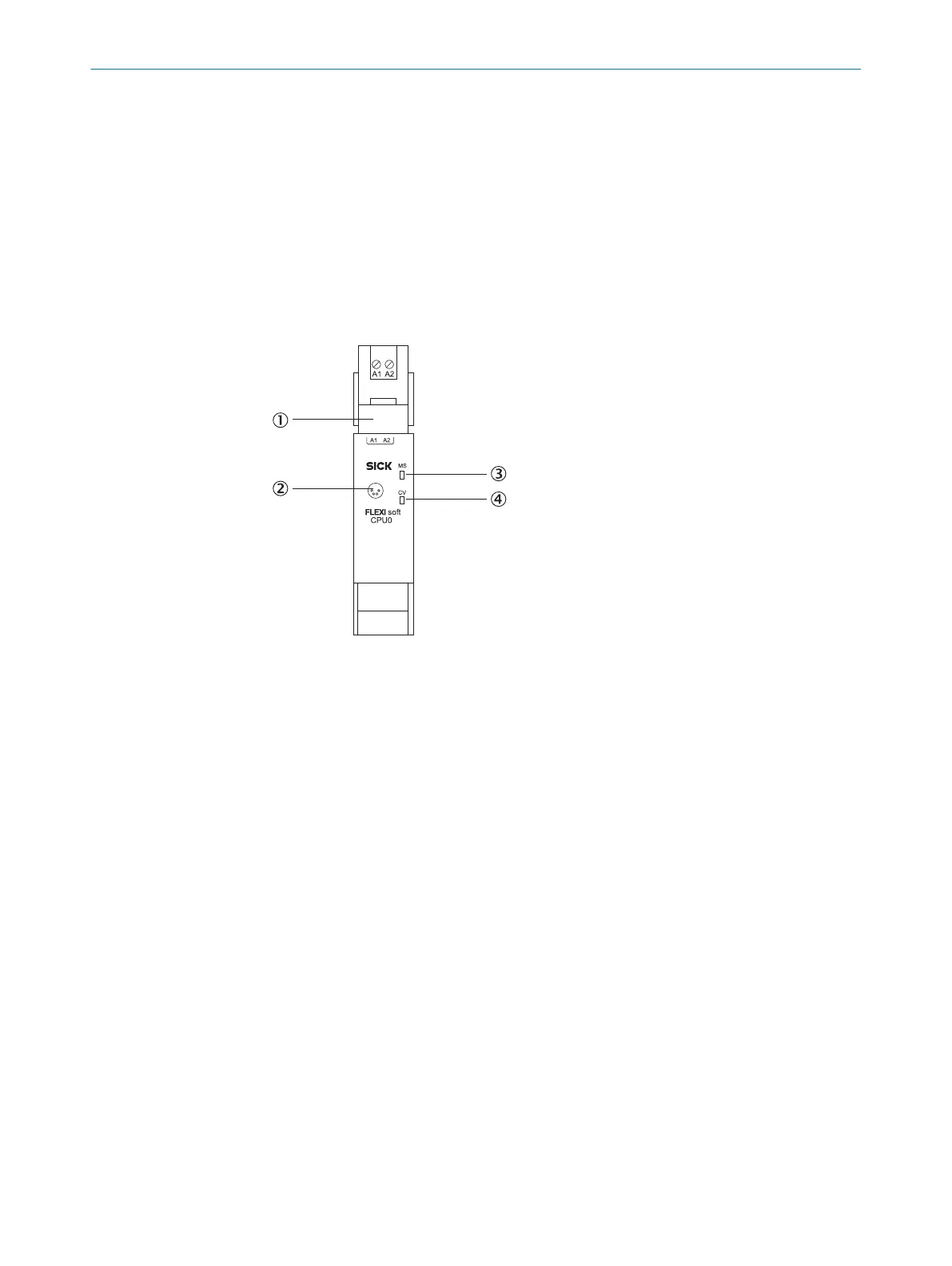

Figure 3: FX3-CPU0 main module
1
FX3-MPL0 system plug
2
RS-232 interface
3
MS LED (Module Status)
4
CV LED (Configuration Verified)
3.4.2 FX3-CPU1 main module
Overview
T
he functions of the FX3-CPU1 main module are the same as those of the FX3-CPU0
main module.
Additionally, this module has 2 EFI interfaces. When EFI-enabled devices are con‐
nected, the following functions are supported:
•
Transfer configuration to the connected EFI-enabled devices
•
Import configuration from the connected EFI-enabled devices
•
Diagnose the connected EFI-enabled devices
•
Exchange process data between main module and EFI-enabled devices
•
Connect up to four FX3-CPU1 main modules to form a Flexi-Link system
Prerequisites
•
T
he main module can only be operated together with the FX3-MPL0 system plug.
3 P
RODUCT DESCRIPTION
20
O P E R A T I N G I N S T R U C T I O N S | Flexi Soft Modular Safety Controller 8012478/1IG6/2023-02-24 | SICK
Subject to change without notice
