SICK FX0-GMOD User Manual

FX3-CPU2 main module

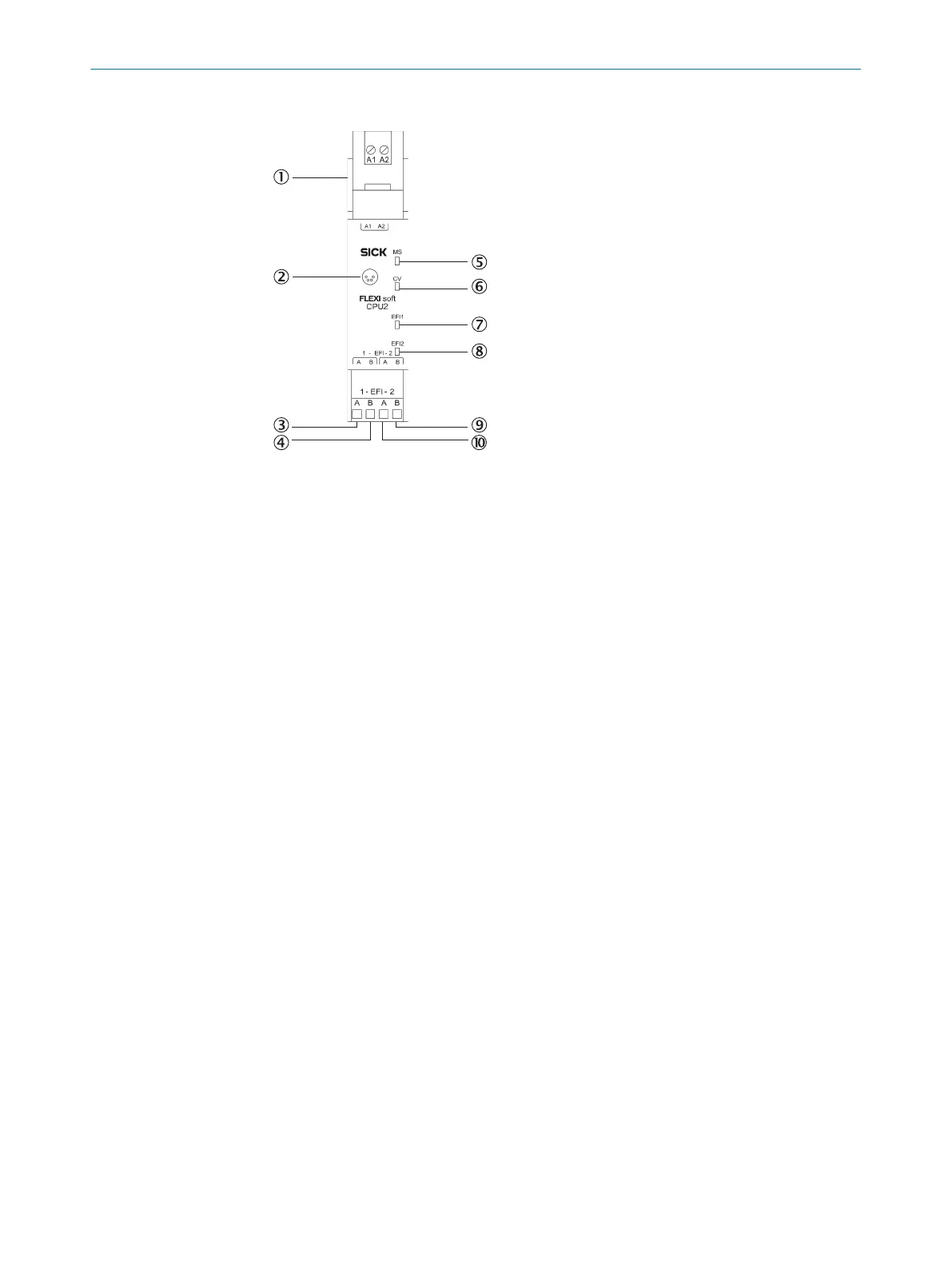

Figure 5: FX3-CPU2 main module
1
FX3-MPL1 system plug
2
RS-232 interface
3
EFI1_A
4
EFI1_B
5
MS LED (Module St
atus)
6
CV LED (Configuration Verified)
7
EFI1 LED
8
EFI2 LED
9
EFI2_B
ß
EFI2_A
Further topics
•
A
CR: "Automatic configuration recovery (ACR)", page 47 and “Flexi Soft in Flexi
Soft Designer configuration software” operating instructions.
3.4.4 FX3-CPU3 main module
Overview
T
he functions of the FX3-CPU3 main module are the same as those of the FX3-CPU2
main module.
This module also has a Flexi Line interface to support the safe networking of up to 32
Flexi Soft stations.
Prerequisites
•
T
he main module can only be operated together with the FX3-MPL1 system plug.
3 P
RODUCT DESCRIPTION
22
O P E R A T I N G I N S T R U C T I O N S | Flexi Soft Modular Safety Controller 8012478/1IG6/2023-02-24 | SICK
Subject to change without notice
