NOTE
Use of t
hetest outputs
The FX3-XTIOhas two test outputs.
•
For each device to be tested, one test output must be used of the same module to
which the device is connected.
•
If the device to be tested is connected to an odd-numbered input (I1, I3, I5, I7),
then test output X1 mustbe used. If the device to be tested is connected to an
even-numbered input (I2, I4, I6, I8), then test output X2 mustbe used.
5.2.5 FX3-XTDI I/O module

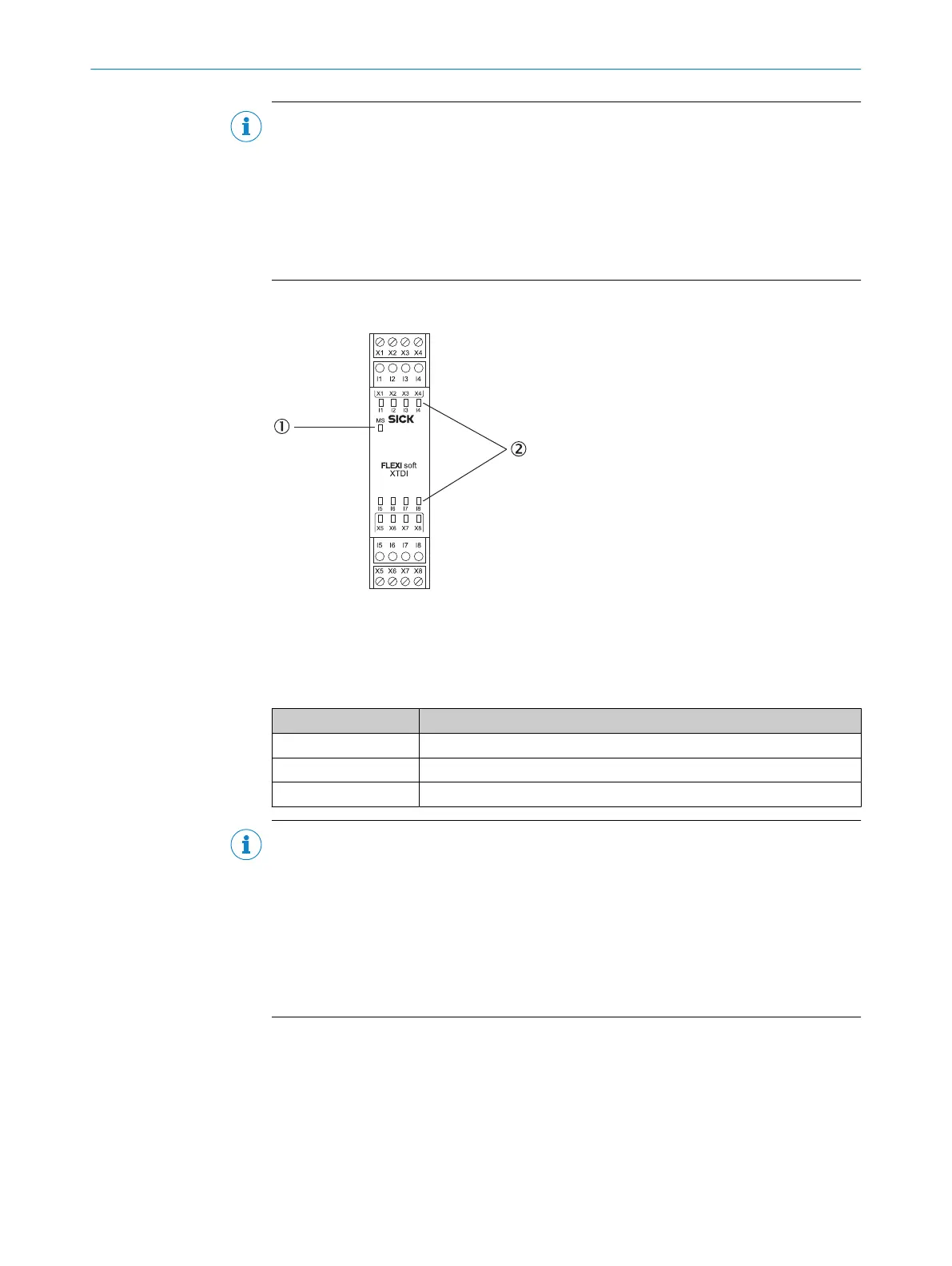

Figure 32: FX3-XTDI I/O module
1
MS LED (Module St
atus)
2
8 input LEDs
Table 22: Pin assignment for the FX3-XTDI I/O module
Terminal Pin assignment
I1 … I8 Safety inputs 1 to 8
X1/X3/X5/X7 Test output 1 (test signal generator 1)
X2/X4/X6/X8 Test output 2 (test signal generator 2)
NOTE
Use of t
hetest outputs
The FX3-XTDIhas eight test outputs.
•
For each device to be tested, one test output must be used of the same module to
which the device is connected.
•
If the device to be tested is connected to an odd-numbered input (I1, I3, I5, I7),
then an odd-numbered test output (X1, X3, X5, X7) mustbe used. If the device
to be tested is connected to an even-numbered input (I2, I4, I6, I8), then an
even-numbered test output (X2, X4, X6, X8) mustbe used.
ELECTRICAL INSTALLATION 5
8012478/1IG6/2023-02-24 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi Soft Modular Safety Controller
57
Subject to change without notice
