SICK FX0-GMOD User Manual

1× M12, female con‐
nec
tor, 8-pin
Micro D-sub male connector of the FX3-MOCx Wiring
PIN PIN Designation SSI encoder
5 3 ENC1_C+ Clock+
6 11 ENC1_C– Clock-
7 12 ENC_0V GND connection for
encoder
8 4 ENC1_24V 24V voltage supply for
encoder
Further topics
•
"FX3-MOCx mo
tion control module", page 59
•
"Accessories for the motion control module", page 182
5.2.12 FX3-ANA0 analog input module
1
2
3

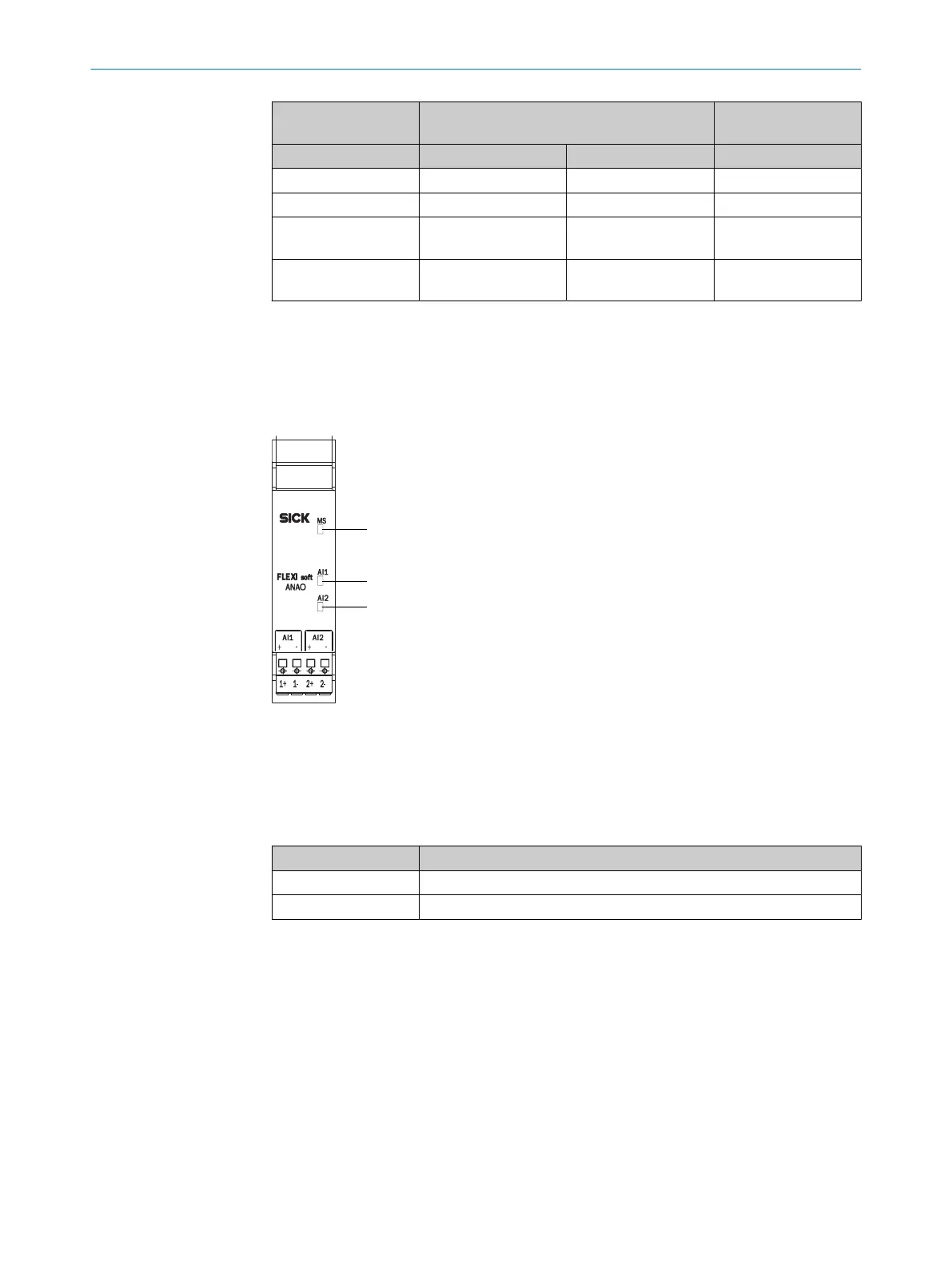

Figure 43: FX3-ANA0 analog input module
1
MS LED (module status)
2
LED AI1
3
LED AI2
Table 46: Pin assignment for the FX3-ANA0 analog input module
Terminal Pin assignment
1+, 1– Analog input AI1
2+, 2– Analog input AI2
5 ELECTRICAL INSTALLATION
74
O P E R A T I N G I N S T R U C T I O N S | Flexi Soft Modular Safety Controller 8012478/1IG6/2023-02-24 | SICK
Subject to change without notice
