5.2.2 FX3-CPU1 and FX3-CPU2 main modules

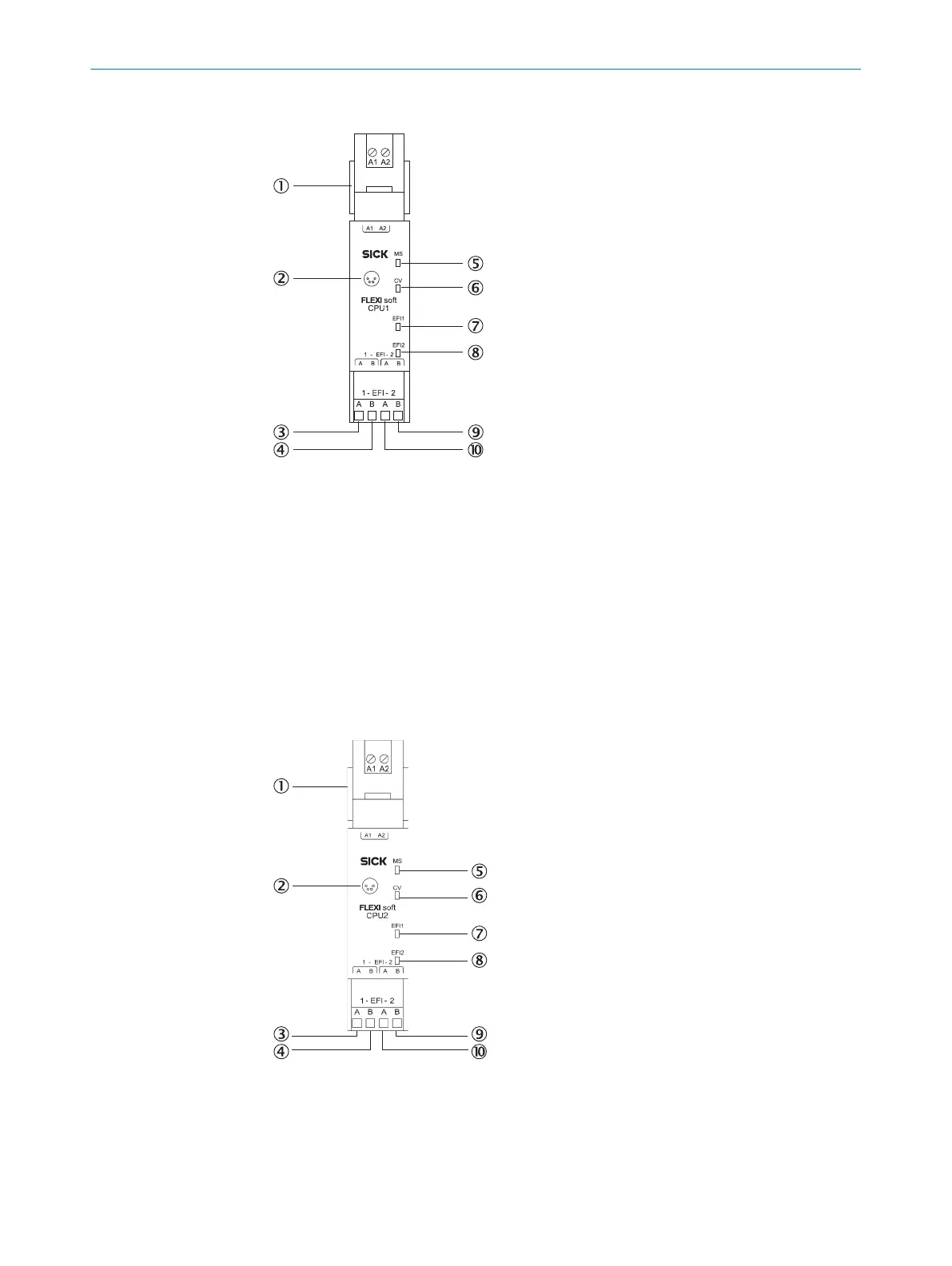

Figure 28: FX3-CPU1 main module
1
FX3-MPL0 system plug
2
RS-232 interface
3
EFI1_A
4
EFI1_B
5
MS LED (Module Status)
6
CV LED (Configuration Verified)
7
EFI1 LED
8
EFI2 LED
9
EFI2_B
ß
EFI2_A
Figure 29: FX3-CPU2 main module
1
FX3-MPL1 system plug
2
RS-232 interface
3
EFI1_A
4
EFI1_B
5 ELECTRICAL INSTALLATION
54
O P E R A T I N G I N S T R U C T I O N S | Flexi Soft Modular Safety Controller 8012478/1IG6/2023-02-24 | SICK
Subject to change without notice
