Important information
WARNING
Ine
ffectiveness of the protective device due to undetected short-circuits between the
test pulse generators
The dangerous state may not be stopped or not be stopped in a timely manner in the
event of non-compliance.
►
Rule out short-circuits between the odd-numbered test outputs X1, X3, X5 and X7
through suitable wiring (e.g. separate routing, protected cables).
►
Rule out short-circuits between the even-numbered test outputs X2, X4, X6 and X8
through suitable wiring (e.g. separate routing, protected cables).
►
Configure the test outputs of the Flexi Soft expansion modules with test pulse
widths ≤4ms and a test pulse interval ≥200ms.
Prerequisites
•
T
he module can only be operated with a main module.
I/O module FX3-XTDI
T
he voltage supply for the internal logic and the test outputs is provided via the system
plug and the internal FLEXBUS+ bus.

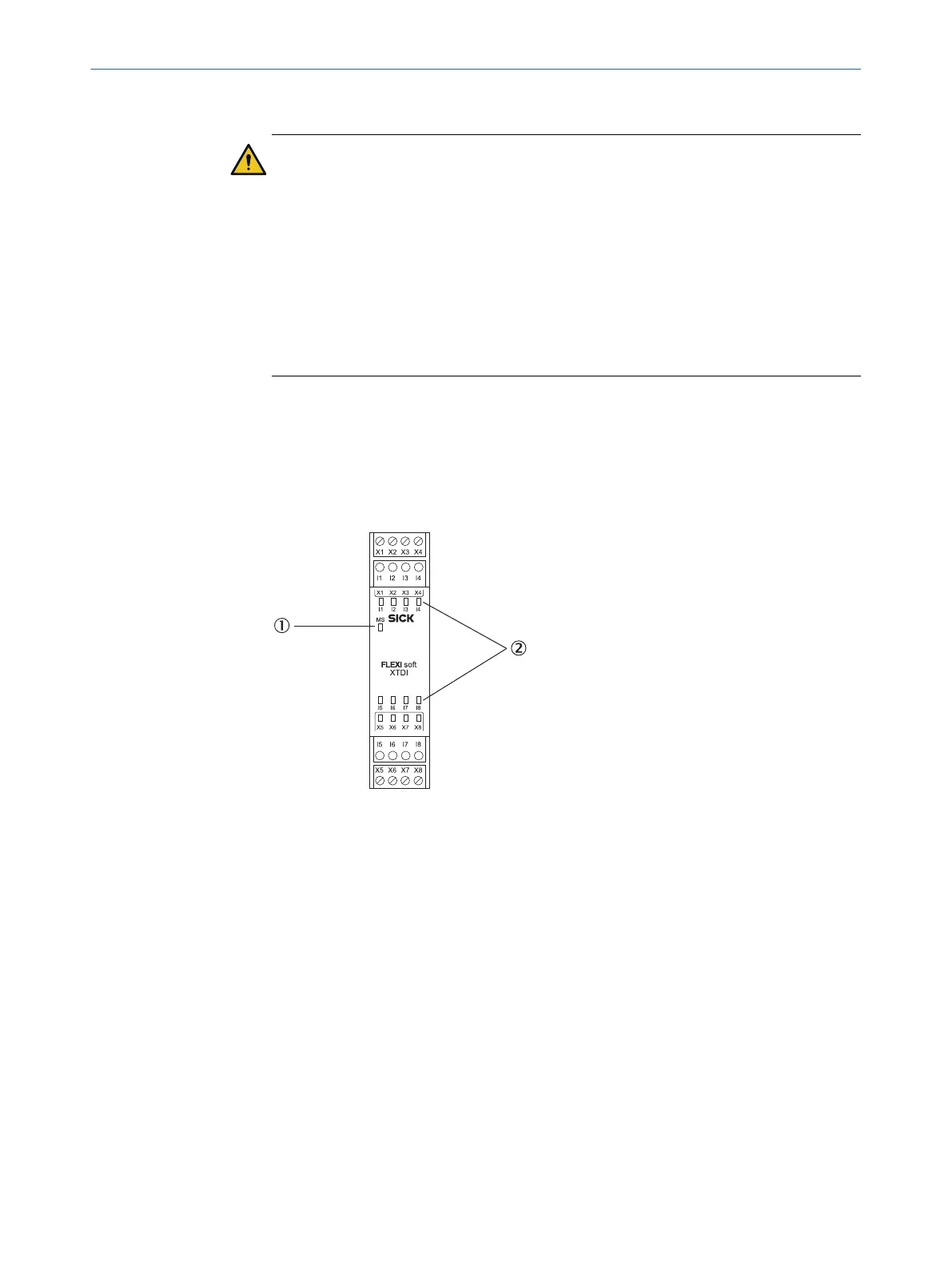

Figure 10: I/O module FX3-XTDI
1
MS LED (Module St
atus)
2
8 input LEDs
Further topics
•
"C
onstruction and function", page 17
•
"Connection of devices", page 77
PRODUCT DESCRIPTION 3
8012478/1IG6/2023-02-24 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi Soft Modular Safety Controller
29
Subject to change without notice
